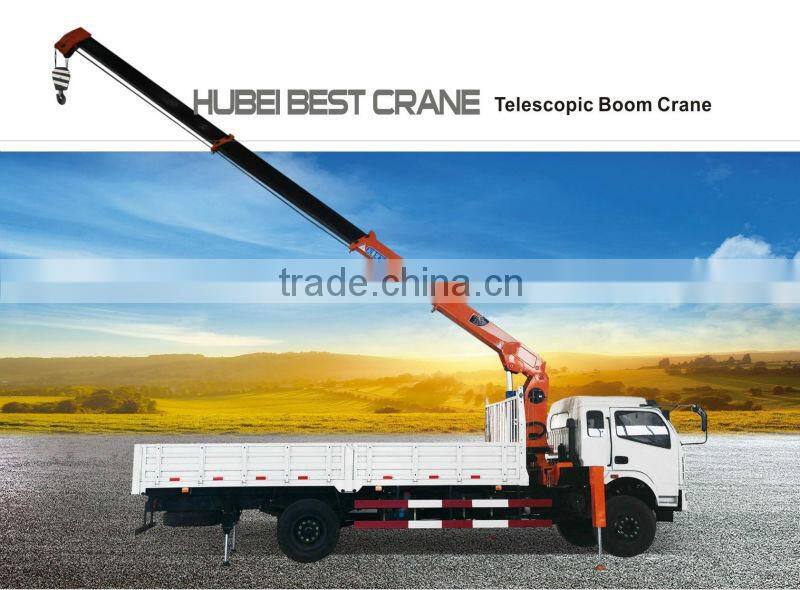

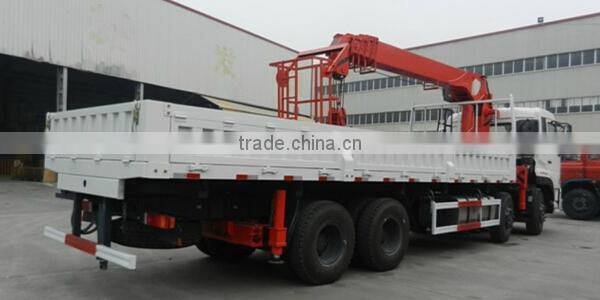

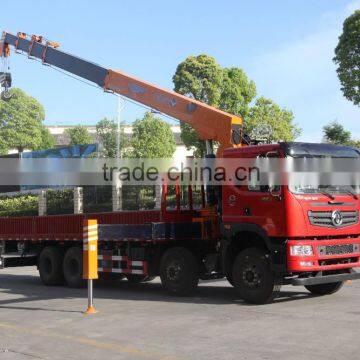

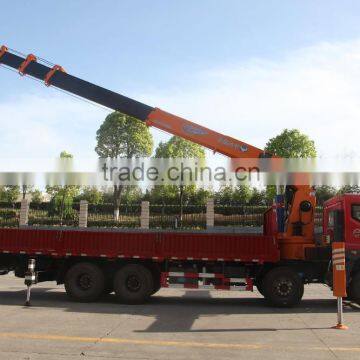

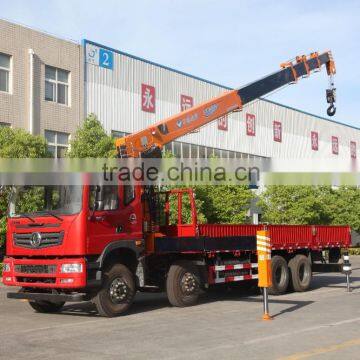

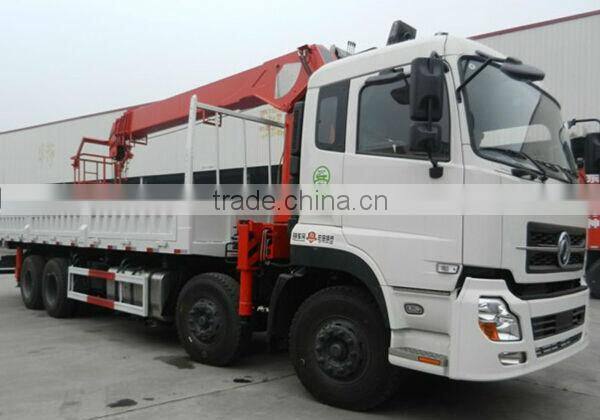

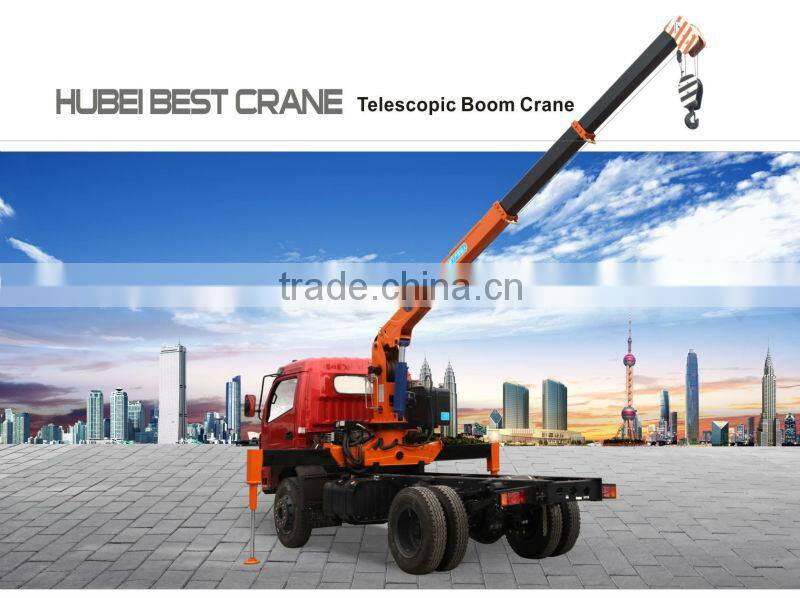

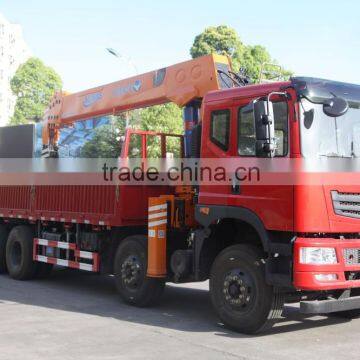

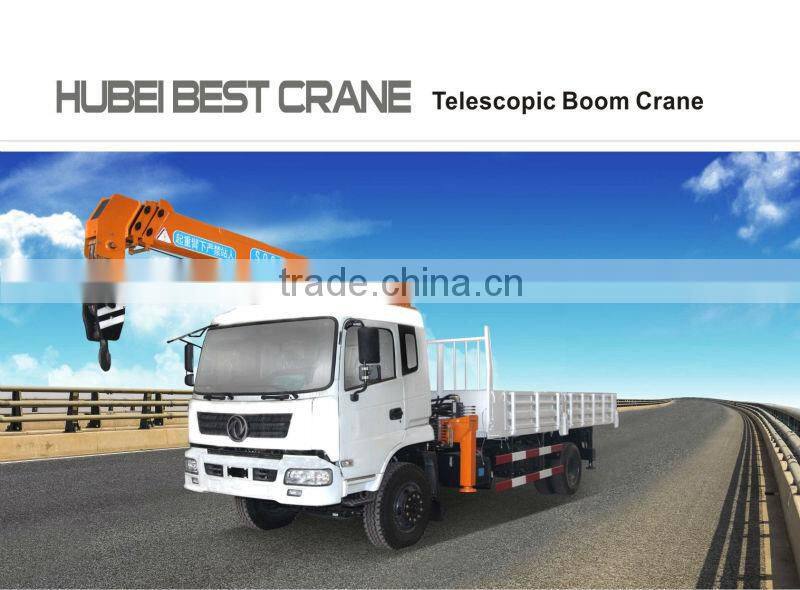

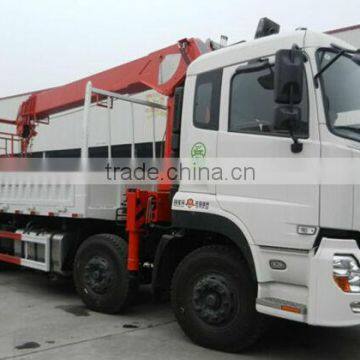

18 Ton Truck Mounted Crane SQ18S5 on Sale 450 Kn.m at 2.5 m Crane Truck High Quality
US$ 44,200 - 44,300
/ Set
1 Set(Min. Order)
- shanghai/tianjin/wuhan/guangzhou
- T/T
You May Like
-
5ton Crane With Straight Arms,SQ5S3, Hydraulic Crane on Truck.
-
14ton Quicklift Compact Cranes,SQ14S4, Hydraulic Truck Crane With Telescopic Booms.
-
Mini Telescopic Crane on Truck, SQ3.2S3, Truck Mounted Crane With Hydraulic Boom
-
20ton Crane With Telescope Arms, SQ20S5, Hydraulic Crane on Truck.
-
16ton Crane With Telescope Arms, SQ16S5, Hydraulic Crane on Truck.
-
12ton Crane With Telescope Arms, SQ12S4, Hydraulic Crane on Truck.
Product Details
| Condition | New | Application | Construction Industry | |
| Rated Lifting Moment | 450Kn.m | Max. Lifting Load | 18 ton at 2.5 m | |
| Max. Lifting Height | 20.1 m | Span | 2400-7270mm | |
| Place of Origin | Hubei, China | Brand Name | HBQZ | |
| Model Number | SQ18S5 | Certification | ISO9001:2008 TS16949 | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
THE PEFORMANCE ON CRANE MODEL NO SQ18S5
| Model # | SQ18S5 /telescopic crane 18 ton at 2.5 m |
| Max Lifting Moment | 450 Kn.m |
| Max Lifting Capacity (kg/m) | 18000/2.5 |
| 4500/6.0 | |
| 1450/12 | |
| 600/16.5 | |
| Max Lifting Height | 20.1 m |
| Working Radius | 20 m |
| Boom Section | 5 stages |
| Rotation Angle | 360º continuous |
| Working Pressure | 28 Mpa |
| Rated Oil Flow | 80L/min |
| Oil Tank Capacity | 200L |
| Wire Rope(Winch) | Φ14*150m |
| Swing Speed | 2rpm |
| Winch Type | Hydraulic |
| Swing Type | Planetary gear reduction. |
| Outrigger | 4,Extension, Hydraulic operating. |
| Outrigger Span | 2400-7270mm |
| Crane Weight | 7600 kg |
| Installation Space | 1550mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Automatic Swing Brake, Hook Safety Device. |
| Material | HG70 |
