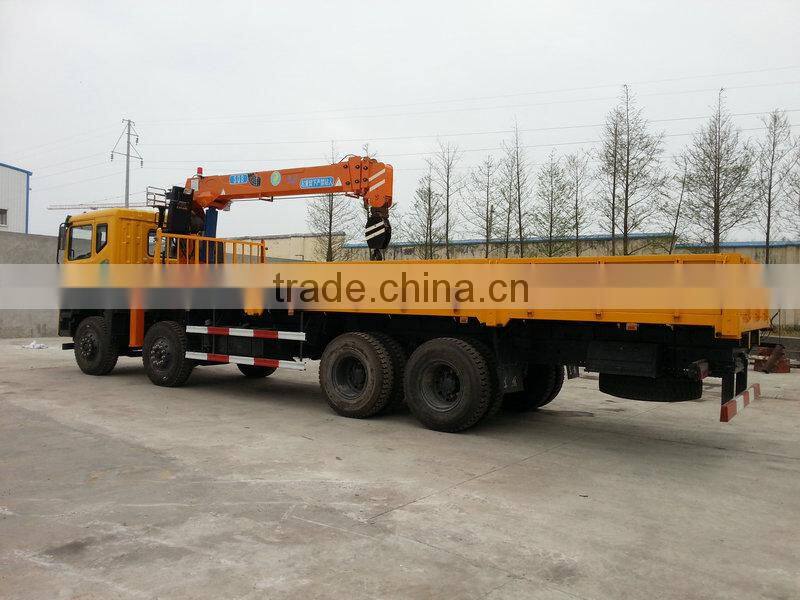

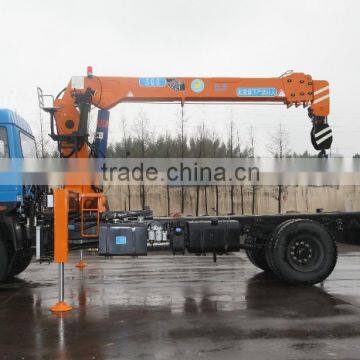

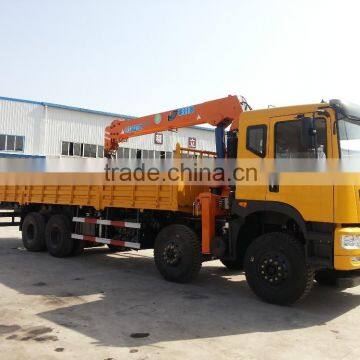

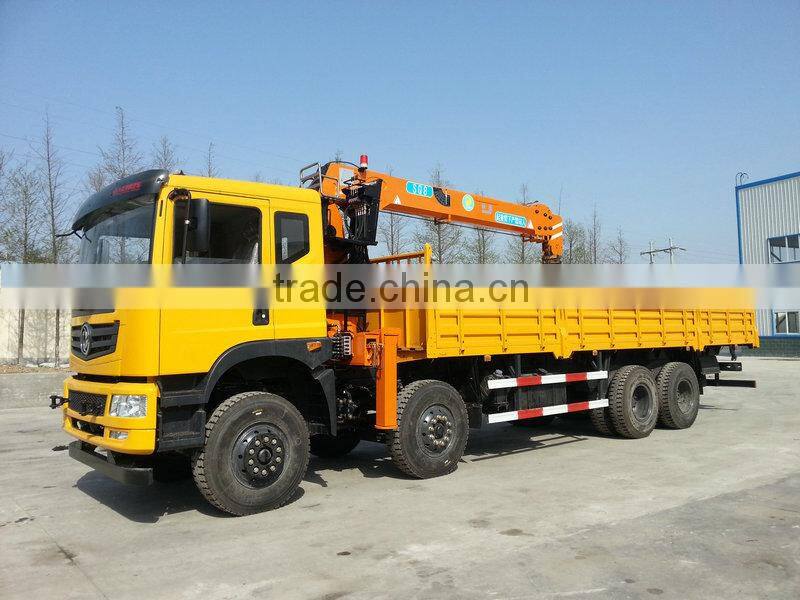

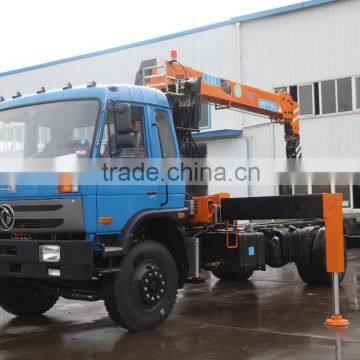

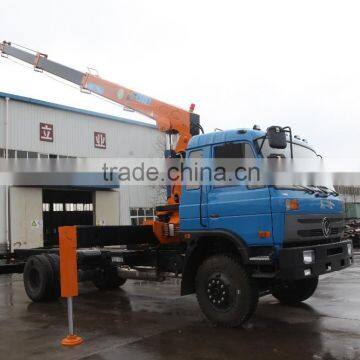

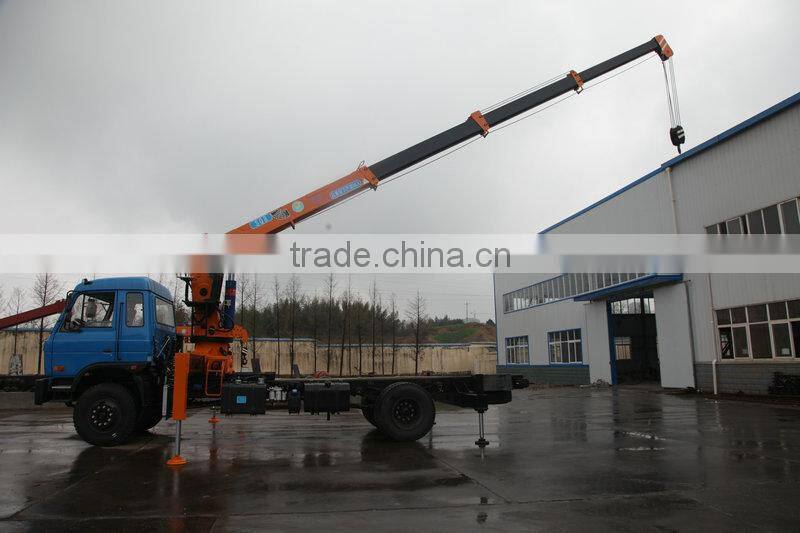

8 Ton at 2.5m, Truck Mounted Crane, SQ8S4, Best Telescoping Boom Truck Mounted Crane 8 Ton.

FOB Price

US$ 15,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	truck mounted crane
Rated Loading Capacity	4200kg	Rated Lifting Moment	200 Kn.m
Max. Lifting Load	8 ton at 2.5m	Max. Lifting Height	13.7m
Span	2200-5400mm	Place of Origin	Hubei, China
Brand Name	HUBEI HBQS	Model Number	SQ8S4
Certification	ISO9001:2008; TS16949	Warranty	one year
After-sales Service Provided	Overseas third-party support available

SQ8S4 (8T) Telescoping Boom Crane

Model #	SQ8S4
Max Lifting Moment	200 Kn.m
Max Lifting Capacity (kg/m)	8000/2.5
	3300/4.5
	1200/9.5
	600/12.5
Max Lifting Height	13.7 m
Working Radius	12.5 m
Boom Section	3 stages
Rotation Angle	360º continuous
Working Pressure	20 Mpa
Rated Oil Flow	63L/min
Oil Tank Capacity	200L
Wire Rope(Winch)	Φ12*100m
Swing Speed	2rpm
Winch Type	Hydraulic
Swing Type	Planetary gear reduction.
Outrigger	Extension, Hydraulic operating.
Outrigger Span	2200-5400mm
Crane Weight	4200 kg
Installation Space	1200mm
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device.

Telescoping Boom Truck Mounted Crane
Model #	SQ3.2S3	SQ5S3	SQ6.3S3	SQ8S4	SQ10S4	SQ12S4	SQ14S4	SQ16S5	SQ18S5	SQ20S5
Max Lifting Moment	80 Kn.m	125 Kn.m	160 Kn.m	200 Kn.m	250 Kn.m	300 Kn.m	350 Kn.m	400 Kn.m	450 Kn.m	500 Kn.m
Max Lifting Capacity	3.2 T	5 T	6.3 T	8 T	10 T	12 T	14 T	16 T	18 T	20 T
Max Lifting Height	10 m	11 m	11.5 m	13.7 m	14.7 m	17 m	18.6 m	20.1 m	20.1 m	20.1 m
Working Radius	7.4 m	9.4 m	10.1 m	12.5 m	13.7 m	15.5 m	16.5 m	20 m	20 m	20 m
Boom Section	3 stages	3 stages	3 stages	4 stages	4 stages	4 stages	4 stages	5 stages	5 stages	5 stages
Rotation Angle	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous	360º continuous
Working Pressure	16 Mpa	16 Mpa	16 Mpa	20 Mpa	20 Mpa	20 Mpa	20 Mpa	20 Mpa	20 Mpa	20 Mpa
Rated Oil Flow	30 L/min	50L/min	50L/min	63L/min	63L/min	80L/min	90L/min	90L/min	90L/min	90L/min
Outrigger Span	1750-3550mm	2215-5014mm	2215-5014mm	2200-5400mm	2200-5400mm	2298-5900mm	2190-5600mm	2190-5390mm	2400-7270mm	2400-7270mm
Crane Weight	1500 kg	2300 kg	3200 kg	4200 kg	4800 kg	5800 kg	6500 kg	6900 kg	7600 kg	8100 kg
Installation Space	800 mm	950mm	1100mm	1200mm	1300mm	1300mm	1450mm	1450mm	1450mm	1500mm
