Home > Products > Telescopic boom truck crane > 12ton Quicklift Compact Cranes,SQ12S4, Hydraulic Truck Crane With Telescopic Booms.

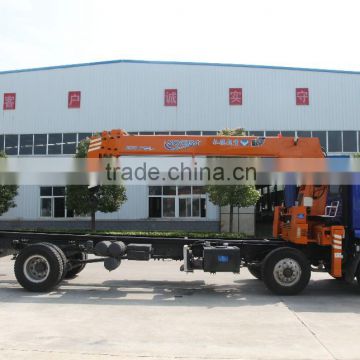

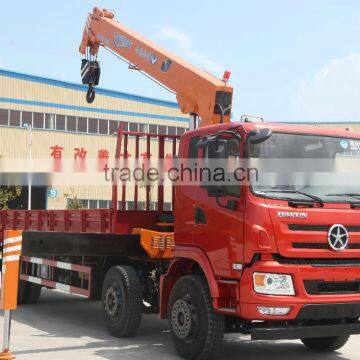

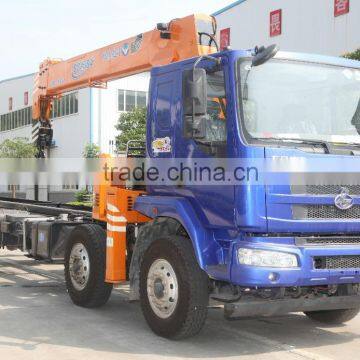

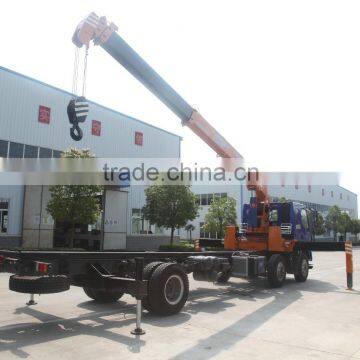

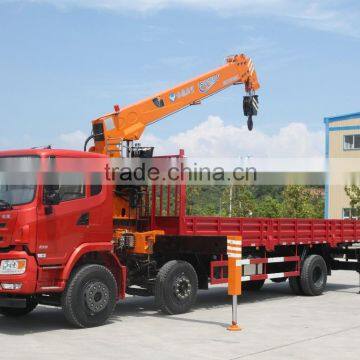

12ton Quicklift Compact Cranes,SQ12S4, Hydraulic Truck Crane With Telescopic Booms.
US$ 21,000 - 33,000
/ Set
1 Set(Min. Order)
- WUHAN SHANGHAI TIANJIN GUANGZHOU
- T/T Credit Card PayPal
You May Like
-
16ton Quicklift Compact Cranes,SQ16S5, Hydraulic Truck Crane With Telescopic Booms.
-
10ton Quicklift Compact Cranes,SQ10S4, Hydraulic Truck Crane With Telescopic Booms.
-
6.3ton Quicklift Compact Cranes, SQ6.3S3, Hydraulic Truck Crane With Telescopic Booms.
-
5ton Quicklift Compact Cranes, SQ5S3, Hydraulic Truck Crane With Telescopic Booms.
-
3.2ton Quicklift Compact Cranes, SQ3.2S3, Hydraulic Truck Crane With Telescopic Booms.
-
8ton Timber Crane on Truck, Model No.: SQ8S4, Hydraulic Crane With Telescopic Arms
Product Details
| Condition | New | Application | truck mounted crane | |
| Rated Loading Capacity | 5800 kg | Rated Lifting Moment | 300 Kn.m | |
| Max. Lifting Load | 12 ton at 2.5m | Max. Lifting Height | 17m | |
| Span | 2298-5900mm | Place of Origin | Hubei, China | |
| Brand Name | HUBEI HBQS | Model Number | SQ12S4 | |
| Certification | ISO9001:2008; TS16949 | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
SQ12S4 (12T) Telescoping Boom Crane
| Model # | SQ12S4 /telescopic crane 12 ton at 2 .5m |
| Max Lifting Moment | 300 Kn.m |
| Max Lifting Capacity (kg/m) | 12000/2.5 |
| 4500/6.0 | |
| 2500/9.0 | |
| 450/15.5 | |
| Max Lifting Height | 17 m |
| Working Radius | 15.5 m |
| Boom Section | 4 stages |
| Rotation Angle | 360º continuous |
| Working Pressure | 20 Mpa |
| Rated Oil Flow | 80L/min |
| Oil Tank Capacity | 200L |
| Wire Rope(Winch) | Φ12*110m |
| Swing Speed | 2rpm |
| Winch Type | Hydraulic |
| Swing Type | Planetary gear reduction. |
| Outrigger | 4 ,Extension, Hydraulic operating. |
| Outrigger Span | 2298-5900mm |
| Crane Weight | 5800 kg |
| Installation Space | 1400mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Overwinding Alanm Device, Automatic Swing Brake, Hook Safety Device. |
| Material | HG70 |
