Desander for drilling mud purification
- 5000 Unit / Units per Month
- China Main port
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | ZS |
Product Description
Specifications
1, Is able to remove solids within 50-150 micro meter2, improved by 30% -50% in desanding efficiency

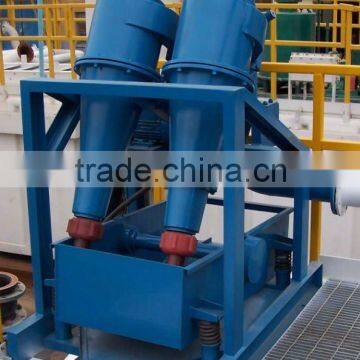

Desander
ZQJ Desanding cleaners is used to remove out the smaller solid-phase particles. Compared to the past one ,this device has been improved by 30% -50% in desanding efficiency, resulting in a reliable guarantee of the drilling speed increased and the drilling costs saved. It also can play the role of cleaner of sand and mud in the deep well.
Structural characteristics:
the composition with the base and support, a damping spring, hydrocyclones, the vibrating screen and so on. Thereinto ,the hydrocyclone has the polyurethane lining and the aluminum alloy shell ,and the aperture of the below outlet is adjustable according to different requirements .
Technical specifications:
Specifications | data |
nominal diameter of hydrocyclone (mm ) | 300 |
hydrocyclone number (pcs) | 2 |
Capacity ( m3 / h ) | 100-200 |
Critical particle size ( μm ) | 50-150 |
Working Pressure ( Mpa ) | 0.2-0.4 |
Excitation rotating speed ( r / min ) | 1400 |
Screen area ( mm2 ) | 1240 × 585 |
motor power ( kw ) | 1.1 |
Dimention ( mm ) | 1400 × 1030 × 1700 |
Total weight ( kg ) | 750 |
