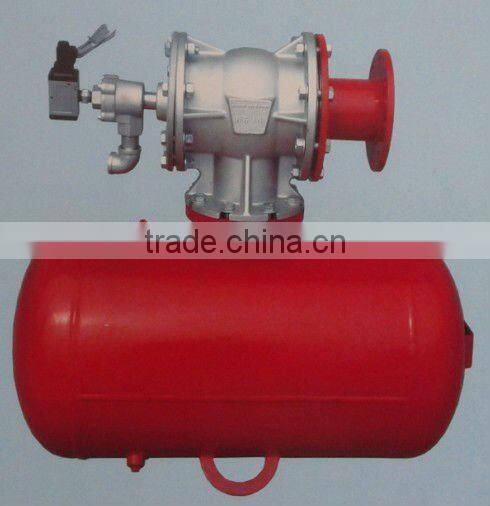

Air Cannon

The Function Of Air Cannon Parts

1,Cannon body: Store air. According to the GB150-98 Steel Pressure Vessel, this product is designed, manufactured, tested and accepted. It is supervised by Pressure Vessels Safety and Technical Supervision Regulation issued by the Ministry of Labor. Cannon body is made of Q235-B steel plate. Mainly adopt automatic submerged arc welding and carbon dioxide arc welding for steel plate welding. After X-ray crack detection, mechanical properties test, water pressure test for strength and blasting performance test, it is qualified and safe for use.

2,Outrigger or rings: Fix air cannon.

3,Water Discharge Machine: In the course of time water and oil may be accumulated in the body. Unload the twisted wire then blocking dirt can be discharged out.

4,Safety valve: It is spring-loaded safety valve, whose start pressure is 0.4-0.8Mpa(users can self-adjust). If there is a reliable safety valve on the gas source, the safety valve on the cannon may be cancelled.

5,Piston: It’s made of nylon 66, and is sealed by its piston ring. There’re a number of rubber plates at the top of the piston. There is a spring at the rear of the Pistons, so that Piston’s reduction activities can buffer spring in order to prevent materials entering the Piston and cannon body.

6,Solenoid valve: It is the main components in air-cannon’s action which can be prepared in accordance with the user’s requirement. Remarks: air control valve and explosion-proof solenoid valve are used under ground while the effect is the same.

7,Cylinder: Adopt alloy steel, and is manufactured by the advanced coating technology.

8,Piston Rubber Seat: Rubber seat is added to the rear piston to ensure that the compressed spring is not overloaded, to keep flexible energy of the spring.

9,Asbestos rubber gasket: Play the role of pressing and sealing.

10,Sealing surface: The cannon exhaust pipe end in the body with specialized technology and equipment for grinding, good sealing performance, preventing from leaking when store gas, energy conservation, ensures the air pressure in the cannon body so that make sure the impact effect when it’s blasting.

The main parameters of air gun

Selection of air guns
