Home > Products > Sterilizing Oven > UHT Tubular Sterilizing Series Equipment

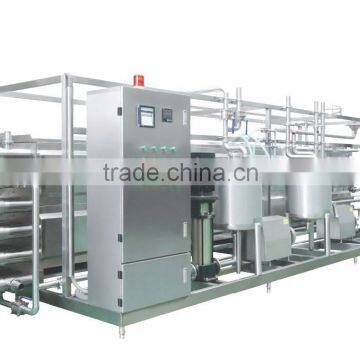

UHT Tubular Sterilizing Series Equipment
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SPM | |
| Model Number | TG | Application | Liquid | |
| Type | Other, UHT Sterilizer | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The sterilization process of tubular ultra-high temperature sterilizernot only can be suitable for common products, but also
The sterilization process of tubular ultra-high temperature sterilizer naot only can be suitable for common products, but also can satisfy special requirements of customers, for example: long term production of products with granules or medium and high viscosity. Such as cream, pure milk etc. Product(milk, fruit juice and cream) of high viscosity.The products can be sterilized at high temperature and ultra-high temperature of 120-140oC.The machine is all used stainless steel and advanced parts.
Technical Parameter:
Model | Unit | TG-7-1.6-35 | TG-7-1.6-45 | TG-7-1.6-58 | TG-7-1.6-72 |
Production capacity | t/h | 2 | 3 | 4 | 5 |
Heat exchanging area | m2 | 35 | 45 | 58 | 72 |
Temperature of material inlet | 5 | 5 | 5 | 5 | |
Temperature of material ouinlet | 25 | 25 | 25 | 25 | |
Sterilizing temperature | 95-137 | 95-137 | 95-137 | 95-137 | |
Heat preservation period | S | 15_4 | 15_4 | 15_4 | 15_4 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 |
Cooling water consumption | multiple | 2 | 2 | 2 | 2 |
Energy consumption | kw | 10 | 10 | 12 | 14 |
Outiline dimensions | mm | 4500*1900*1880 | 4500*1900*1880 | 4500*1900*1880 | 6500*2000*1880 |
