DPB-80 Flat Plate Automatic Blister Packing Machine
- 1 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Food, Medical, Chemical, Other | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380V | Power | 1.8KW | |
| Place of Origin | China | Brand Name | SPM | |
| Model Number | DPB | Dimension(L*W*H) | 1400x460x950mm | |
| Weight | 450kg | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
It adopts a cycloid pin gear device for the main driving unit,which has long life and smooth running.

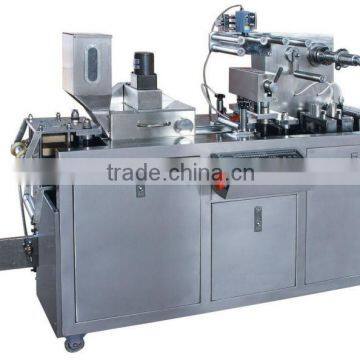

DPB-80 Flat Plate Automatic Blister Packing Machine
Introduction:
The machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
Features:
With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.
Main Technical Parameters:
Cutting Frequency (Times/min) | 10-40 |
Max. Production Capacity (Blister/h) | 2400 (According to standard plate 80×57) |
Max. Forming Area and Depth (mm) | 80×100×26 (Standard 70×90×14) |
Travel Range (mm) | 20-80 (Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
Total Power | 380V/220V 50Hz 1.8kw |
Main Motor Power (kw) | 0.75 |
PVC Rigid Sheet (mm) | 0.25-0.5×100 |
PTP Aluminum Foil (mm) | 0.02-0.035×100 |
Dialysis Paper (mm) | 50-100g×100 |
Mould Cooling | Tap Water or Circulating Water |
Overall Dimensions (mm) | 1400×460×950(L×W×H) |
Weight (kg) | 450 |
