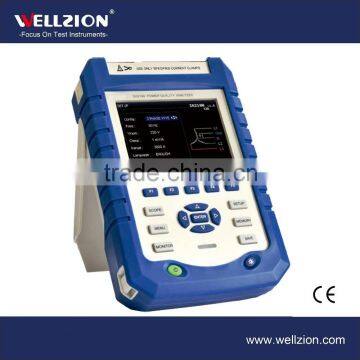

SA2100E,power quality analyzer,3 phase power analyzer

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Input
Voltage Input
Input channels	4 (3 phase + neutral) DC coupling
Max. Input Voltage	1000Vrms
Range of nominal voltage	50 ~ 500V
Max pulse peak voltage	6kV
Bandwidth	>3kHz
Input impedance	4MΩ/5pF
Current Input
Numbers of input	4 (3 phase + neutral) DC coupling
Type	Clamp Current Sensor, with mV output
Input range	1 to 3000Arms with supplied current clamp
Input impedance	50kΩ
Bandwidth	>3kHz
Sampling System
Resolution	8 channels 16 bits AD
Sampling rate	20kS/s for each channel, 8 channels sample synchronously
RMS sampling	5000 points for 10/12 cycles (according to IEC 61000-4-30)
PLL sync	4096 points for 10/12 cycles (according to IEC61000-4-7)
Measurement	Measurement range	Resolution	Accuracy
Voltage/Current/Frequency
Vrms (AC+DC)	1~1000Vrms	0.1Vrms	±0.5% of nominal voltage
Vpk	1~1400Vpk	0.1Vpk	±0.5% of nominal voltage
V(Crest Factor)	1.0~>2.8	0.01	±5%
Arms (supplied current clamp)	1~1000A/3000/5000A	1A	±1%±2A
Arms (supplied current clamp)	1~100A	0.1A	±1%±0.2A
Apk	1~4000Apk	1A	±1%±2A
A(Crest Factor)	1~10	0.01	±5%
Frequency	42.5~57.5 (50Hz nominal)	0.01Hz	±0.01%Hz
Frequency	51~69 (60Hz nominal)	0.01Hz	±0.01%Hz
Dips&Swells
Vrms1/2	0~200% nominal voltage	0.1Vrms	±1%
Arms1/2	1~3000A	1A	±1%±2A
Threshold value	Threshold is settable according to nominal voltage percentage Detectable events type: Dips, Swells, Interruption, Voltage Rapid Change.
Duration	hour-minute-second-microsecond	0.5 period	1 period
Harmonic
Harmonic number	1~50
Harmonic voltage	0.0~100.0%	0.10%	±0.1%±n×0.1%
Harmonic current	0.0~100.0%	0.10%	±0.1%±n×0.1%
THD	0.0~100.0%	0.10%	±2.5%
DC relative	0.0~100.0%	0.10%	±0.2%
Frequency	0~3500Hz	1Hz	1Hz
Phase	-360°~ 0°	1°	±n×1.5°
Power and energy
Active power/apparent	1.0~20.00MW	0.1kW	±1.5±10 digits
Power/reactive power	1.0~20.00MW	0.1kW	±1.5±10 digits
Energy	0.00kWh~200GWh	10Wh	±1.5±10 digits
Power factor	0~1	0.01	±0.03
Unbalance
Voltage	0.0~5.0%	0.10%	±0.5%
Current	0.0~20.0%	0.10%	±1%
Voltage phase	-360°~ 0°	1°	±2 digits
Current phase	-360°~ 0°	1°	±5 digits
Logger
Recording	user-defined parameters for 4 phases at the same time
Memory	Data stored in TF card, 8GB
Duration Time	2 hrs to 1 year
Interval	1s to 1 hrs
Wiring Combinations
1Ø+NEUTRAL	Single phase with neutral
1Ø SPLIT PHASE	Split phase
1Ø IT NO NEUTRAL	Single phase system with two phase voltages without neutral
3Ø WYE	3-phase 4-wire system, Y type
3Ø DELTA	3-phase 3-wire system delta (Delta)
3Ø IT	3-phase Y type without neutral
3Ø HIGH LEG	4-wire 3-phase delta system (Delta) with center tapped high leg
3Ø OPEN LEG	Open-delta (Delta) 3-wire system with two transformer windings
2-ELEMENT	3-phase 3-wire system without current sensor on phase L2/B (2 Watt meter method)
2 1/2-ELEMENT	3-phase 4-wire system without voltage sensor on phase L2/B
General Characteristics
Display	5.6 inch 320× 240 Color TFT LCD
Interface	USB Host,LAN
Memory	128M Flash memory ;Standard 8G TF card
Dimension	262mm×173mm× 66mm
Weight	1.6 kg
Battery	Rechargeable Ni-Mh 7.2V 3.8Ah,>7 hours working time,4 hours charging time

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Compare with Fluke Power Quality Analyzer

Model		HOIKI 3197	SA2100
Test Iterms	Voltage	600V	1000V
	Voltage Accuracy	±0.3%rdg.±0.2% f.s	±0.5% of V nom
	Current Accuracy	±0.3%rdg.±0.2% f.s±accuracy of sensor	±1%±5 digits
	sensor	7 optional	3000A*4 standard
	Frequency	45~66Hz	42.5~57.5Hz/51~69Hz
	Power Accuracy	±0.3%rdg.±0.2% f.s±accuracy of sensor	±1.5%±10 digits
	Apparent Power	√	√
	Active Power	√	√
	Reactive Power	√	√
	Active Energy	√	√
	Reactive Energy	√	√
	Power Factor	√	√
	Unbalance	√	√
Power Quality	Inrush Current	√	√
	Dip & Swell	√	√
	Interruption	√	√
	Fliker	×	√
General	Data Memory	4MB	128MB
	Interval setting	Auto:1/2/5/10/30s,1/5/15/30/60s	1/2/5/10/15/30s,1/2/5/10/15/30/60m
	Connect Mode	1 phase-2line/1phase-3 line/3 phase-3 line/3 phase-4 line	1 phase-2line/1phase-3 line/3 phase-3 line/3 phase-4 line
	Display	4.7'' STN color LCD	5.6'' TFT color LCD
	Language	Janpanese/English/ Chinese	English/Chinese
	External In/Out	×	×
	PC/CF card	×	CF 8GB
	Interface	USB	USB.LAN

Selection Guide

Model	SA2100	SA2100E
Volts/Amps/Hertz	Yes	Yes
Dips&Swell	Yes	Yes
Power/Energy	Yes	Yes
Unbalance	Yes	Yes
Monitor	Yes	Yes
Scope	Yes	Yes
Harmonic	Yes	Yes
Inter-Harmoni	Yes	No
Transient Voltage	Yes	No
Inrush Current	Yes	No
Fliker	Yes	No
400Hz	Yes	No
Interruption	Yes	Yes
Memory Card	8G
Standard CT	Flexi.CT PY-3000A*4pcs	Flexi.CT PY-3000A*3pcs
