MPS3005LK-1,0-30v/0-5a Regulated Power Supply
Negotiable
/ Piece
1 Piece(Min. Order)
- xiamen shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | MPS3005LK-1 | Output Power | 101 - 200W | |
| Output Type | Single | Input Voltage | Other, Standard: AC220V d 10% ;Optional: AC110V/220V d 10% 50/60Hz, | |
| Output Voltage | 0~30V*1 | Output Frequency | 50/60Hz | |
| Output Current | 0~5A*1 |
Product Description

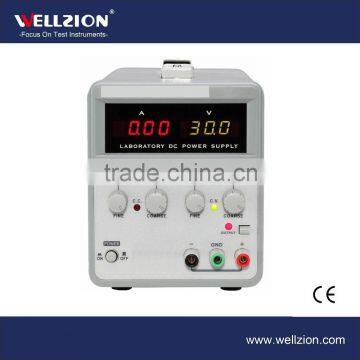

MPS3005LK-1,0-30v/0-5a regulated power supply
Features and Benefits:
- 0-30V,0-5A One Channel adjustable
- Two Digital Panel Meters
- Overload and Reverse Polarity Protection
- Constant Voltage, Constant Current, Low ripple noise, Low temperature drift
- Preset current limited point
Technical Specifications
| MPS-3003LK-1 | MPS-3005LK-1 | MPS-6003LK-1 | |
| Output voltage | 0~30V×1 | 0~30V×1 | 0~60V×1 |
| Output rated current | 0~3A | 0~5A | 0~3A |
| Voltage rate of change | Power effect: CV ≤ 0.01% +3 mV Load regulation: | power effect: CV ≤ 0.01% +3 mV Load regulation: | Power effect: CV ≤ 0.01% +3 mV Load regulation: |
| Voltage ripple and noise | CV≤1.0mVr.m.s (I≤3A) , | CV≤1.0mVr.m.s (I≤3A) CV≤2.0mVr.m.s (I>3A) , | CV≤1.0mVr.m.s (I≤3A) , |
| Voltage response time | ≤ 100μS (50% load change, Minimum load 0.5A), | ||
| Voltage temperature coefficient | 300ppm/°C | ||
| Voltage range | 0 to set the voltage continuously adjustable, | ||
| Current rate of change | Power effect: CC ≤ 0.2% +3 mA Load regulation: CC ≤ 0.2% +3 mA (I ≤ 3A), | Power effect: CC ≤ 0.2% +3 mA Load regulation: CC ≤ 0.2% +3 mA (I ≤ 3A) CC ≤ 0.2 % +5 mA (I> 3A) | Power effect: CC ≤ 0.2% +3 mA Load regulation: CC ≤ 0.2% +3 mA (I ≤ 3A) |
| Voltage ripple current | CC≤3mAr.m.s (I≤3A) CC≤6mAr.m.s (I>3A) , | ||
| Current output range | 0 to set the voltage continuously adjustable, | ||
| Measurements show | Voltage: three A / D converter digital LED display Current: three A / D converter digital LED display, | ||
| Measurement resolution | Voltage: 100mV current: 10mA, | ||
| Reading accuracy (25 ± 5°C) | Voltage: ± 0.5% +2 words Current: ± 1 +2 words, | ||
| Power supply | Standard: AC220V ± 10% Optional: AC110V/220V ± 10% 50/60Hz, | ||
| Size | 310(D)*160(W)*130(H)mm , | 310(D)*160(W)*130(H)mm , | 310(D)*160(W)*130(H)mm , |
| Weight | 5kg | 6.3kg | 6.5kg |
