S7000,deviser s7000l tv analyzer

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port xiamen shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	OEM
Model Number	S7000	FTA(Free To Air)	No
Type	Digital	High Definition	Yes

Product Description

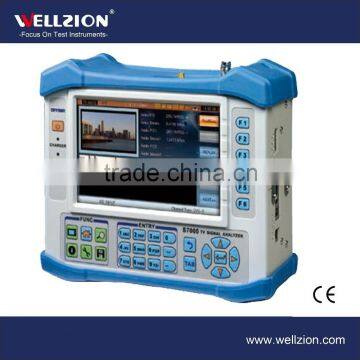

S7000,satellite tv signal meter

Features and Benefits

All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
Digital/Analog TV and Satellite TV analysis
MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
Fast spectrum analysis with 5 ~ 2150 MHz frequency span DSP Technology to support different Video decoding: MPEG-2,MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/ SECAM color system
Support SD&HD Video format
DVB-CI module (Conditional Access) for encrypted channels
TS-ASI input and output
TS record and TS replay
IPTV analysis and GPS option
HDMI, LAN and USB interface
7" TFT LCD Display
Working time > 5 hours (battery)

Specifications

Spectrum Analyzer
Frequency Range	5 MHz ~ 1050 MHz (TV), 950 MHz ~ 2150 MHz (Satellite)
Frequency Span	1 MHz ~ 1045 MHz (TV), 10 MHz ~ 1200 MHz(Satellite)
Frquency Step	10 kHz (TV), 1 MHz (Satellite)
Resolution Bandwidth (-3dB)	30kHz, 100kHz, 300kHz, 1MHz,3MHz (TV) 1MHz, 3MHz Auto Select (Satellite)
Level Measurement Range	10 dBμV ~ 120 dBμV (TV) 30 dBμV ~ 120 dBμV (Satellite)
Accuracy Of Measurements	<1.5 dB
Measurement Detector	Peak, sample, AVG (TV) , No Select for Satellite
Reference Level	30 dBμV ~ 120 dBμV
Markers	2 (TV) 1 (Satellite)
Analogue TV Measurement
Standards	B/G, I, D/K, L/L´, M/N
Colour Standards	PAL, SECAM, NTSC
Frequency Step	10 kHz
Hum Measurement	> 50dB
C/N	> 50dB
Level Measurement Range	30 dBμV ~ 120 dBμV
Accuracy Of Measurements	< 1.5 dB
Level Resolution	0.1 dB
Digital CATV Measurement
Modulation Type	16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C
Symbol Rate	4.0 MS/s ~ 7.0 MS/s
Power Level Range	30 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB(C/N > 20 dB)
MER Measurement	~40 dB
MER Accuracy	±2.0 dB
BER	1E-3 ~ 1E-9
Constellation	√
DVB-T/H Measurement
Modulation Type	QPSK, 16 QAM, 64 QAM
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N >20 dB)
MER Measurement	> 30 dB
MER Accuracy	±2.0 dB
CBER/VBER	√
Constellation	√
MER Versus Carriers	√
Echo Pattern	√
DVB-T2 Measurement
Modulation Type	QPSK, 16 QAM, 64 QAM, 256QAM
Power Level Range	25 dBμV ~ 110dBμV
Level Resolution	0.1dB
Power Level Accuarcy	±1.5 dB(C/N >20 dB)
MER Measurement	>30 dB
MER Accuracy	±2.0 dB
CBER/LBER	√
Constellation	√
Echo Pattern	√
ATSC Measurement
Modulation Type	8 VSB
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB(C/N >20 dB)
MER Measurement	>35 dB
MER Accuracy	±2.0 dB
BER	√
Constellation	√
DTMB Measurement
Carriers	C=1, 3780
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N >20dB)
MER Measurement	>28 dB
MER Accuracy	±2.0 dB
BER	√
Constellation	√
Echo Pattern	√
DVB-S/S2 Measurement
Modulation Type	QPSK, 8PSK
Symbol Rate	2 - 45 MS/s (DVB-S) 1 - 45 MS/s (QPSK DVB-S2) 1 - 45 MS/s (8PSK DVB-S2)
Power Level Range	40 - 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N>20dB)
MER Measurement	> 25 dB
MER Accuracy	±2.0 dB
BER	DVB-S (CBER/VBER) DVB-S2 (CBER/LBER)
Constellation	√
Video/Audio Decoder
Video	MPEG1/2/4, H.264
Video Resolution	1080i, 720p and 576i
Audio	MPEG1/2/4, AAC
CAM Module	EN50221 (DVB-CI) PCMCIA interface
TS-ASI Input And Output	√
TS Record	√
TS Analyzer En 50083-9(DVB SPI, ASI)
DVB-ASI Interface	75 Ω BNC
DVB-ASI Clock	270 MHz
DVB-ASI Output Signal Level	1.0 Vp-p nominal
DVB-ASI Return Response	> 15dB
DVB-ASI Input Level	800 mV +/- 10%
TR101290 Monitor	TR101 290 three levels real time monitor
Base Information	Count the PIDs percent according to the type of the streams. Videos, Audios, PSI/SI, Null Packages
PID List	Display all the PIDs in current stream
PCR Monitor	Calculate PCR interval and PCR accuracy
General
Display	7 inches TFT LCD 800 × 480 pixels
Time	Around 5 Hours Charge Time ; >5 Hours Working Time
Dimension (W×H×L)	245 mm × 194 mm × 105mm
Weight Around	2.8 kg

Spectrum Measurement

The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150MHz )

DVB-S/S2 Signal Analysis

Supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement

DVB-T/T2 Signal Analysis

TS Analysis and Monitor

S7000 has 8GB hard disk to save TS file and can replay and analysis.
