S30,TV Satellite Meter
Negotiable
/ Piece
1 Piece(Min. Order)
- xiamen shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | S30 |
Product Description
Product Overview

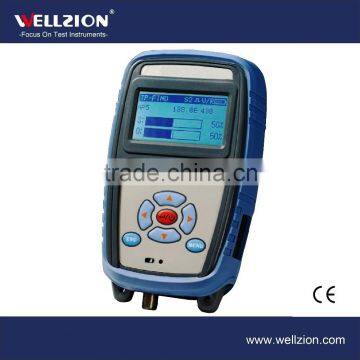

S30 is a battery powered handheld satellite meter, which features small size, simple to use and spectrum analysis. It powers LNB and can set the satellite parameter via USB interface by PC software.
This instrument is extremely fast and accurate with high sensitivity and stable display which make satellite identifying much easier
Function & Benefits
- Supporf DVB-S/S2
- C, Ku, Ka or L Band
- MER and BER
- Spectrum function
- Support DiSEqC 1.0/1.1
- Signal level and quality display together
- 128×64 matrix LCD with back-lighted
- Large lithium battery capacity, over 4 hours working time
- Software upgrade and parameter set via USB interface
Specifications
| RF Input Range | 950~2150 MHz |
| Level Range | 30dBμV~110dBμV |
| Symbol Rate | 1Msps~45 Msps(QPSK,8PSK) |
| LNB Supply Volt | 13V,18V,OFF |
| LNB Supply Current | ≤400 mA |
| Battery Capacity | 7.2V/1600 mAH lithium battery |
| Dimension | 153 mm × 93 mm × 42mm |
| Weight | 358g |
| Working Time | >4 Hours (13 V) |
RF Input Range 950~2150 MHz
Level Range 30dBμV~110dBμV
Symbol Rate 1Msps~45 Msps(QPSK,8PSK)
LNB Supply Volt 13V,18V,OFF
LNB Supply Current ≤400 mA
Battery Capacity 7.2V/1600 mAH lithium battery
Dimension 153 mm × 93 mm × 42mm
Weight 358g
Working Time >4 Hours (13 V)
