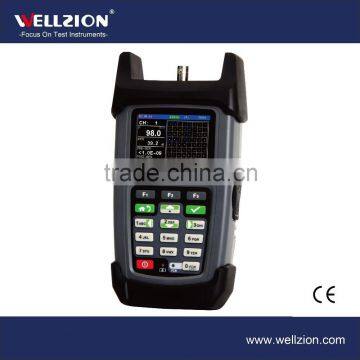

DS2460Q,1052MHz CATV Digital Optical Spectrum QAM Analyzer

Product Overview

The DS2460Q is a multi-functional instrument that supports digital QAM and analog signals in CATV networks. It is the ideal tool for initial network installations, service, and troubleshooting tasks.
The ruggedized design includes an outer chassis protector,while the icon-based GUI features programmable preset pass/fail limits. The easy-flowing menus are designed for increased efficiency and productivity for all levels of technicians. Other features - including return path & forward spectrum scan, 12 favorite tilt frequencies, AC line voltage test, HUM and DC voltage measurements, combined with complete data logging and management software - make this unit a versatile tool for cable installations.
Other features - including return path & forward spectrum scan, 12 favorite tilt frequencies, AC line voltage test, HUM and DC voltage measurements, combined with complete data logging and management software - make this unit a versatile tool for cable installations.
MER, Pre & Post BER measurements, and statistics features allow quick verification of loose connections, generally related to pixelated pictures or slow DS internet data flow. The digital measurement functions also help identify mismatches caused by open coaxial lines or impedance mismatch.

Function & Benefits

2.8 inch color TFT LCD display
5MHz~1052MHz range (analog signals)
46MHz~1052MHz range (digital signals)
Multiple channel plans with learn mode
Built-in auto channel scan and learning tool
Auto test with pass/fail limits speeds up tests and simplifies results interpretation
Tilt measurements display (12 channels)
AC/DC voltage measurements, including HUM
Ethernet and micro USB ports

Specifications

Frequency
Frequency Range	5MHz~1052MHz
Frequency Accuracy	± 50 PPM
Frequency Resolution	10kHz
Resolution Bandwidth (-3dB)	280kHz
Normal Spectrum Analysis
Frequency Range	45MHz~1052MHz
Span	Min. Span; 2.5 MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span
Fast Spectrum Analysis
Frequency Range	5MH~1220MHz
Span	Min. Span; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span
Channel Type
Analog	TV PAL, NTSC
Digital	TV QAM 16/32/64/128/256
FM Radio	Single frequency
Channel Scan
Number of Channels	160 channels max
Scale	1, 2, 5, 10dB/div
Zoom	1X, 2X, 3X, 4X, 5X five levels
Analog TV
Level Measurement Range	-30dBmV~+60dBmV
Level Accuracy	±2dB
Level Resolution	0.1dB
Resolution Bandwidth	280kHz
C/N	>50dB
HUM Measurement Range	2% to 5%
Digital TV
Frequency Range	46 MHz to 1052 MHz
Power Level Range	-30dBmV~+60dBmV
Power Level Resolution	0.1dB
Power Level Accuracy	±2dB
Demodulation Type	Standard ITU-T J.83 Annex A, B and C
Interleave Depth	128x1~128x4(J.83B);12x17(J.83A/C)
Symbol Rate Range	4 MS/sec to 7 MS/sec
Max MER	41dB
MER Accuracy	± 2dB
BER	1E-3 to 1E-9
Constellation Display Mode	QAM64 and QAM256 with zoom capability
Spectrum Analysis
Bandwidth	2.5MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span
Scale	1dB, 2dB, 5dB, 10dB
Line Voltage Measurement
Range	0V to 100V (AC/DC)
Accuracy	± 2V
Others
RF Input	75Ω
USB	USB Micro 2.0
Ethernet	10/100Mbps
Display	2.8” 320x240 TFT LCD
AC/DC Adapter	AC 100V to 240V 50-60Hz ,DC 15V/0.9A
Battery	7.4V 2.5Ah Lithium Battery
Charge Time	5 hours
Working Time	>5 hours
Dimensions (W x H x L)	200mm × 106mm × 54mm (7.9" x 4.2" x 2.1")
Weight	0.6 kg (1.3 lbs)
Working Temperature	-10 ~ +40C
Storage Temperature	-20 ~ +70C
