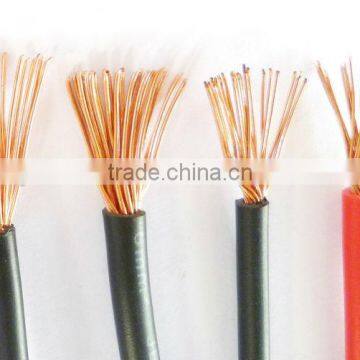

450/750V Copper Flexible Conductor Cable Wire

Nominal
sectional area
mm²

Conductor
No/Dia.
mm

Nominal
Insulated thick
mm

Max overall
Dia.
mm

Condcutor
Resistance at
20

Min insulated
resistance at
70MΩ/km

Weight
Kg/km

2.5

9/0.41

0.8

4.2

7.41

0.011

33.0

4

19/0.52

0.8

4.8

4.61

0.009

48.0

6

19/0.64

0.8

5.6

3.08

0.0084

68.0

10

49/0.52

1.0

7.6

1.83

0.0072

115.0

16

49/0.64

1.0

8.8

1.15

0.0062

176.0

25

98/0.58

1.2

11.0

0.727

0.0058

272.0

35

133/0.58

1.2

12.5

0.524

0.0052

384.0

50

133/0.68

1.4

16.5

0.387

0.0051

510.0

70

189/0.68

1.4

16.5

0.268

0.0045

714.0

95

259/0.68

1.

19.5

0.139

0.0035

965.0

120

259/0.76

1.8

22.0

0.153

0.0032

1210.0

150

259/0.85

1.8

25.0

0.124

0.0032

1510.0

Code Designation    by IEC

Code Designation by GB

Voltage

Products Name

Constructions

Maximum conductor temperature

60227 IEC 01

BV

450/750 V

Single-core non-sheathed cable with rigid conductor for general purposes

Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation

70 °C.

60227 IEC 02

RV

450/750 V

Single-core non-sheathed cable with flexible conductor for general purposes

Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation

70 °C.

60227 IEC 05

BV

300/500 V

Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C

Cl.1 Solid Copper Conductor, PVC/C Insulation

70 °C.

60227 IEC 06

RV

300/500 V

Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C

Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation

90 °C.

60227 IEC 07

BV-90

300/500 V

Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90 °C

Cl.1 Solid Copper Conductor, PVC/E Insulation

90 °C.

60227 IEC 08

RV-90

300/500 V

Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C

Cl.5 Flexible Stranded Copper Conductor, PVC/E Insulation

90 °C.

60227 IEC 10

BVV

300/500 V

Light PVC Sheathed Cable

Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation, PVC/ST5 Sheathed

70 °C.

60227 IEC 52

RVV

300/300 V

Light PVC Sheathed Cord

Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed

70 °C.

60227 IEC 53

RVV

300/500 V

Ordinary PVC Sheathed Cord

Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed

70 °C.
