solid copper wire 2.5mm 4mm 6mm 10mm electrical wire and cable
- shanghai
- T/T Credit Card
You May Like
-
solid copper wire 2.5mm 4mm 6mm 10mm electrical wires for Russia
-
copper conductor H07V-K electrical wire
-
hot sales good quality hosing flexible wire for African market
-
TUV certificate flexible stranded copper wire cable
-
two core flexibe 1.0mm2 moveable electrical wire
-
HOT sales copper wire PVC insulated building cable for Africa market
Product Details
| Place of Origin | Shanghai, China | Brand Name | yojin or OEM | |
| Model Number | CU/PVC BV | Type | Insulated | |
| Application | Heating | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
Specifications
solid or flexible conductor electrical wireISO 9001-2008 cable group
brand:yojin
we have special price for Russia

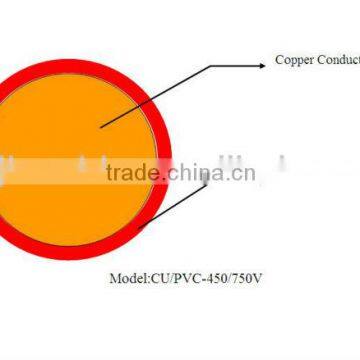

Solid copper wire 2.5mm 4mm 6mm electrical wire and cable
1.electrical wire is usually PVC insulated wire
PVC insulation no-sheathed general purpose electrical wire,single core,solid
2.sheathed round wires:
copper(aluminum)conductor pvc insulated pvc sheathed solid wires
copper(aluminum)conductor pvc insulated pvc sheathed flexible wires
Sizes:0.5-185mm2
ducts can be produced and provided accroding to standard G/T5023,IEC60227,BS6004,JB8734.
Standard:
GB/T5023.1-1997 450/750V or below PVC insulated electric wires.
GB/T5023.1-1997 is identical to IEC227,models are the same,can be produced according to customers requirement.
Using purpose:
4. used for AC rated voltage 450/750V and below for the followings:
lighting,electrical installation,the connection between instrumention and telecomunication equipment
Technical Data Sheet
Class 2 Conductor
Nominal | Conductor | Nominal | Max overall | Condcutor | Weight | ||
Cu | Al | Cu | Al | ||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 19.2 | - |
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 30.8 | 15.0 |
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 45.5 | 21.0 |
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 65.0 | 29.0 |
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 110.0 | 52.0 |
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 170.0 | 70.0 |
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 270.0 | 110.0 |
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 364.0 | 150.0 |
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 500.0 | 200.0 |
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 688.0 | 269.0 |
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 953.0 | 360.0 |
120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 1168.0 | 449.0 |
150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 1466.0 | 551.0 |
185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 1808.0 | 668.0 |
Class 5 Conductor
Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight |
2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
95 | 259/0.68 | 1. | 19.5 | 0.139 | 0.0035 | 965.0 |
120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
