High Speed JW-737 Towel Rapier Loom Weaving Machine

Model 737 Towel rapier loom

Main datas

Feature:

1.       Adopts the cam with eccentric shaft structure for making terry motion and replaces the old type of knocking bill motion structure. It assures the machine having high reliability of making terry and regulating conveniency.

2.       Adopts shout crank arm beating-up motion, increasing greatly the beating-up force during weaving that assures the enough strength the weave the heavy towel.

3.       thicker weft beating shaft assures enough beating rigidity, it can weaving the wide fabric more than 2800mm

4.       adopts optimized six linkages weft insertion structure, make the weft insertion curve more soft

5.       the two electromagnets which controlled the terry raising, controlled by technical program which set by electric control system, It can weaving high and low terry

6.       the reed seat and other main parts made up of aluminum alloy, make the machine running faster more stable, more than 200rom speed make it the perfect model to replace the low speed towel rapier loom

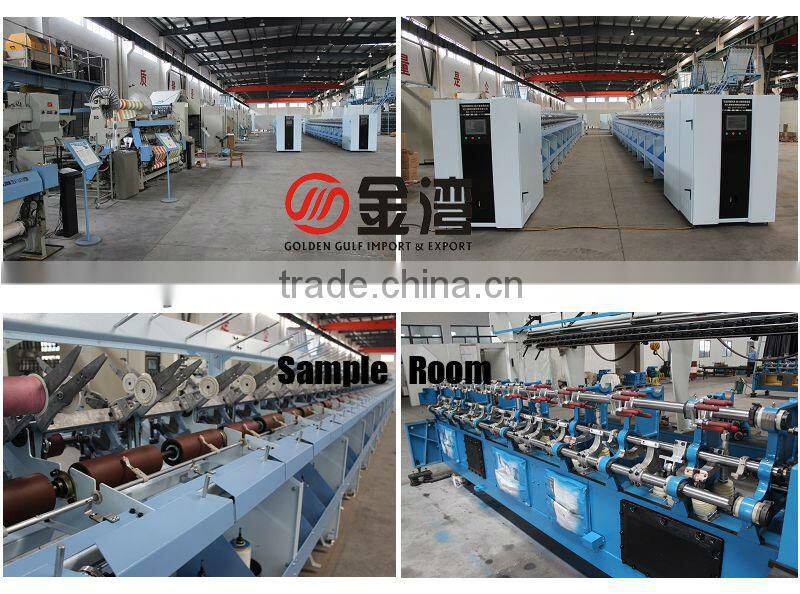

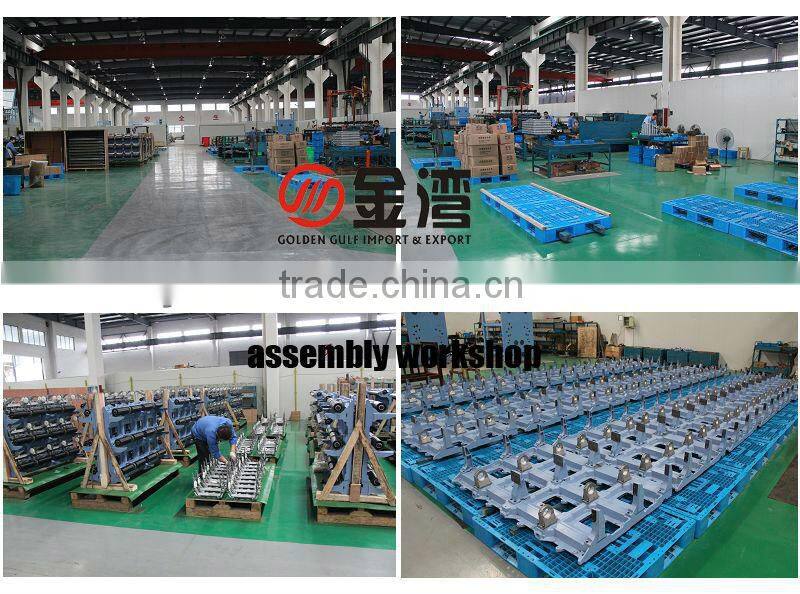

OUR FACTORY, MACHINE, ASSEMBLY WORKSHOP,AND SAMPLE ROOM SHOW OUR SOLID STRENGTH AND TECHNOLOGY

 DETAILS OF PACKING ,WARRANTY ,INSTALL AND AFTER-SALE SERVICE

CONTACT WAY
