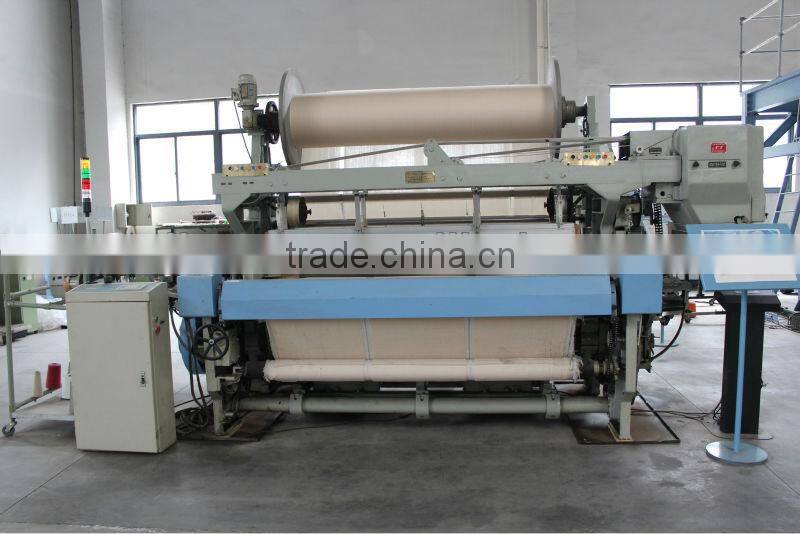

736 Flexible Advance Rapier Loom With Latest Technology
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Condition | New | Type | Rapier Loom | |
| Application | cotton,wool,chemical fiber | Production Capacity | 10meters/hour | |
| Place of Origin | Zhejiang, China | Brand Name | GOLDEN GULF | |
| Model Number | 736 | Dimension(L*W*H) | 3700x2000x1800 200(78'') | |
| Weight | 2200_2500KG | Power(W) | 1.8KW-2.2KW | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
736 180/200/230/250/280 rapier loom
Main datas | |
| Reed width | 200cm(78'') 230cm(90'') 250cm(98'') 280cm(110'') |
| Speed | 260-190 r.p.m |
| Yarn range | cotton 6Ne-80Ne,wool 10Nm-135Nm ,chemical fiber 900D-70D |
| Shedding | upper mechanical (electronic) dobby, spring reversing motion,20 or 24 shafts |
| welf insertion form | six linkages weft insertion |
| Beating-up motion | four linkages short crank arm beating-up |
| Let-off motion | adopting friction type let-off |
| Take-up and rolling up | continuous take-up and separate rolling up, full rolling diameter 400mm |
| Weft selection | Weft selection |
| Diameter of warp beam | 600mm |
| Warp stop | 6rows electric warp stop |
| Weft stop | piezoelectric ceramic sensor control weft stop |

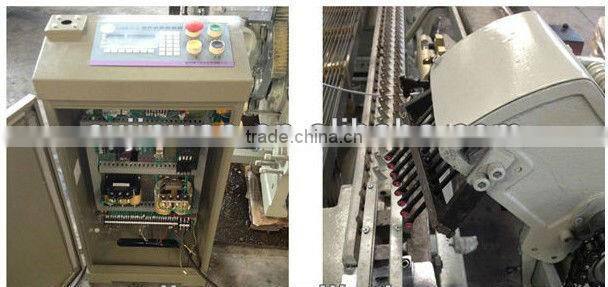

| Electric system | PLC |
| Power | 1.8-2.2KW |
| Weight | 2200-2500kgs |
| Overall size | 3700x2000x1800mm(200cm/78'') |
Application:
The rapier loom is used to weave fabric with crude fiber(cotton, wool, hemp ), chemical fiber and blending yarn etc. it is better for weaving thick fabrics than 747loom.
Feature:
With stronger framers and improvement of the beating-up and weft insertion devices on 747,the speed of 736 loom is higher and it can weave thicker fabrics than 747. the details of special features as followings:

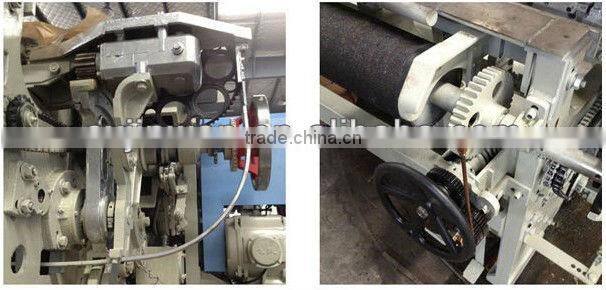

1. adopt the four-links short crank, shorten and strengthen the lay swords ,that get the loom to produce stronger strength when it beating up and the speed is higher.
2. the new six links weft insertion system replaces the old four links weft insertion system, that assures the rapiers have enough time to finish weft transfer inserting and get handover to be stable.
