FMWR-A Manual Folding Bus Wheelchair Ramps for Disabled and Elder

1. INTRODUCTION

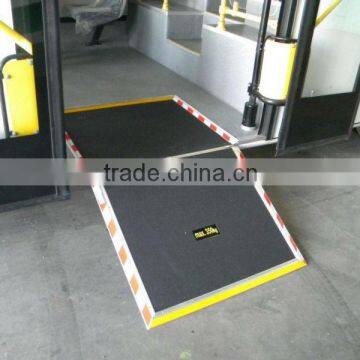

The FMWR-1A folding manual wheelchair ramp is installed on the low-floor bus and van for the disabled or old to easily get in/out of the vehicle.

The folding ramp is full manual operation, no connection with the vehicle electric system. Its platform is aluminum and load capacity reaches 350kg.

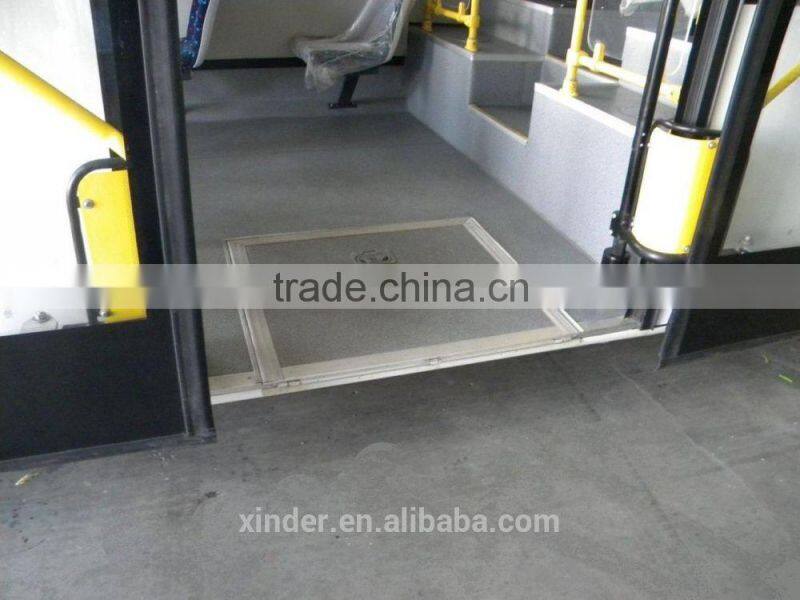

Its installation position is flush with the vehicle floor, no need to worry about the vehicle appearance or other passengers’ entrance and exit.

The FMWR series has several specifications to satisfy your various demand.

2.ADVANTAGES

• Interlock function with the vehicle door: due to the ramp’s built-in magnet and left proximity switch the driver can easily check the ramp state. If the ramp is at work, the vehicle door cannot shut down and the warning sound from the instrument desk alerter will ring.
• Easy installation: the ramp is assembled before delivery. You just need to drill the right and fix the ramp as to the Installation Instruction.
• Light and non-skid aluminum platform with good corrosion resistance
• 350kg load capacity
• With danger symbol on the outer edge of ramp
• Little installation space: it is installed flush with the vehicle floor, taking up no vehicle space if not used; no requirement of the vehicle floor height.

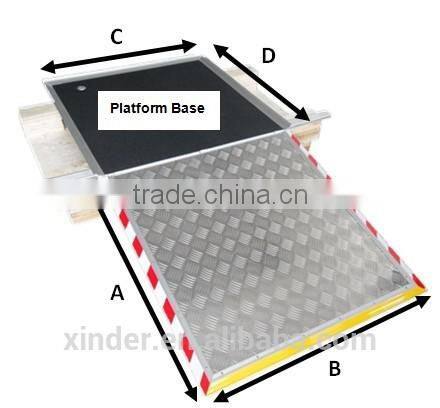

3. SPECIFICATIONS

4. INSTALLATION REQUIREMENTS

5. OPTIONAL PART: Aluminum Board

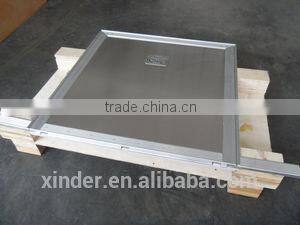

Standard folded ramp face: smooth face as Figure 1 shows.

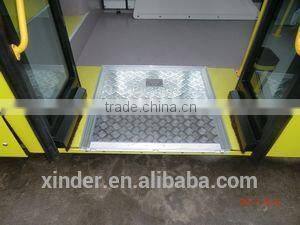

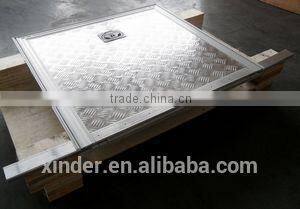

Optional folded ramp face: honeycomb-board face is as Figure 2 shows.

                                                 Figure 1---standard face

                                                            Figure 2---honeycomb- board face
