Xinder CE Certificate FMWR-A Series Folding Manual Bus Ramp For Wheelchair Loading 350kg
- SHANGHAI
- T/T Credit Card
You May Like
-
Aluminum Electric Wheelchair Ramp for Buses
-
Xinder FMWR-A Manual Folding Bus Wheelchair Ramp
-
FMWR-A Series Low Floor Folding Threshold Manual Ramp With CE for Disabled and Handicap
-
CE Certificated Customized Folding Manual Bus Wheelchair Ramp With 350kg Loading for Wheelchairs
-
CE 350kg Electric Aluminum Ramp for Wheelchair the Disabled on Low-Floor City Bus
-
BRT City Bus EWR Hydraulic Aluminum Loading Wheelchair Ramp for Disabled and Wheelchairs Trucks
Product Details
| Type | Flooring | Certification | ISO9001:2000 | |
| Size | 885*920 | Material | mainly aluminum and iron | |
| OEM No. | OE SPEC | Bus Model | Dennis Ankai Kinglong Higer Yutong | |
| Place of Origin | Jiangsu, China | Brand Name | xinder | |
| Model Number | FMWR-1A |
Product Description
Fitures:
Easy Manual operation
anti skip alumnium surface
350KG max Loading capacity
interlocked with passenger door.
customized dimension
- Ø Interlock system:there is magnet in the ramp, and there is proximity switch at the left of ramp, so that the driver can know whether the ramp is under performance status. When the ramp is used, the vehicle door can not be opened, and there will be warning signal at the instrument desk.
- Ø Easy installation:this ramp has been assembled before delivery, so the only thing that customer need to do for installation is to drill holes with right size, and then mount the ramp according to installation instruction, which is easy and simple. Ramp working platform adopts anti-skidding honeycomb board, so that this ramp has many advantages, such as light, powerful loading capacity, strong non-corrodibility and so on.
- ØLow installation requirements: this ramp is mainly applied for low-floor city bus. It is installed on the vehicle floor, and it doesn't take up any room of vehicle when it isn't used. Meanwhile, there is no requirement for height of vehicle floor.
1. Introduction
This FMWR-1A fold manual wheelchair ramp can be applied for low-floor city bus, and can be installed on the vehicle floor.
It also should be controlled manually and the material of base is aluminum. It is installed on the vehicle floor, when need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
The operation of manual wheelchair ramp is easy, simple, independent and wholly manual, because
it doesn't need to connect with vehicle electric system. This ramp takes no space of vehicle.
Moreover, the platform of ramp and the floor of vehicle are at the same level, so there is no effect for passengers.
2. Technical Parameter
Driving Mode: | Manual |
Dead weight: | 32kg |
Max Loading Capacity: | 350kg |
Weight of working platform: | 15kg |
Main material: | aluminum & iron |
Test: | 100000 times |
3.Safety Function:

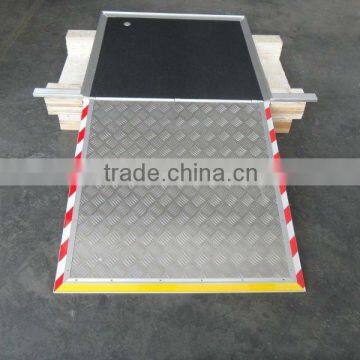

Ø Adopt anti-skid aluminum plate on the surface of platform
Ø With danger symbol on the outer-edge of ramp
Ø The ramp is interlocked with passenger door.
4. Installation:

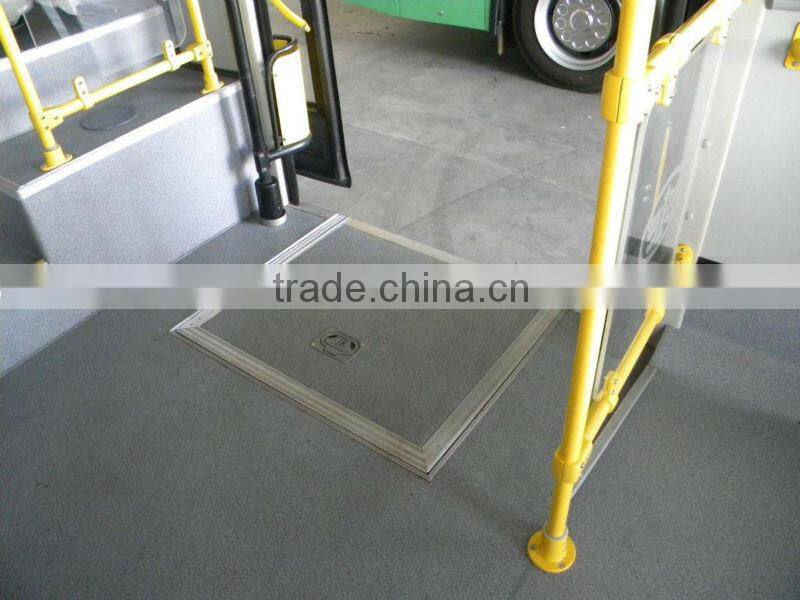

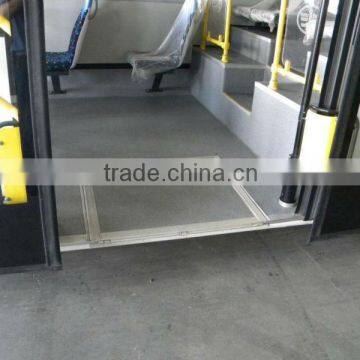

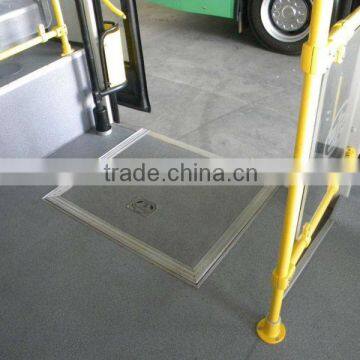

Be installed on the vehicle floor. When need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
5. DIMENSIONS
Model | Drive Mode | Platform Size(L×W) | Loading capacity | Installation |
FMWR-1A | Manual | 885 * 920mm | 350KG | Installed on the vehicle floor |
FMWR-2A | Manual | 975 * 920 mm | 350KG | |
FMWR-3A | Manual | 805 * 920 mm | 350KG | |
FMWR-4A | Manual | 735 * 920 mm | 350KG |

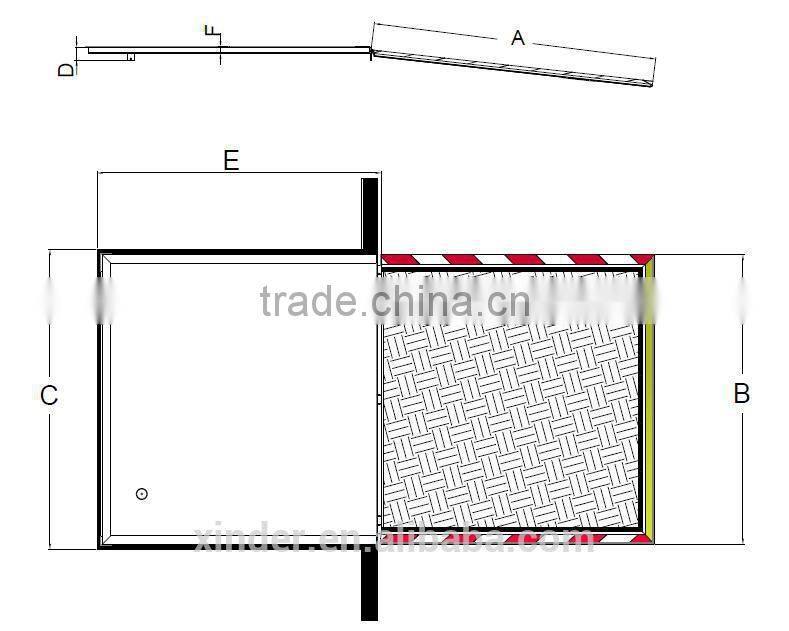

Model | Platform Net Size (A×B) | Overall Width (C) | Overall Height (D) | Overall Length (E) | Effective height(F) | Own Weight | Platform weight |
FMWR-1A | 885*920 | 952 | 40.5 | 903 | 20.5 | 32 KG | 15 Kg |
FMWR-2A | 975*920 | 952 | 40.5 | 993 | 20.5 | 35 KG | 16 Kg |
FMWR-3A | 805×920 | 952 | 40.5 | 820 | 20.5 | 30 Kg | 14 kg |
FMWR-4A | 735×920 | 952 | 40.5 | 752 | 20.5 | 28 Kg | 13 kg |

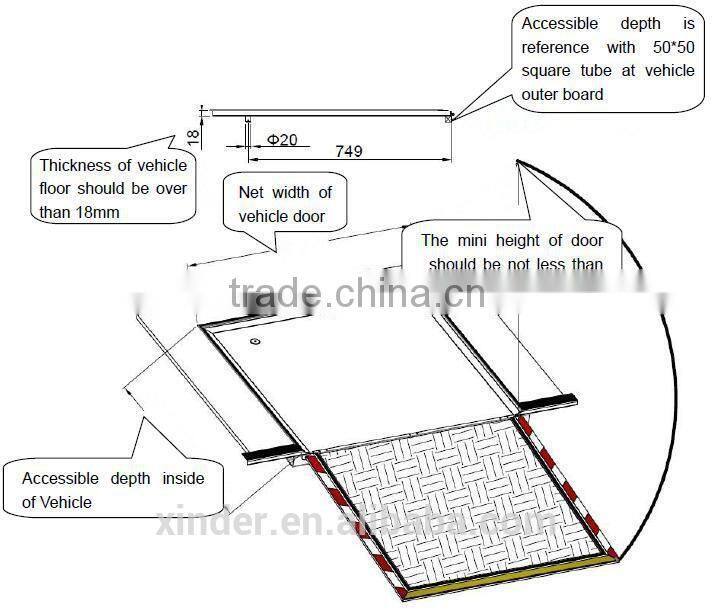

Model | Net width of vehicle door | Net height of vehicle door | Accessible depth inside Vehicle | Thickness of vehicle floor ≥ | Remark |
FMWR-1A | 932 | 873 | 891 | 19 | - |
FMWR-2A | 932 | 964 | 981 | 19 |
|
FMWR-3A | 932 | 793 | 811 | 19 |
|
FMWR-4A | 932 | 723 | 741 | 19 |
|

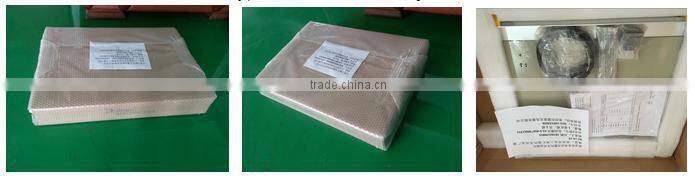

Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Delivery and shipping Details:
1)Usually be shipped by maritime transport
2)if it is landlocked countries, generally
land and sea transport.
3)15—30 days after confirmation of the purchase order
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system

WL-UVL Series Wheelchair Lift
EWR series Electric Wheelchair Ramp
FMWR series Manul Wheelchair Ramp
X-801-1 Wheelchair Restraint System

Q1.What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxesafter getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take 5 - 15 daysafter receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
Q5.Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
if you are interested in our products, we will provide satisfactory service for you!
1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
