EWR-L Electric Aluminum Ramps Sale for Disabled and Old

1.INTRODUCTION

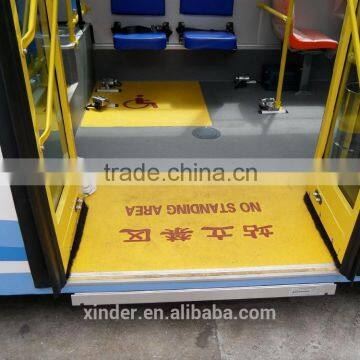

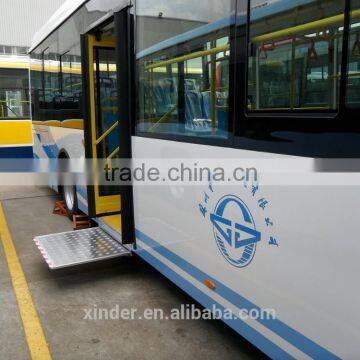

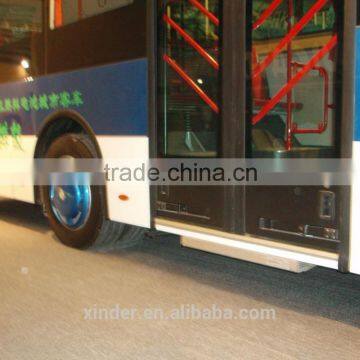

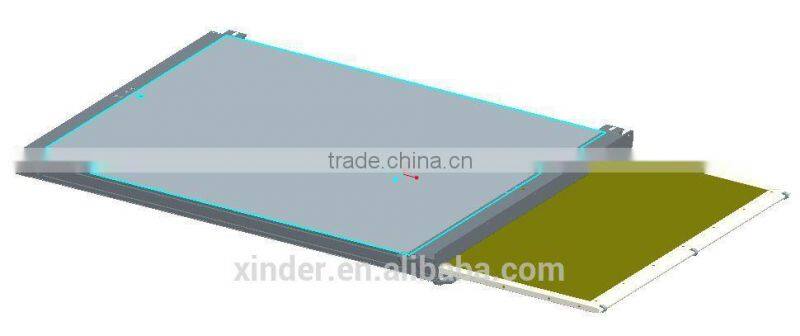

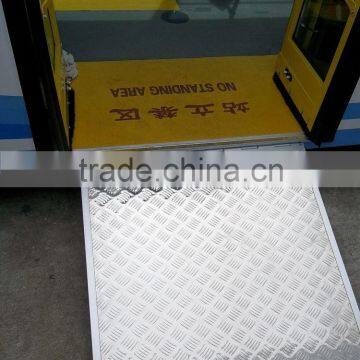

The EWR-L Electric wheelchair ramp is installed under the vehicle step floor for low-floor city bus. It is chain drove. After extending, its end can keep the same height with the vehicle floor; so wheelchair can get in or out with no barrier. The ramp platform is made of non-skid aluminum and its load capacity reaches 350kg. The EWR-L series ramp has got the CE certificate and two patents (Patent NO. ZL 02 2 83133.9 and ZL 2006 20005099.5). Thus, Passengers can enjoy its convenience regardless of its safety problem.

2.ADVANTAGES

• Interlock function with the vehicle door
• Light and non-skid aluminum platform with good corrosion resistance
• 350kg load capacity
• With sound and flashlight alarm during operation of wheelchair ramp
• With danger symbol on the outer edge of ramp
• Little installation space: it is installed under the vehicle floor, taking up no vehicle space; if not used, no requirement of the vehicle floor height.
• Manual operation supported

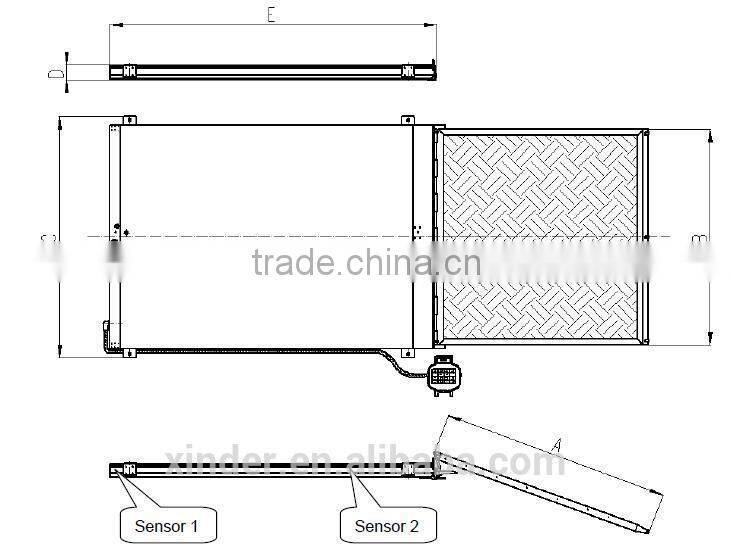

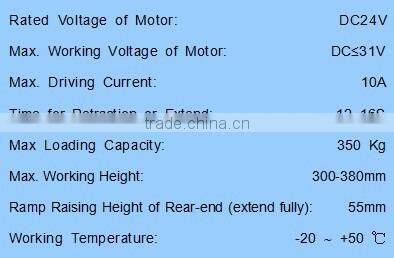

3. SPECIFICATIONS

(Unit: mm)

Note:  EWR-L1 is our standard model. If you need other specificataions, please feel free to contact us.

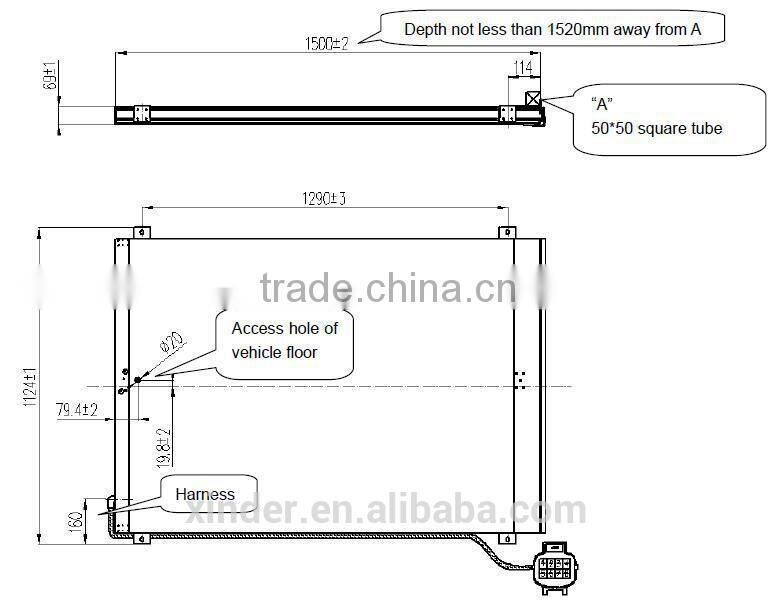

4. INSTALLATION REQUIREMENTS

Note:

1. Installed under vehicle floor;

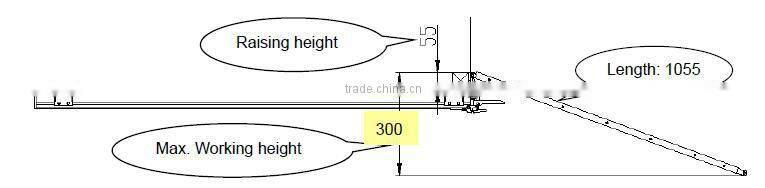

2. If extended, the platform can eliminate door threshold height to ensure platform rear-end same height with the vehicle floor.
