Bus Wheelchair Lifts UVL Series Hydraulic and Electric Wheelchair Lift With CE Certificate
US$ 20 - 4,000
/ Set
1 Set(Min. Order)
- Shanghai
- Credit Card
You May Like
-
WL-D-880 Platform Wheelchair Lift for Vans Rear Door
-
120kg Load Capacity WL-D-880 Wheelchair Lift for Van and Minivan WITH CE
-
12V and 24V Power Wheelchair Lift for Van and Minivan WITH CE
-
WL-D-880U Disabled Power Wheelchair Lift Elevator Platform for Van and Minivan With Electric Manual Wheelchairs
-
XINDER WL-D-880 Electric and Hydraulic Disabled Lift for the Elderly and Disabled
-
WL-D-880S Dual Arm Wheelchair Lift Car Lift Hoist for Van
Product Details
| Type | Other, wheelchair lift | Certification | CE | |
| Size | 1220*751 mm | Material | steel | |
| OEM No. | NO | Bus Model | HIGER | |
| Brand Name | xinder | Model Number | WL-UVL-700, WL-UVL -700 |
Product Description

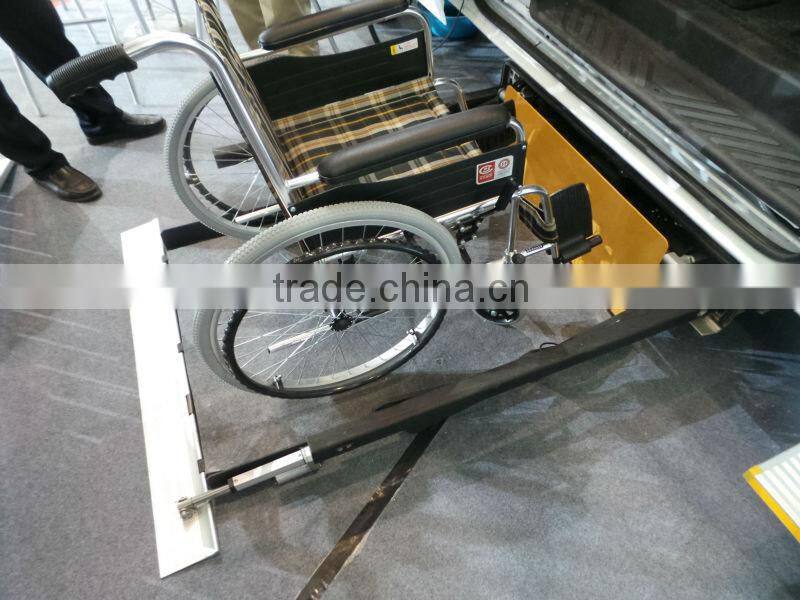

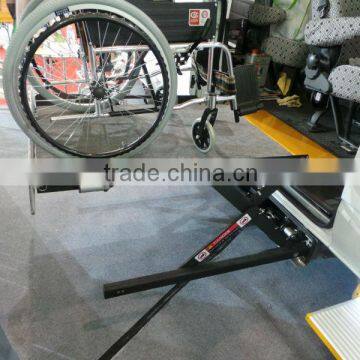

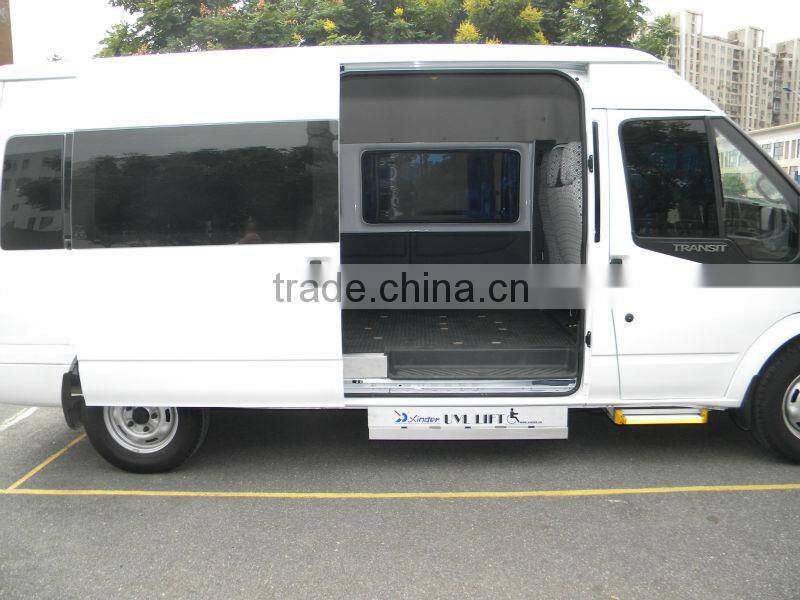

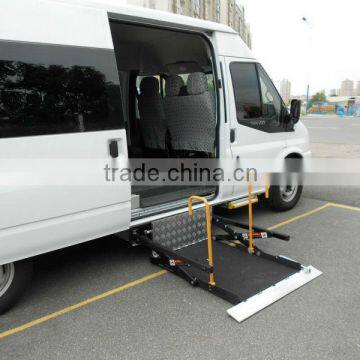

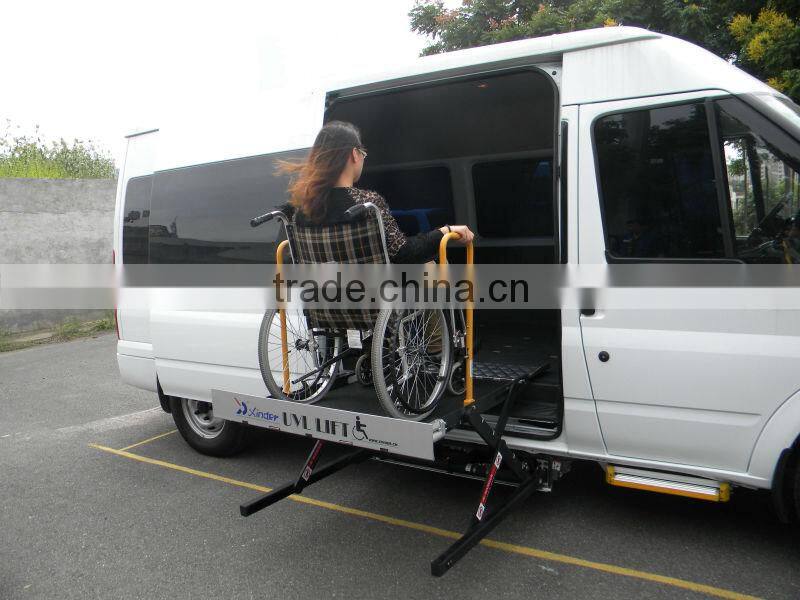

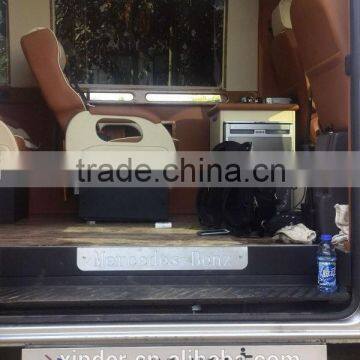

The WL- UVL Series Wheelchair Lift for bus offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.
The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.
The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.
Advantages:
- Super thin compact design
- Electric outboard rollstop and automatic inboard rollstop

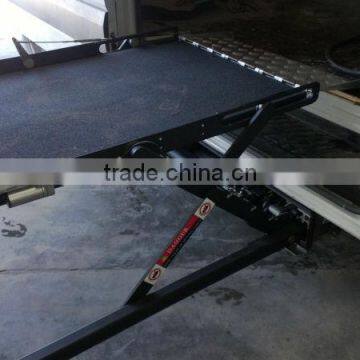

- No-skid aluminum honeycomb platform
- Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
- Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
- Side handrails (Option), for increased comfort and security
- Sound and flash light alarm during operation of platform
- Built in manual backup system
Technical specification
- Max lifting load 350 Kg
- Max lifting height 700 -1400mm
- Voltage 12 / 24 V
- Length & width of platform 1220*751 mm
Model | WL-UVL-700 | WL-UVL-700-S | WL-UVL-700(II) |
Platform size | 751*1220 | 751*1220 | 751*1220 |
Max. up stroke | 505 | 505 | 430 |
Max. down stroke | 500 | 500 | 540 |
Length required to install lift | 1940 | 1812 | 1867 |
Height of lift rear end | 133 | 133 | 133 |
Height of lift front end | 167 | 167 | 167 |
Distance between guide frame and up fitting surface | 53 | 53 | 53 |
Distance between front fitting surface and spindle of main arm | 347 | 75 | 145 |
Installation position | for the bus with three steps; installed in step | for the bus with two steps; installed under chassis | for coach or tourist bus; installed in the luggage |
