China Famous Wheelchair Lift UVL-700S-1090 for Van and Minibus for Handicapped and Elder

FOB Price

US$ 10 - 1,000,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Design	Scissor	Type	Double Cylinder Hydraulic Lift
Certification	CE	Lifting Capacity	350 kg
Lifting Height(mm)	MAX 1000m	Overall Width(mm)	750mm
Place of Origin	Jiangsu, China	Brand Name	XINDER
Model Number	WL-UVL-700-S (1090)	Warranty	12 Months

Product Description

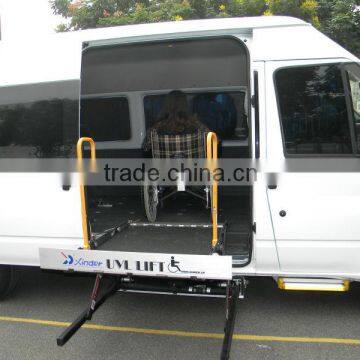

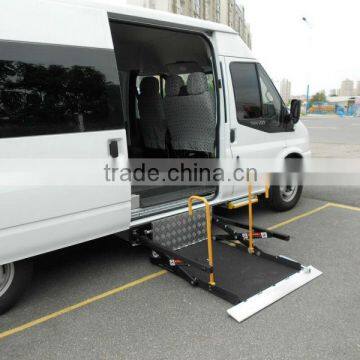

The wheelchair Lift for bus offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.

The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.

The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.

Advantages:

Super thin compact design
Electric outboard rollstop and automatic inboard rollstop
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
Main dimension parameter
Technical specification
Max lifting load 350 Kg
Max lifting height 700 -1400mm
Voltage 12 / 24 V
Length & width of platform: 1090 * 751 mm

packed in plywooden case

shiping term: FOB Shanghai
