Home > Products > Wheelchair Lift For Van > Hydraulic Platform Wheelchair Lift Van Lift for Disabled Install On MercedeBens
Hydraulic Platform Wheelchair Lift Van Lift for Disabled Install On MercedeBens
- SHANGHAI
- Credit Card
You May Like
-
XINDER WL-D-880 Hydraulic Electric Wheelchair Platform Passenger Lift for Van
-
WL-D-880S Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
-
WL-D-880 Electric and Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
-
WL-D-880S Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
-
WL-D-880 Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
-
WL-D -880S Hydraulic Wheelchair Lift Ramps on Vehicles for Disabled People
Product Details
| Place of Origin | Jiangsu, China | Brand Name | xinder | |
| Model Number | WL-UVL-700S-1090 | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 0.8kw | |
| Rated Loading Capacity | 350kg | Min. Lifting Height | 700mm | |
| Max. Lifting Height | 1600mm | Table Size | 751*1220mm | |
| Overall Dimensions | 2060*1165*365 | Weight | 190kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. INFORMATION

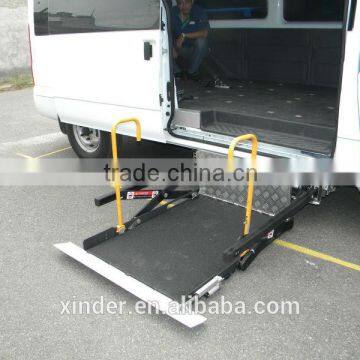

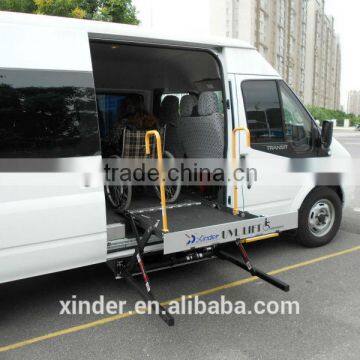

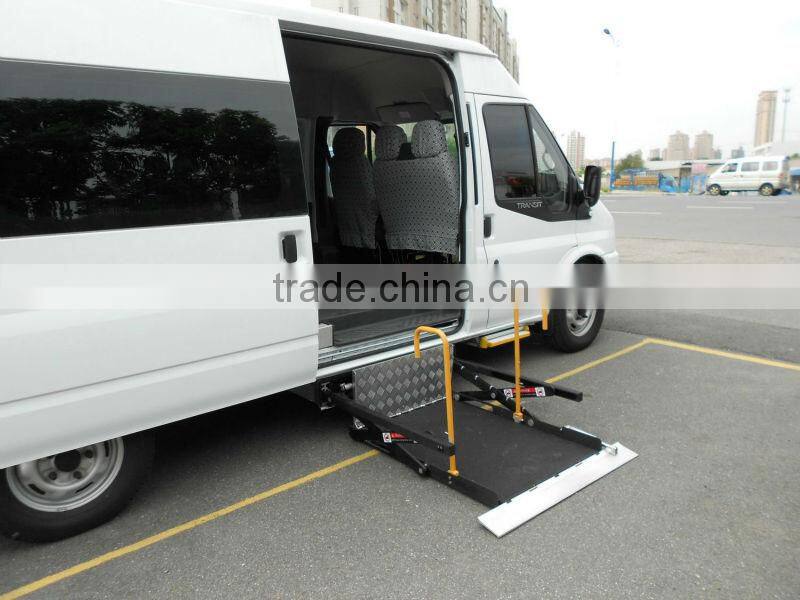

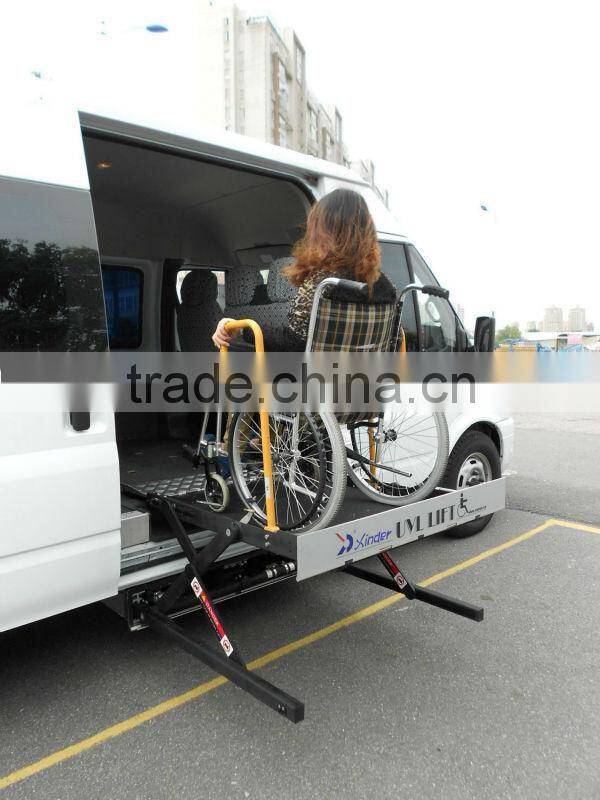

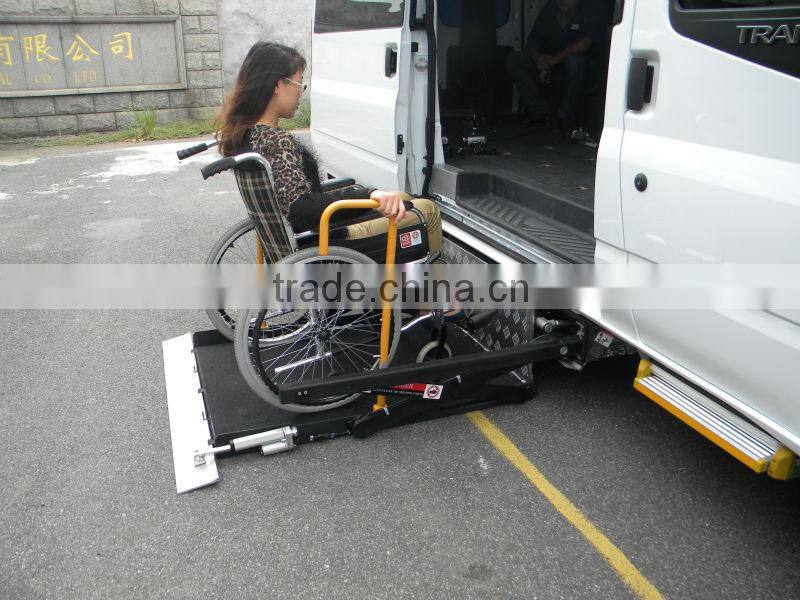

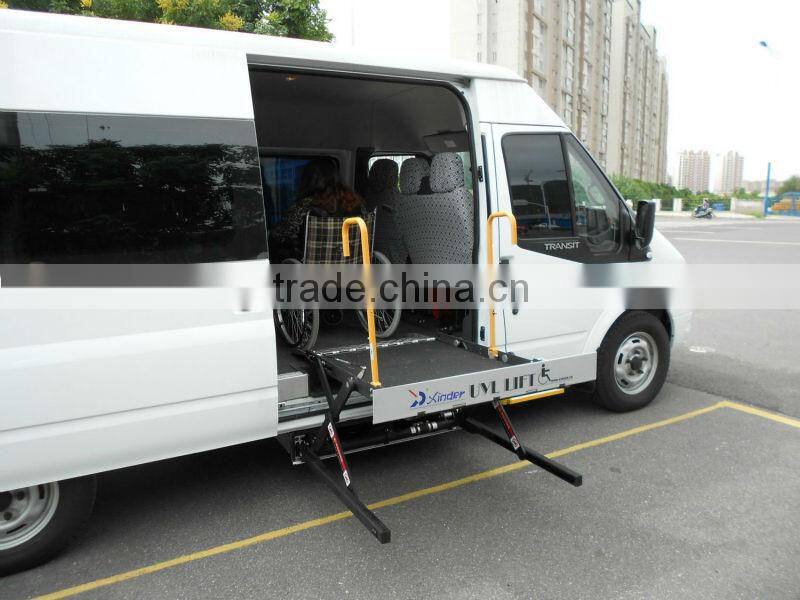

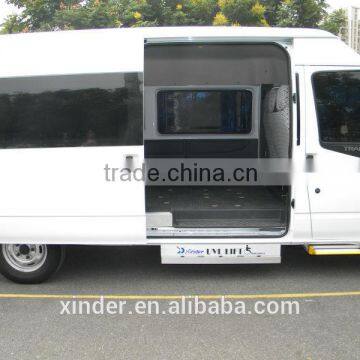

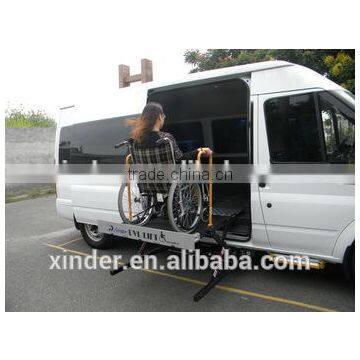

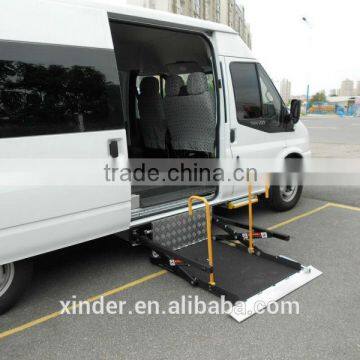

WL.UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable,
withload capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating
switches.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.
It is important to user safety that lift operator.be completely familiar with the operating instructions. Once the lift is installed, it is very important that the lift be properly maintained by following the Xinder recommended cleaning, lubrication, and inspection instructions. If there are questions about this series lift, or additional copies are needed, please contact Xinde-Tech.
2. ADVANTAGES
Ø Electric outboard rollstp and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
3.TECHNICAL SPECIFICATION
Model | Voltage | Motor power | Pressure | Cylinder diameter&stroke |
UVL-700/1000 /1300 | 12V/24V | 0.8Kw | 2500Psi | Φ60X70 unidirectional operation |
Max lifting load | Max lifting height | Voltage | Len & width of platform |
350 Kg | 700 -1600mm | 12/24 V | 751*1220/751*1297mm |
¨ Raise lift platform: motor drive, hydraulic function;
¨ Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
¨ Raise platform manually: operate manual pump;
¨ Lower platform manually: rotate button of manual pressure release valve with specialized tool;
¨ Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
¨ Model & Capacity of hydraulic oil: L-HV46
Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Delivery and shipping Details:
1)Usually be shipped by maritime transport
2)if it is landlocked countries, generally
land and sea transport.
3)15—30 days after confirmation of the purchase order
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system

WL-UVL Series Wheelchair Lift
EWR series Electric Wheelchair Ramp
FMWR series Manul Wheelchair Ramp
X-801-1 Wheelchair Restraint System

Q1.What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goodsin your branded boxesafter getting your authorization letters.
Q2.What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it willtake 5 - 15 daysafter receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4.Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
Q5.Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Q6.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
if you are interested in our products, we will provide satisfactory service for you!
1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
