Induction Gold Melting Furnace
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Electric Power Saver for Induction Melt Furnace Equipment
-
Metal Heat and Melting High Frequency Furnace With ISO
-
Good Quality High Frequency Induction Heating Treatment Machine for Melting
-
Poland Popular 50kgs Silver Melting Induction Equipment
-
Superaudio Freuquency Induction Melting Machine for Gold Silver Copper
-
90KW Induction Melting Equipment for Aluminium Cast
Product Details
| Condition | New | Type | Induction Furnace | |
| Usage | Melting Furnace | Place of Origin | Henan, China | |
| Brand Name | yongda | Model Number | WZP-35 | |
| Voltage | 380V+/-10% | Power(W) | 35kw | |
| Dimension(L*W*H) | main machine 665*400*730mm | Weight | 115kgs | |
| Certification | ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Induction gold melting furnace
About melting:
Melting | Heating metals in a non-conductive crucible to enable the metal being melted down to liquid form. | Melting of gold, silver, copper, aluminium , semiconducting materials, etc. | Selection of frequency depends on capacity of furnace. The capacity is smaller,the frequency is higher, the capacity is bigger,the frequency is lower. | The power depends on the weight of melted metal and melting time for one furnace |
Melting time
The maximum heating capacity of every melting furnace in the below table, for cold furnace, each furnace melting time is 50-60 minutes, for hot furnace, every furnace melting time is 20-30 minutes.
Technical specifications of induction gold melting furnace
Model | Steel and stainless steel | Gold, silver, copper | Aluminum |
WZP-15 | ----- | 10kg | 3kg |
WZP-25 | 5kg | 20kg | 6kg |
WZP-35 | 10kg | 30kg | 10kg |
WZP-45 | 18kg | 50kg | 20kg |
WZP-70 | 25kg | 100kg | 30kg |
WZP-90 | 40kg | 120kg | 40kg |
WZP-110 | 50kg | 150kg | 50kg |
WZP-160 | 100kg | 250kg | 100kg |
WZP-300 | 200kg | 500kg | 200kg |

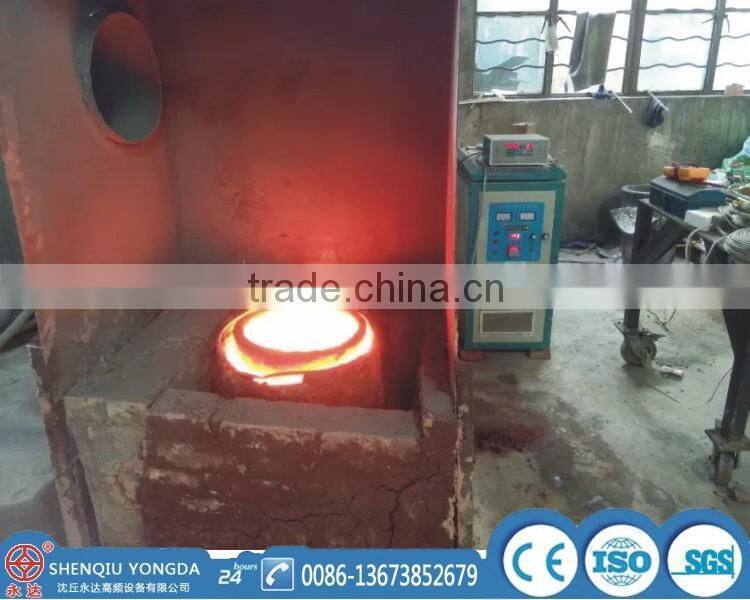

Pictures of induction gold melting furnace
WZP-35 and WZP-15 KW
Features of induction gold melting furnace
1. Induction melting machine has good electromagnetic stirring ,melting metal in favor of a uniform temperature and organizations ,in favor of scum and reduce inpurities.
2. Wide frequency range,from 1KHZ to 20KHZ,be considering the amount of melting,electromagnetic stirring,heating efficiency,noise at work and other factors to design induction coils and equipped with compensation capacitor ,determine the output frequency
3. Save at least above 20% energy than SCR medium frequency device.
4. Machines has small size,light weight,melting capacity is from a few kilograms to hundreds of kilograms,a large range to choose,both for factory use, can also used for schools and institutes, a small amount of melting.
