5kgs, 10kgs Gold Induction Melting Furnace
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Portable and High Efficiency Crucibles Copper Melting
-
2015 Hot Sale Induction Melting Machine for Gold Silver Copper
-
Customized Services Medium Frequency Induction Melting Furnace
-
15kw 25kw 35kw Forging Furnace Induction Heating Machine
-
Gold Jewelry Induction Melting Furnace for Sale
-
Small Portable High Frequency Induction Melting Furnace
Product Details
| Condition | New | Type | Induction Furnace | |
| Usage | Melting Furnace | Place of Origin | Henan, China | |
| Brand Name | yongda | Model Number | WZP-15 | |
| Voltage | 180V-240V | Power(W) | 15KW | |
| Dimension(L*W*H) | 410*200*420mm | Weight | 28KGS | |
| Certification | ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
small induction furnace1. save energy 30% igbt system
2. gold,silver,copper,nickel,zinc melt
3. induction coils
5kgs, 10kgs gold induction melting furnace

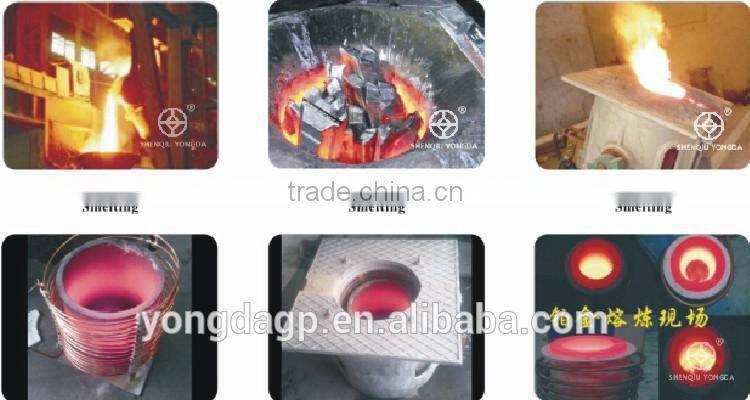

Main applications of induction melting furnace
It can be used for melting copper,aluminum,gold,silver,zinc,nickle etc. Medium frequency induction melting furnace is used for melting steel, stainless steel,copper,aluminum ,gold and silver etc. other material.
WZP-15KW technical parameters
Work power: sigle phase 220V 50-60HZ
Output current: 4-40A
Oscillation frequency: 15-30KHZ
Cooling water pressure: 0.1MPA
Technical specifications of induction melting furnace
The maximum heating capacity of every melting furnace in the below table, for cold furnace, each furnace melting time is 50-60 minutes, for hot furnace, every furnace melting time is 20-30 minutes.
Model | Steel and stainless steel | Gold, silver, copper | Aluminum |
WZP-15 | ----- | 10kg | 3kg |
WZP-25 | 5kg | 20kg | 6kg |
WZP-35 | 10kg | 30kg | 10kg |
WZP-45 | 18kg | 50kg | 20kg |
WZP-70 | 25kg | 100kg | 30kg |
WZP-90 | 40kg | 120kg | 40kg |
WZP-110 | 50kg | 150kg | 50kg |
WZP-160 | 100kg | 250kg | 100kg |
WZP-300 | 200kg | 500kg | 200kg |
Features of induction melting furnace
1. Induction melting machine has good electromagnetic stirring ,melting metal in favor of a uniform temperature and organizations ,in favor of scum and reduce inpurities.
2. Wide frequency range,from 1KHZ to 20KHZ,be considering the amount of melting,electromagnetic stirring,heating efficiency,noise at work and other factors to design induction coils and equipped with compensation capacitor ,determine the output frequency
3. Save at least above 20% energy than SCR medium frequency device.
4. Machines has small size,light weight,melting capacity is from a few kilograms to hundreds of kilograms,a large range to choose,both for factory use, can also used for schools and institutes, a small amount of melting.
More information about induction melting furnace ,please feel free to contact Ms. Jessie .
