Home > Products > Furnace > Yosion Technology YX-CF50 Fire Assay Cupellation Furnace;Ash Blowing Refining;Muffle Furnace

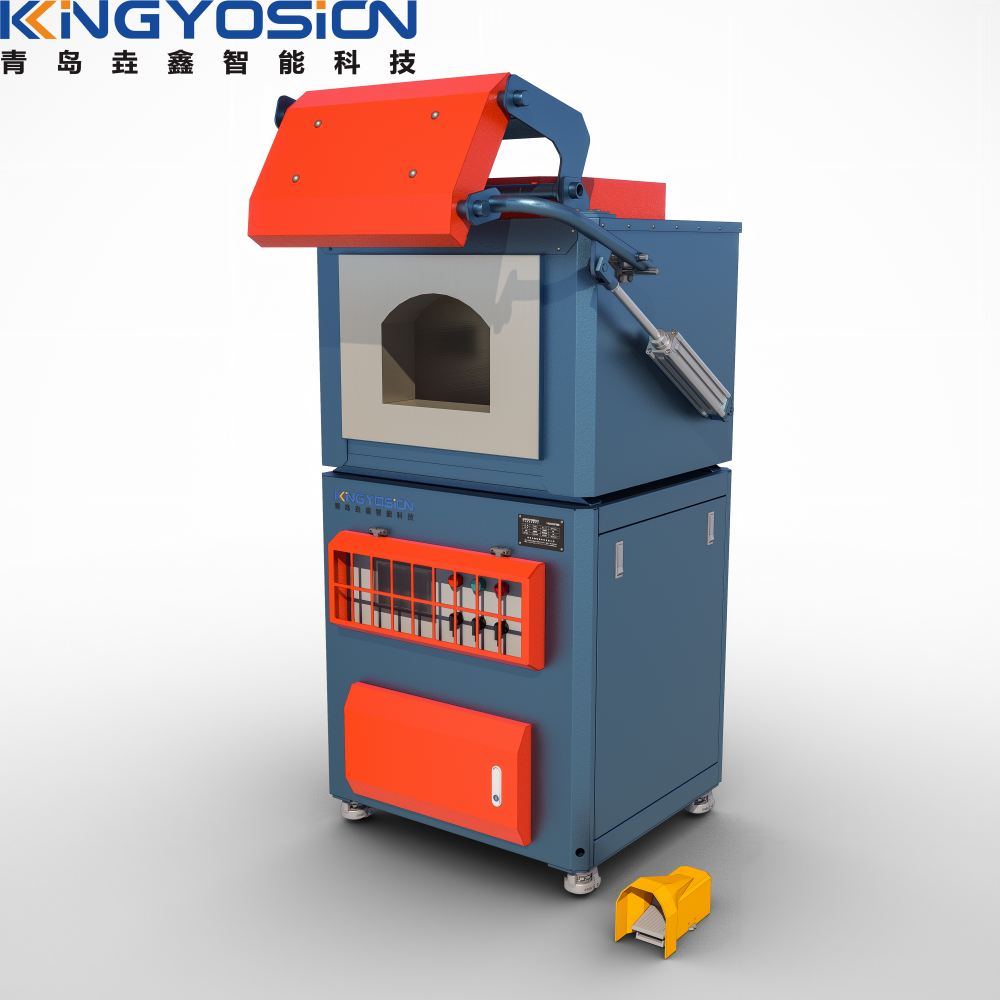

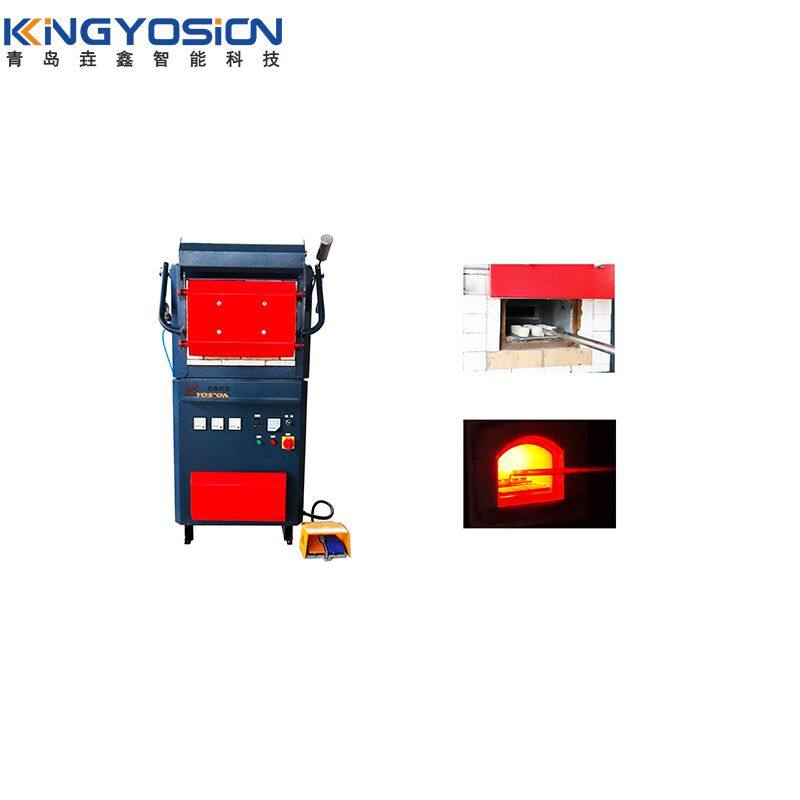

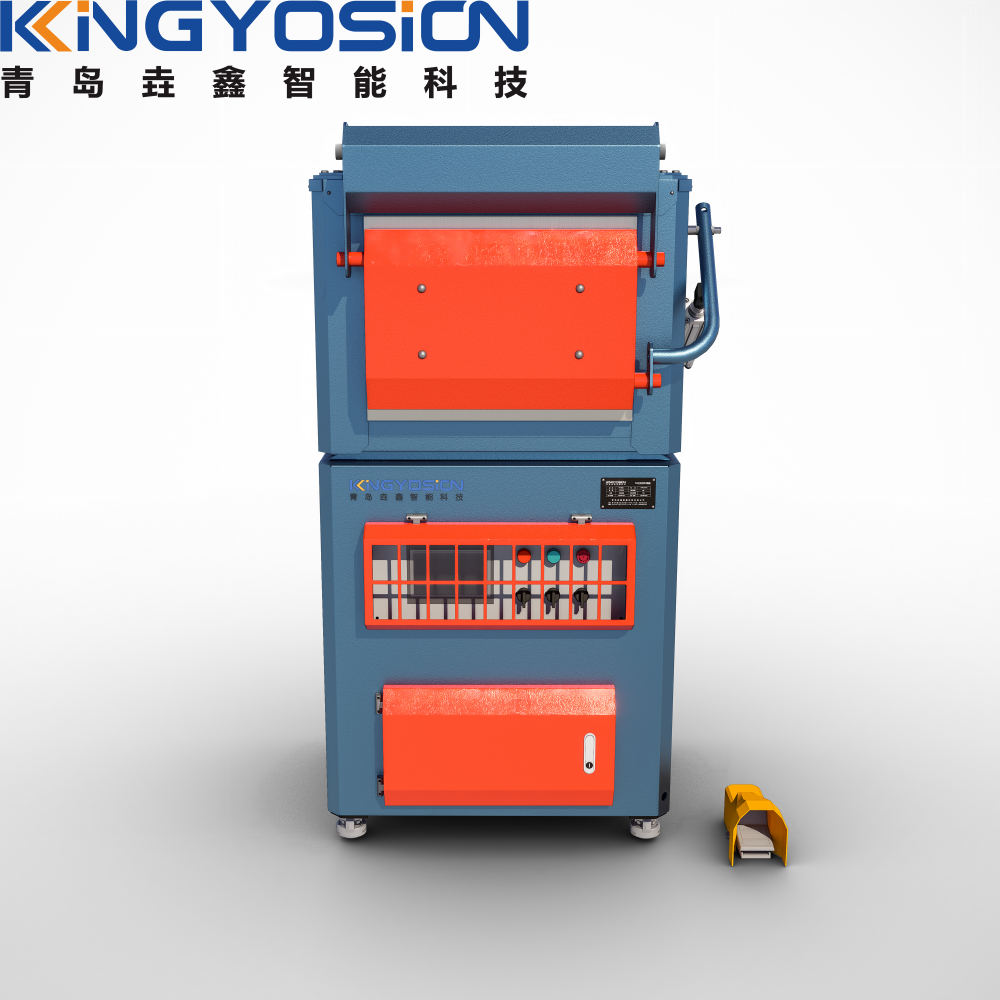

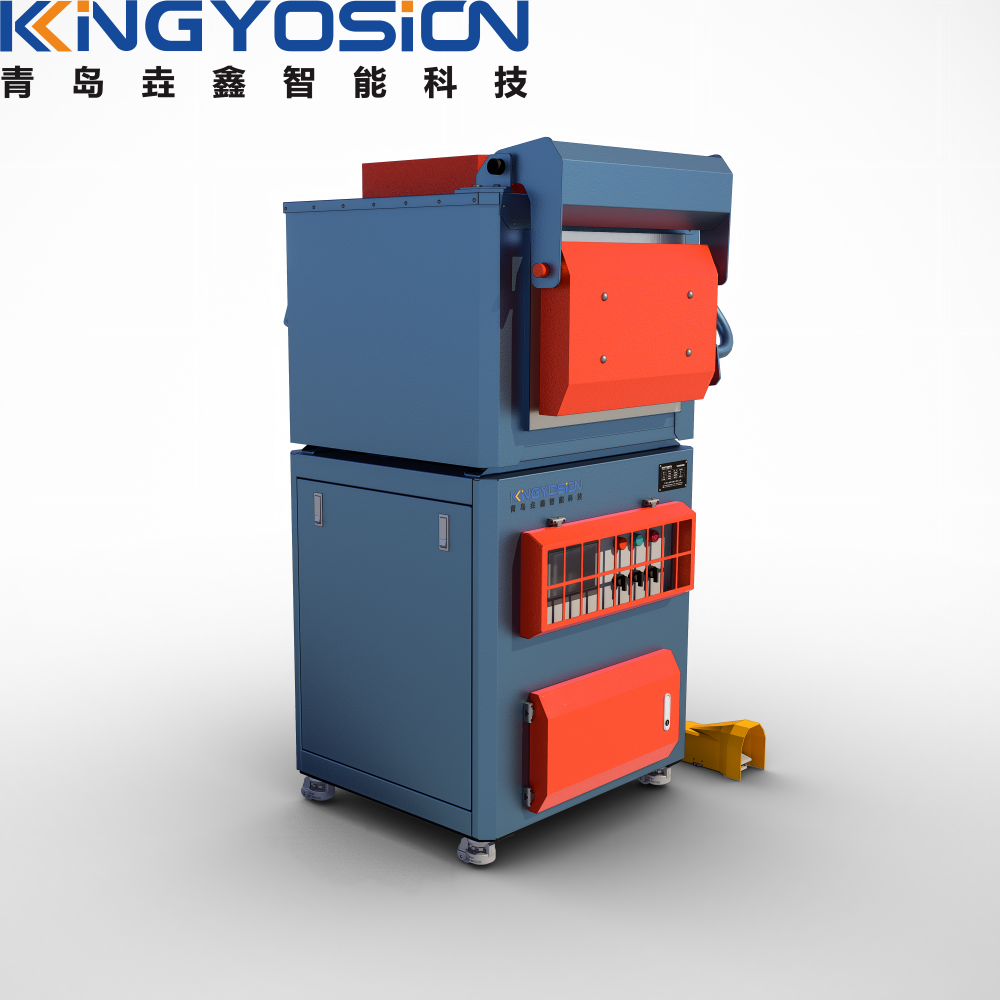

Yosion Technology YX-CF50 Fire Assay Cupellation Furnace;Ash Blowing Refining;Muffle Furnace
1 - 2 Sets
≥3 Sets
- Qingdao,Shandong
- T/T L/C PayPal D/P Western Union Other
- 45 days
You May Like
-
Yosion Technology YXRM-3A-1800 Bottle Roller; Rod Mill;Dual Use Model
-
Yosion Technology YXRM-3A-1800H Sealed Rod Mill;Ball Mill;Fine Grinding of Samples
-
Yosion Technology YX-11000RH Pulse Dust Collector;Filter Cartridge;Dust Removal System
-
Yosion Technology YH-9623A Drying Oven;Industrial Oven;Sample Preparation Equipment
-
Yosion Technology YX-RSD05 Desktop Rotary Sample Divider;Sample Splitting;Sample Preparation Equipment
-
Yosion Technology YX-RSD40 Rotary Sample Divider;Sample Splitting;Sample Preparation Equipment
Product Details
| Brand Name | Kingyosion | Place of Origin | China | |
| Model Number | YX-CF50 | Type | Resistance Furnace | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Dimension(L*W*H) | 900*1100*1650 | Voltage | 380V/50Hz | |
| Usage | Melting Furnace | Condition | New | |
| Power(W) | 18000 |
Product Description
Electric Cupellation Furnace
Usage Introduction:
The cupellation furnace is used in the experiment and production of electronics, ceramics, metallurgy, glass, new material development and other fields. It is mainly used for cupellation in fire assay test.
Product Features:
l Easy to use.
l Heating element: 12 silicon carbon rods; continuous heating can extend the service life.
l Temperature is monitored and modulated automatically by a Type K thermocouple and Omron temperature controller, pre-set for a maximum temperature of 1200 degrees Celsius. This controller is simple to operate. It shows PV and SV data.
Technical Parameter:
Model | YX-CF50 | YX-CF100 |
Input voltage | 380V | 380V |
Output voltage | 90V-150V | 90V-150V |
Power | 18kW,Three-phase | 35kW,Three-phase |
Muffle Size | 460Dx260Wx210H(Internal) 490Dx310Wx250H(External) | 575Lx485Dx295H (Internal) 610Lx540Dx350H(External) |
Max. Temperature | 1200℃ | 1200℃ |
Crucible specifications and quantity | Takes 50 x 6a, 7a, 7as cupels or 36 x 8a cupels at one time | Takes 100 x 6a, 7a, 7as cupels or 72 x 8a cupels at one time |
Door Opening | manual or pneumatic(air pipe diameter 8 mm , pressure 0.4-0.8 MPA)
| Pneumatic, pipe diameter 8 mm , pressure 0.4-0.8 MPA |
