Induction Heating Equipment for Shaft Quenching
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Small Size Easy Install and Operating Induction Heat Treating Machine With CE
-
Best Drive Shaft Induction Heating Equipment
-
20 Year Experienced Yongda Co Induction Heating Machine for Metal Hardening
-
90KVA Surface Induction Heating Machine for Metal Quenching
-
70KW Siemens IGBT HF Induction Heating for Forging
-
China Yongda Made Hammer Ends Hardening Induction Heating Machine
Product Details
| Place of Origin | Henan, China | Brand Name | yongda | |
| Model Number | WZP-160KW | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Induction heating equipment for shaft quenching
Yongda induction heating equipment has the advantages of :
1.High efficient: energy saving,environmental protection
2.Heating fast:The fastest heating speed is less than 1 second
3.Heating wide:
can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :
the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:
can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect:
Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection:
has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable,
by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage

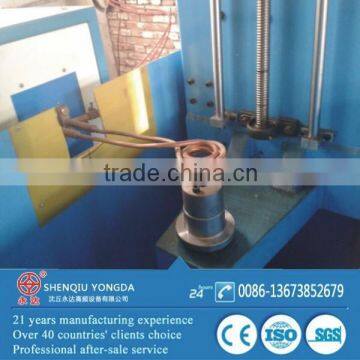

Induction heating equipment for shaft quenching with CNC quenching machine tool
Technical sepecifications of WZP-160KW induction heating equipment for shaft quenching
Model | WZP-160kw |
Work power | 3 phase 380V+/-10%, 50-60HZ |
Input voltage | 320V-420V |
Input current | 6-300A |
Input power | 10-160KW(power adjusted stepless) |
Oscillation frequency | 10-50 KHZ |
Cooling water pressure | 0.3 MPA |
Size of geneartor: Transformer | 850*600*1330mm 780*540*520mm |
Weight of generator ; transformer | 147kgs; 108kgs |
Water cooling protection point | Below 50 degree celsius |
Application of induction heating equipment for quenching
(1) Quenching shaft:
Crankshaft, rocker shafts, camshafts, hollow shaft, spline shafts, axle, steering axis, drive shaft
(2) Quenching tools, cutting class, measuring tools, calipers quenching
A. knives: axe, electric knife, scissors, knives, planer knives, screwdrivers, harvester blade, sickle
B. cut categories: garden shears, scissors aviation, Scissors
C. Pliers: bolt cutters, pipe wrenches, pliers, nutcracker, pliers, needle nose pliers, beauty clamp (diagonal pliers)
D. Saws: Hoist, live pull saws,
E. other categories: masonry chisel, hammer, ratchet wrench, Yang Gao, power tools, claw hammer
(3) Gear quenching: Electric Tools gears, automotive gears, marine gears, bevel gears
(4) Auto Parts category quenching:
Car hooks, splines, rear axle, fork, rocker, valve, jack head, sprockets, crank, oil pump, fuel injectors, clutch plates,
Shaft ferrule
(5) Quenching mechanical parts category:
Driving wheels, guide rails, rollers, vibration pump oscillator, mold, pneumatic components, pump rotor, rod dies, aircraft hanging roller quenching instrument lathe chuck, drawing dies, winch rollers, rail spike, bar quenching, excavator teeth hardening

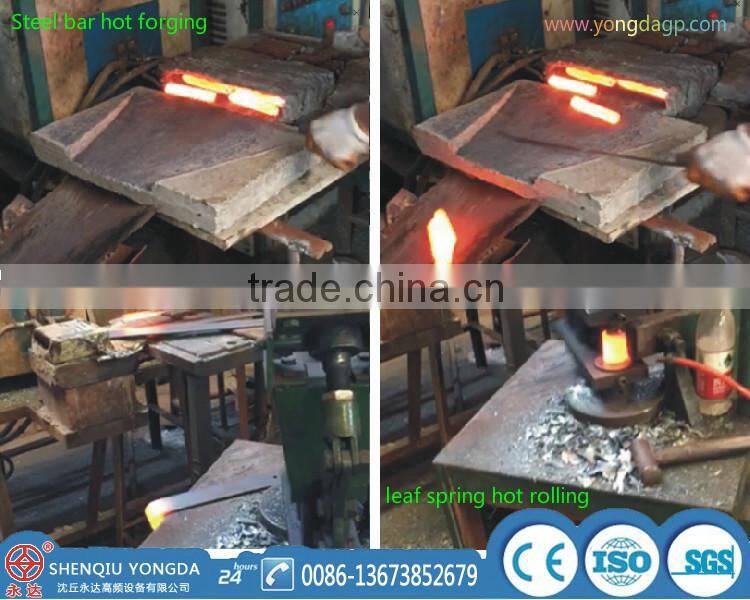

Induction heating equipment for shaft forging
Forging, rolling class
1 The variety of hot-rolled twist drill.
2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
3 drill steel, tempering brazing, forging, extrusion heating.
Packing for induction heating equipment
1.Two wooden cases (plywood),as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train etc.
Sincerely provide service for you!
