Eco-friendly Heating and Cooling Induction Machine

FOB Price

US$ 680 - 9,800 / Set

1 Set(Min. Order)

Port Shanghai Qingdao Tianjin Guangzhou or as you request
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	yongda
Model Number	WZP-160		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Eco-friendly heating and cooling induction machine

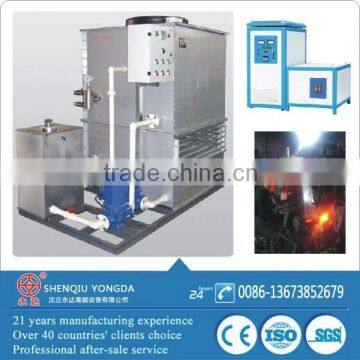

WZP-160(85kw)induction machine matching with YDL-120T closed cooling tower

Product Description

Technical parameters of heating and cooling induction machine

Model	WZP-160
Work power	3 phase 380V+/-10%, 50-60HZ
Input voltage	320V-420V
Input current	6-160A
Input power	3-90KW(power adjusted stepless)
Oscillation frequency	15-30 KHZ
Cooling water pressure	0.2 MPA
Size of geneartor: Transformer	665400870MM 660490435mm
Weight of generator ; transformer	74kgs; 55kgs
Water cooling protection point	Below 50 degree celsius

Applications of cooling and heating induction machine:

quenching categories:
1. All kinds of gears, sprockets, shaft quenching;
2. a variety of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching.
3. All kinds of engine parts, gear parts hardened surface;
4 bed machine tool of machine tool industry guide of quenching (lathe, milling machine, planer, punch, etc.).
5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching.

Second, Diathermy categories:
1. All kinds of bolt, nut hot forging;
2 hot-rolled cannabis cobalt;
3 diameter of 50 within all parts through hot forging;

Third, welding class:
1 piece of diamond drill bit composite welding;
2 of carbide blade, saw blade welding;
3. All kinds of cutter, drill head, drill pipe, coal drill bits, drill bits and other mine parts of the wind welding;

Cooling :closed cooling tower (optional )

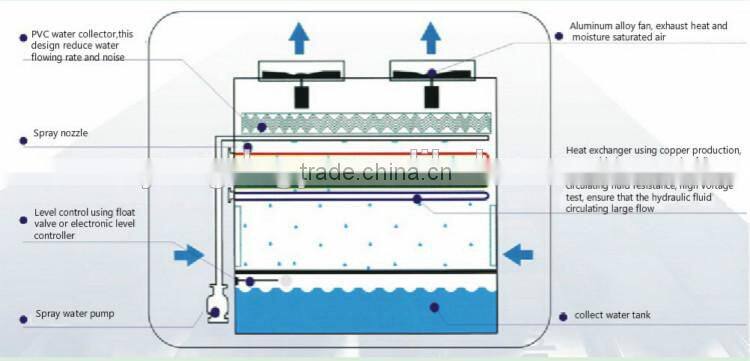

Work theory of closed cooling tower

Advantages of closed cooling tower

Closed cooling tower= Heat exchanger + open cooling tower + water pump + water pool + connecting tube line

1.improve production efficiency, softening water cycle, no scaling, no clogging, no loss;
2.extend equipment life, ensure equipment reliability and security, stable running, reducing the failure to prevent accidents;
3.full closed loop, no impurities to enter, no medium evaporation, pollution;
4.improve plant utilization factor, no pool, reduce the area to save space;
5.small footprint, easy to install, move, layout, compact structure;
6.easy operation, stable, high degree of automation;
7.operating cost savings, multi-mode automatic switching, intelligent control;
8.wide usage, non-corrosive medium for heat exchanger, can be direct cooled;
9.low whole life operating costs, high initial investment, but operating and maintenance costs low.

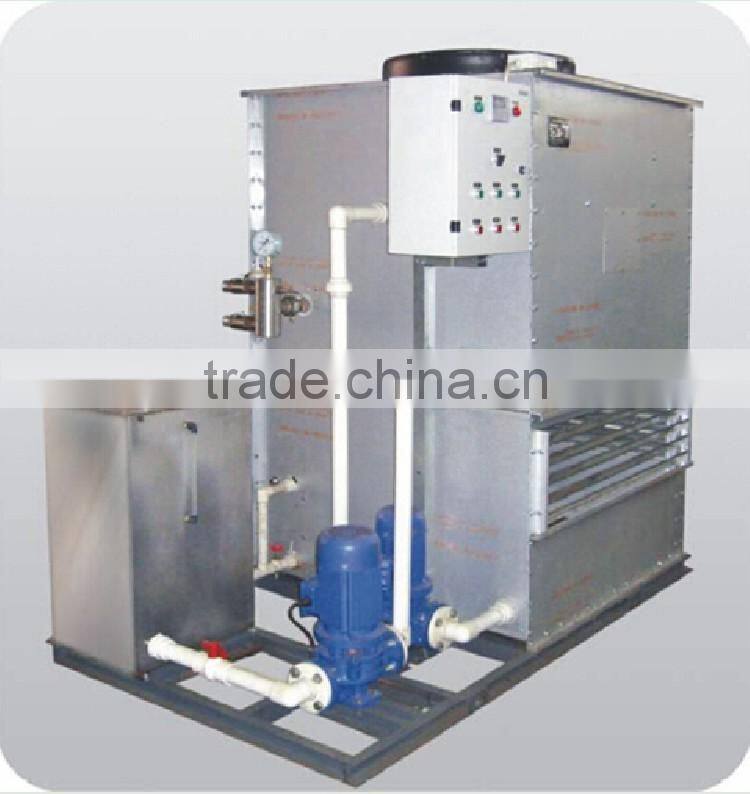

Parameters of closed cooling tower of YDL-120T

No.	Item	Parameters	Quantity
1	Model	YDL-120T	/
2	Cooling water amount	20T/h	/
3	Fan	700FZL-C6P33	2 sets
4	spray water pump and pipes	50-100I(A)	1 piece
	circulating water tank	160L	1 pcs
5	Material of heat exchanger	T2 de-acidification bare copper tube160.7mm (6floors28pcs *0.95m	1 set
	Circulating water pump	50-160	2 pcs
6	Dimension	2800MM1000MM2150MM

Application pictures of induction heating machine

Packing for heating induction machine: wooden cases(plywood)
