Electromagnetic Induction Heating System Induction Forging Steel Rod Machine
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Yongda IGBT High Frequency Induction Heating Machine for Brazing 10-80KHZ
-
Top Quality Portable Induction Heating
-
China Manufacturer Factory Direct Sale Super Audio Frequency Induction Heating Machine
-
Reasonable Price With High Quality Induction Heating Unit
-
Sales Made in China Portable Induction Heating Machine
-
China Wholesale Cheap Saw Blade Induction Heating
Product Details
| Place of Origin | Henan, China | Brand Name | yongda | |
| Model Number | WZP-160KW | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Electromagnetic induction heating system induction forging steel rod machine
We are electromagnetic induction heating factory , which produce high frequency ,supersonic frequency, meidum frequency induction heating machine of metal work piece.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.
We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.
Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.
Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
First, good energy saving effect: compared to the original resistance wire heating cycle saving effect in more than 30%, relatively different raw materials, production of different products, energy-saving effect change. But in the current energy-saving products have been used up to 80% efficiency
Second, good environmental effect: the production environment can significantly reduce the temperature.
Third, long service life: continuous operation temperature of the heating cycle is only about 100 ° C, there is no problem to replace the heating cycle, relative to the original resistance wire heating to reduce the secondary input.
Fourth, improve product yield: As the heat efficiency of the product, with uniform heating, can significantly reduce the heating time and increase product yield.
Technical paramters of 160kw electromagnetic induction heating system
Model | WZP-160 |
Work power | 3 phase 380V+/-10%, 50-60HZ |
Input voltage | 320V-420V |
Input current | 6-300A |
Input power | 10-160KW(power adjusted stepless) |
Oscillation frequency | 10-80 KHZ |
Cooling water pressure | 0.3 MPA |
Size of geneartor: Transformer | 850*600*1330mm 780*540*520mm |
Weight of generator ; transformer | 147kgs; 108kgs |
Water cooling protection point | Below 50 degree celsius |

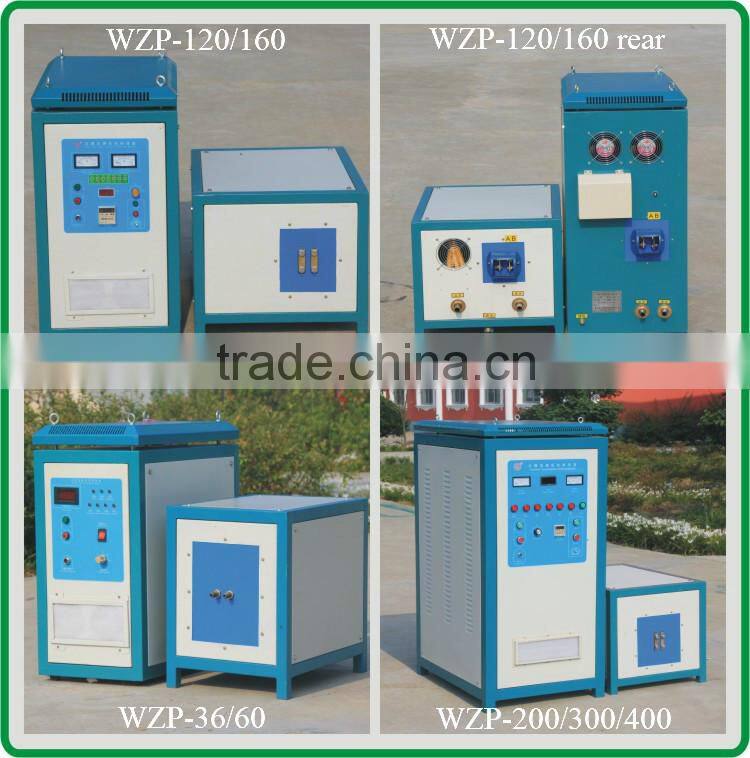

Photo of Yongda electromagnetic induction heating system

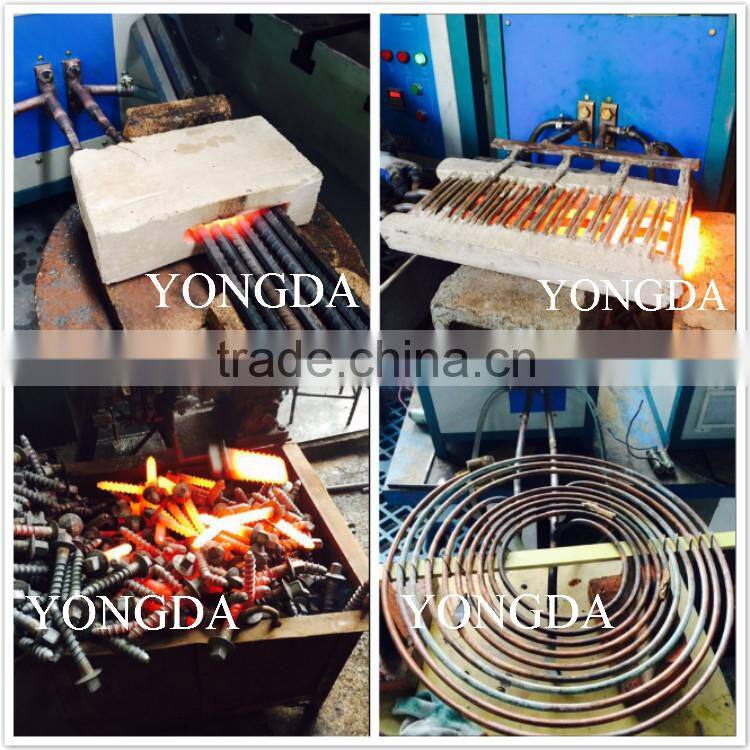

Applications of induction heating system
Magnetic induction heating system induction forging
1, hot forging all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed, rose type.

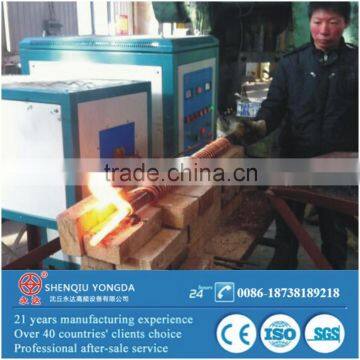

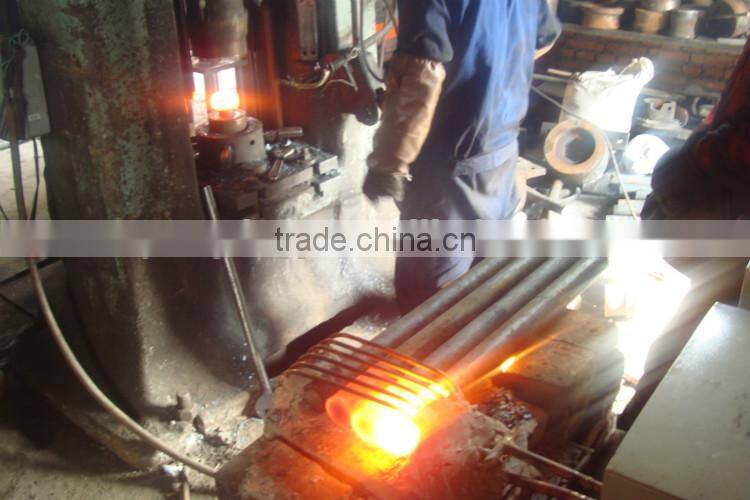

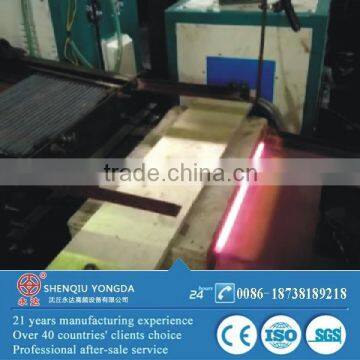

Induction heating steel rod end for forging
Magnetic induction heating system induction heat treatment:
2, heat treatment various types of hardware tools, electric, hydraulic, pneumatic components, automotive, motorcycle parts and other mechanical parts of the surface of the metal, the hole, partial or total quenching. Such as: hammer, knife, scissors, pliers and all kinds of shafts, cams, sprockets, gears, valves, ball stud, a large machine tool guide, ductile iron quenching.

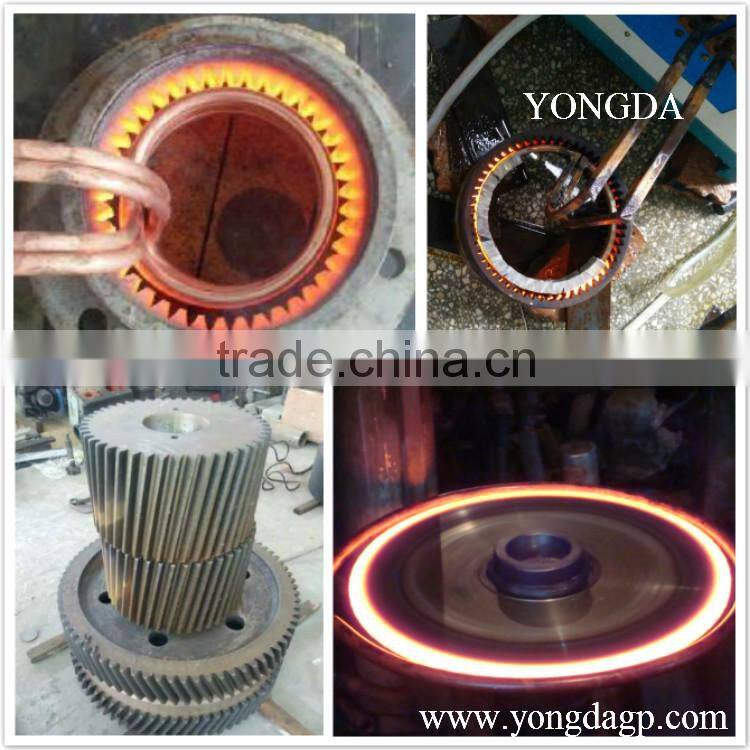

Heat treatment gears induction heating system
Magnetic induction heating system induction brazing welding:
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.

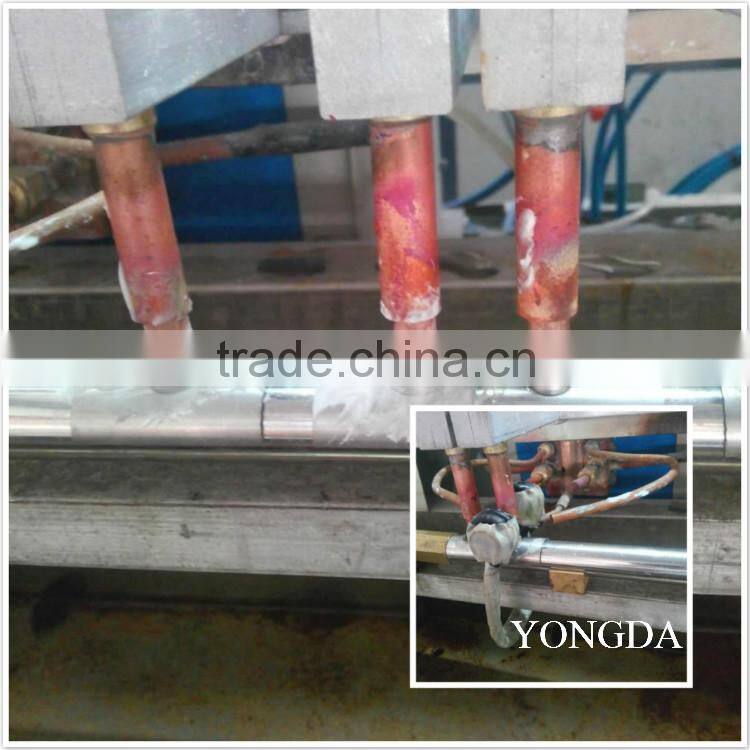

Induction brazing welding copper tube
4, metal melting: melting gold, silver and copper.
5, other areas of plastic pipe heating cable, heating wire coating; food, beverage, pharmaceutical industry, the use of aluminum foil.

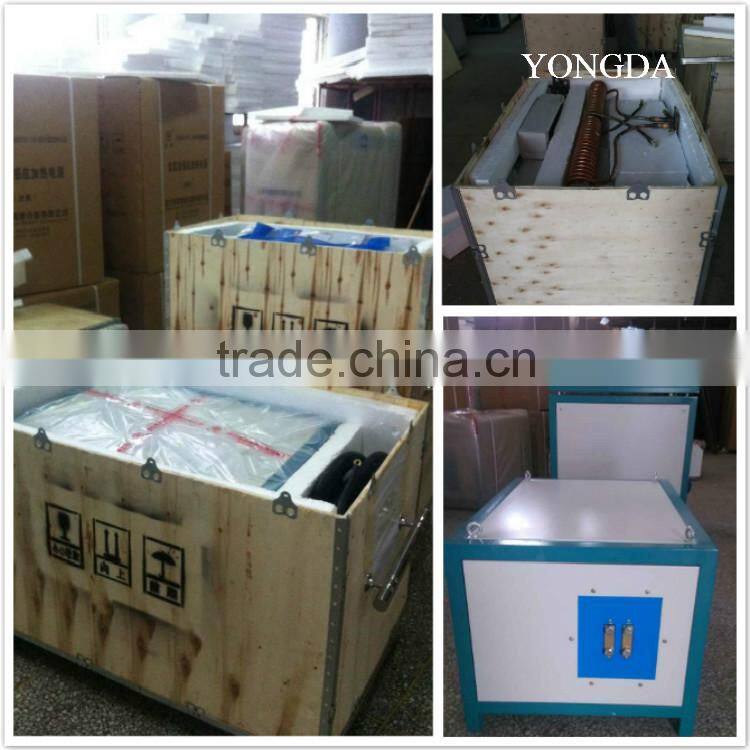

Packing for electromagnetic induction heating system
1.Two wooden cases (plywood) ,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train etc.
Sincerely provide service for you!
