Industrial Used Metal Heat Treating Induction Quenching Power Supply
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Mechanical Parts Induction Heat Treatment Quenching Machine
-
Yongda Hot Sale IGBT Portable Induction Hardening Machine
-
High Frequency Metal Bar Induction Heating Machine:forging/quenching
-
China IGBT Super Audio Hardening Induction Heating Machine
-
Output Current 6-160A Hot Forging Induction Heating Power (WZP-90KW)
-
Induction Heating Equipment for Shaft Quenching
Product Details
| Place of Origin | Henan, China | Brand Name | yongda | |

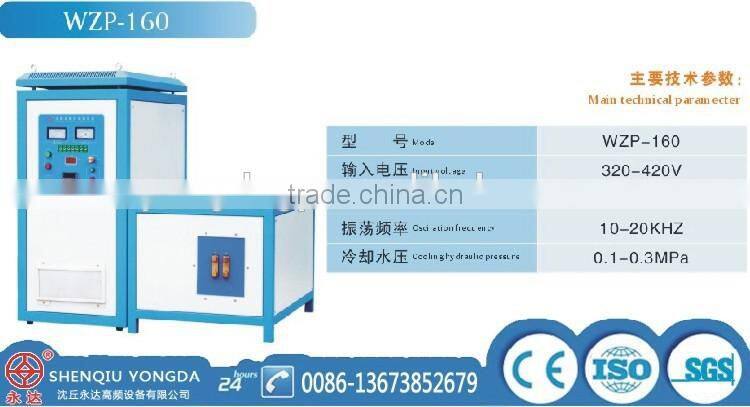

| Model Number | WZP-160 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Industrial used metal heat treating induction quenching power supply
Definition of heat treating /quenching
Heat treating /Quenching | Heat treating is the controlled heating and cooling of a metal or alloy to change its crystal structure while maintaining its shape.and then the metal obtains different mechanical properties,E.g. Hardening ,annealing,normalizing and tempering | Hardening and annealing of gear, arbor wheel, chain gear, guide rail of machine tool, hardware tools, copper wire, copper belt , stainless steel and
automobile/ motorcycle fittings. | Frequency of hardening depends on the depth of quenching layer: the depth is deeper, the frequency is lower; the depth is shallower, the frequency is higher. 0.1-0.5mm, 150-700Khz 0.2-0.8mm, 100-250Khz 1.0-1.5mm, 40-50KHZ 1.5-2.0mm, 20-25Khz 2.0-3.0mm, 8-20 KHZ 3.0-5.0mm, 4-8Khz 5.0-8.0mm, 2.5-4Khz | The hardening area is bigger , the power is higher; the hardening area is smaller, the power is lower, the hardening depth is shallower, the power is higher;
the hardening depth is deeper, the power is lower. E.g. Hardening of diameter 20 axis surface: WZP-60,WZP-90 |
Technical parameters of induction quenching power supply
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Induction quenching power supply can heat treating the following workpieces:
(1) Shaft:
Crankshaft, rocker shafts, camshafts, hollow shaft, spline shafts, axle, steering axis, drive shaft
(2) tools, cutting class, measuring tools, calipers quenching
A. knives: axe, electric knife, scissors, knives, planer knives, screwdrivers, harvester blade, sickle
B. cut categories: garden shears, scissors aviation, Scissors
C. Pliers: bolt cutters, pipe wrenches, pliers, nutcracker, pliers, needle nose pliers, beauty clamp (diagonal pliers)
D. Saws: Hoist, live pull saws,
E. other categories: masonry chisel, hammer, ratchet wrench, Yang Gao, power tools, claw hammer
(3) Gear: Electric Tools gears, automotive gears, marine gears, bevel gears
(4) Auto Parts category:
Car hooks, splines, rear axle, fork, rocker, valve, jack head, sprockets, crank, oil pump, fuel injectors, clutch plates,
Shaft ferrule
(5) mechanical parts category:
Driving wheels, guide rails, rollers, vibration pump oscillator, mold, pneumatic components, pump rotor, rod dies, aircraft hanging roller quenching instrument lathe chuck, drawing dies, winch rollers, rail spike, bar quenching, excavator teeth hardening
Packing of induction quenching power supply
1.Two wooden cases (plywood)
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
Induction quenching power supply , high quality, competitive price, rewarding your trust !
Sincerely provide service for you!
