Home > Products > HYDRAULIC PILE BREAKER/CUTTER > crushing concrete hydraulic pile breaker/cutter

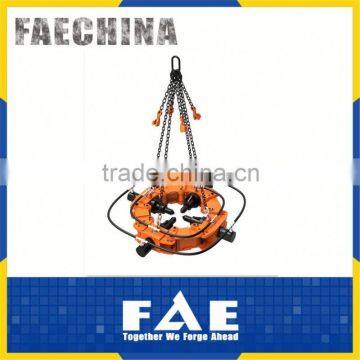

crushing concrete hydraulic pile breaker/cutter
USD $1 - $30,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | FAPB-400B/500/606 hydraulic pile breaker |
Product Description
crushing concrete hydraulic pile breaker/cutter
Product Description
(1) The mechanical stress is put pressure on the structural parts not on the connection when it worked and the oil cylinder which is specially-made by Sany used the double oil seal.
(2) There are 7 kinds of pin axle holes to match different shaft. To prevent the form of pile breaker changed when it worked.
(3)The shackle loading weight is 3 tons .Meet the national standards.
(4)The chain hoist is adjustable and the loading weight is 4 tons.
What are FAE pile cutting breaker specification?
| FAPB-315A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 6 | Φ300~Φ350 mm | ≥12 t | 1000 kg | ≤450 mm |
| 7 | Φ350~Φ450 mm | ≥12 t | 1100 kg | ≤450 mm |
| 8 | Φ450~Φ550 mm | ≥16 t | 1200 kg | ≤450 mm |
| 9 | Φ550~Φ650 mm | ≥16 t | 1300 kg | ≤400 mm |
| 10 | Φ650~Φ760 mm | ≥20 t | 1400 kg | ≤400 mm |
| 11 | Φ760~Φ860 mm | ≥20 t | 1500 kg | ≤400 mm |
| 12 | Φ860~Φ960 mm | ≥20 t | 1600 kg | ≤400 mm |
| 13 | Φ960~Φ1050 mm | ≥20 t | 1700 kg | ≤400 mm |
| FAPB-380A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 8 | Φ600 mm | ≥20 t | 2200 kg | ≤400 mm |
| 9 | Φ700 mm | ≥20 t | 2430 kg | ≤400 mm |
| 10 | Φ800~Φ900 mm | ≥25 t | 2660 kg | ≤400 mm |
| 11 | Φ1000 mm | ≥25 t | 2890 kg | ≤350 mm |
| 12 | Φ1100 mm | ≥25 t | 3120 kg | ≤350 mm |
| 13 | Φ1200 mm | ≥28 t | 3350 kg | ≤350 mm |
| 14 | Φ1300~Φ1400 mm | ≥28 t | 3580 kg | ≤350 mm |
| 15 | Φ1500 mm | ≥30 t | 3810 kg | ≤350 mm |
| 16 | Φ1600 mm | ≥30 t | 4040 kg | ≤300 mm |
| 17 | Φ1700 mm | ≥35 t | 4270 kg | ≤300 mm |
| 18 | Φ1800 mm | ≥35 t | 4500 kg | ≤300 mm |
| Performance Parameter | |||
| Type | FAPB-400B | FAPB-500 | FAPB-606 |
| Range of pile diameter(mm) | 300~400mm | 400~500mm | 350~500mm |
| Max. rod pressure | 320kN | 320kN | 690kN |
| Maximum stroke of hydraulic cylinder | 150mm | 150mm | 180mm |
| Max. pressure hydraulic cylinder | 34.3MPa | 34.3MPa | 34.3MPa |
| Max. flow single cylinder | 25L/min | 25L/min | 25L/min |
| Cut the number of pile/8h | 160 | 120 | 40-100 |
| Height for cut pile each time | ≤300mm | ≤300mm | ≤400mm |
Matched machinery tonnage (excavator) | ≥8t | ≥15t | ≥35t |
| Work status dimensions | 604×594×286mm | 595×980×275mm | 908×680×380mm |
| Overall weight | 0.65t | 0.96t | 3.7t |
What are FAE pile cutting breaker?
Details of pile breaker
What are FAE job site of pile cutting breaker?
Packaging & Shipping
Our Services
Why Choose us?
Company Information
Company View
Our Certifications
What are FAE business cooperation?
FAQ
FAQ
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!!
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
Any further information,please see the following product:
Contact Us
- Hunan Fae Heavy Industries Co., Ltd.
- Contact nameEason wong Chat Now
- Phone86-0731-85718177
- AddressJinzhou New Industries District,Ningxiang,Changsha,Hunan Province,China, Changsha, Hunan
