Home > Products > HYDRAULIC PILE BREAKER/CUTTER > Cutting Concrete Square Pile Equipment Hydraulic Pile Cutter Breaker
Cutting Concrete Square Pile Equipment Hydraulic Pile Cutter Breaker
US$ 1 - 30,000
/ Unit
1 Unit(Min. Order)
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | FAPB-400B/500/606 hydraulic pile cutter |
Product Description
cutting concrete square pile equipment hydraulic pile cutter breaker
Product Description
What are FAE pile cutting breaker specification?
| FAPB-315A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 6 | Φ300~Φ350 mm | ≥12 t | 1000 kg | ≤450 mm |
| 7 | Φ350~Φ450 mm | ≥12 t | 1100 kg | ≤450 mm |
| 8 | Φ450~Φ550 mm | ≥16 t | 1200 kg | ≤450 mm |
| 9 | Φ550~Φ650 mm | ≥16 t | 1300 kg | ≤400 mm |
| 10 | Φ650~Φ760 mm | ≥20 t | 1400 kg | ≤400 mm |
| 11 | Φ760~Φ860 mm | ≥20 t | 1500 kg | ≤400 mm |
| 12 | Φ860~Φ960 mm | ≥20 t | 1600 kg | ≤400 mm |
| 13 | Φ960~Φ1050 mm | ≥20 t | 1700 kg | ≤400 mm |
| FAPB-380A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 8 | Φ600 mm | ≥20 t | 2200 kg | ≤400 mm |
| 9 | Φ700 mm | ≥20 t | 2430 kg | ≤400 mm |
| 10 | Φ800~Φ900 mm | ≥25 t | 2660 kg | ≤400 mm |
| 11 | Φ1000 mm | ≥25 t | 2890 kg | ≤350 mm |
| 12 | Φ1100 mm | ≥25 t | 3120 kg | ≤350 mm |
| 13 | Φ1200 mm | ≥28 t | 3350 kg | ≤350 mm |
| 14 | Φ1300~Φ1400 mm | ≥28 t | 3580 kg | ≤350 mm |
| 15 | Φ1500 mm | ≥30 t | 3810 kg | ≤350 mm |
| 16 | Φ1600 mm | ≥30 t | 4040 kg | ≤300 mm |
| 17 | Φ1700 mm | ≥35 t | 4270 kg | ≤300 mm |
| 18 | Φ1800 mm | ≥35 t | 4500 kg | ≤300 mm |
| Performance Parameter | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||
What are FAE pile cutting breaker?

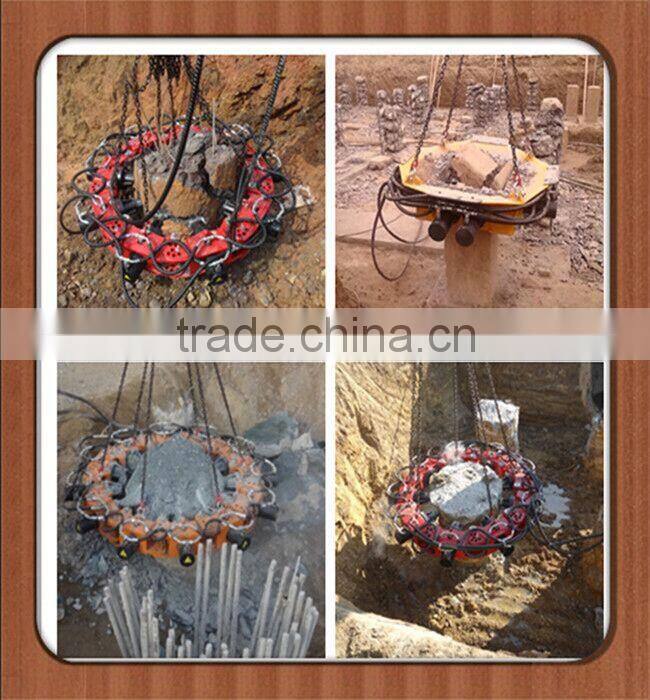

What are job sites of FAE pile cutting breaker?
Packaging & Shipping
Our Services
Why Choose us?
Company Information
Company View
Our Certifications
What are FAE business cooperation?
FAQ
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
Contact Us
- Hunan Fae Heavy Industries Co., Ltd.
- Contact nameEason wong Chat Now
- Phone86-0731-85718177
- AddressJinzhou New Industries District,Ningxiang,Changsha,Hunan Province,China, Changsha, Hunan
