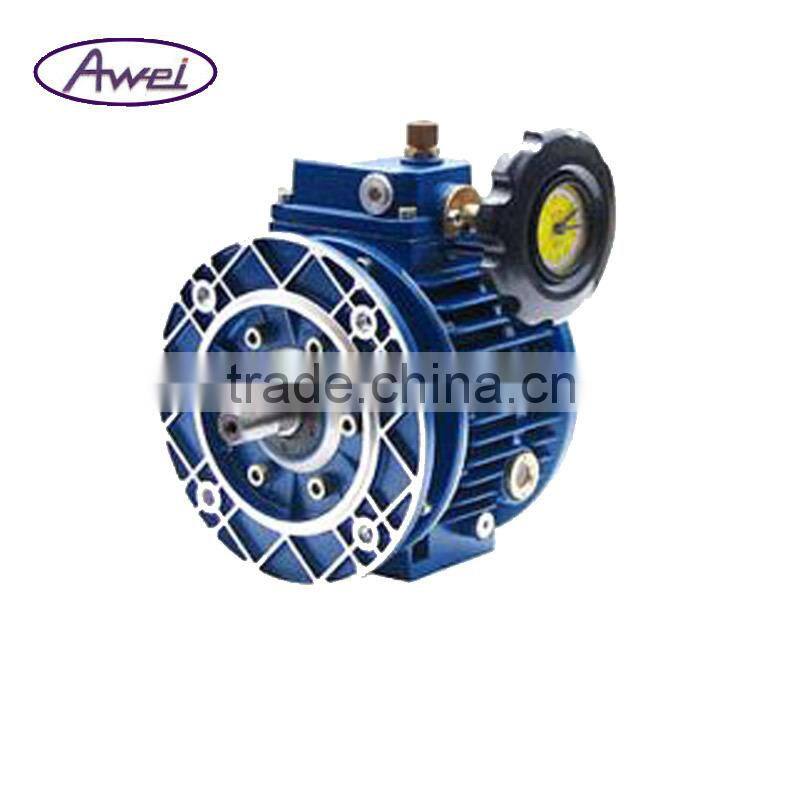

Stepless Speed Mechanical Speed Variator
US$ 48 - 500
/ Set
1 Set(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Gearing Arrangement | Planetary | Output Torque | 7-2100N.M | |
| Rated Power | 0.18-7.5KW | Input Speed | 1400rpm | |
| Output Speed | 7-7000rpm | Place of Origin | Zhejiang, China | |
| Model Number | RV025-RV150 + UDL0.18-UD7.5 | Brand Name | AOWEI |
Product Description
Specifications

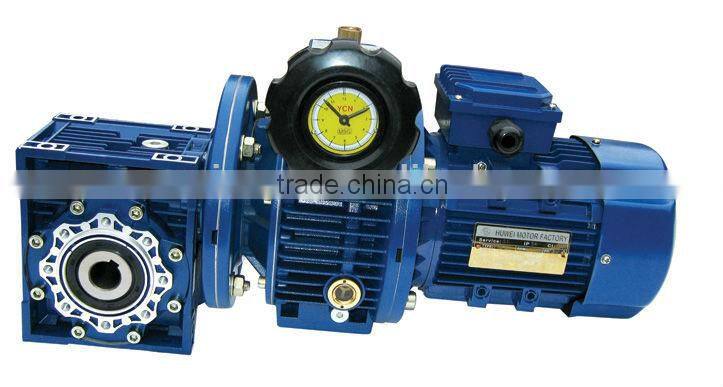

Mechanical speed Variator with worm gearboxSpeed variator and worm gearbox
Speed variator + Reducer
Wide Ratio
UDL/ UD series
MB series
Product Description
Features
- Precision in speed regulation: ± 0.5/1%
- Speed adjustment :1.4-7
- Worm gearbox: NMRV025 to NMRV150, ratio range: 5-100

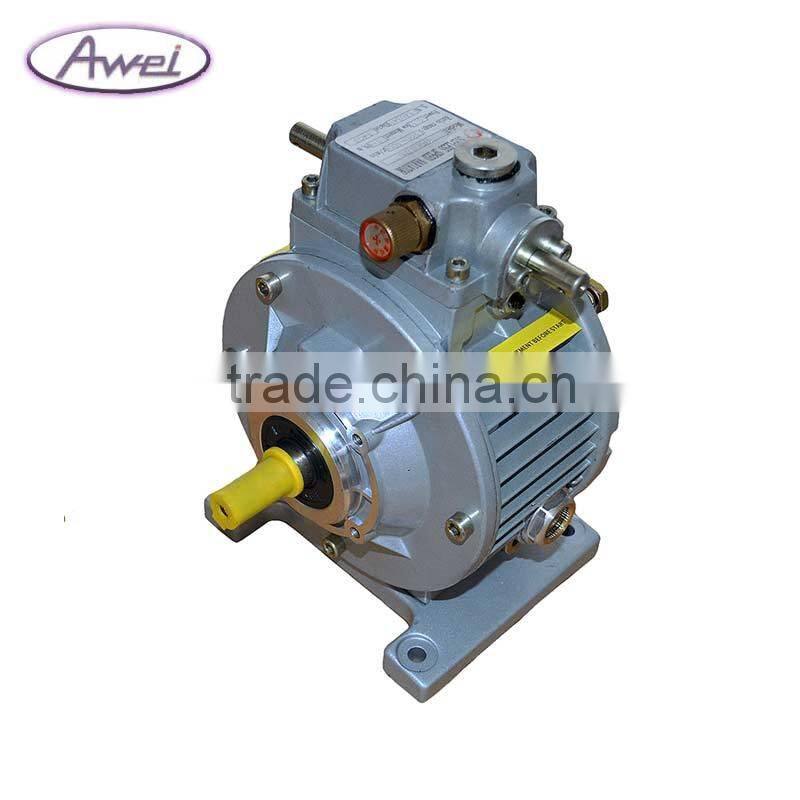

- The Variator for Aluminum case from UDL0.18 to UDL0.75, and iron case from UD1.1 to7.5
- Electric Motor: 0.18 to 7.5KW.
- Internal parts made with selected materials and highly controlled machinings

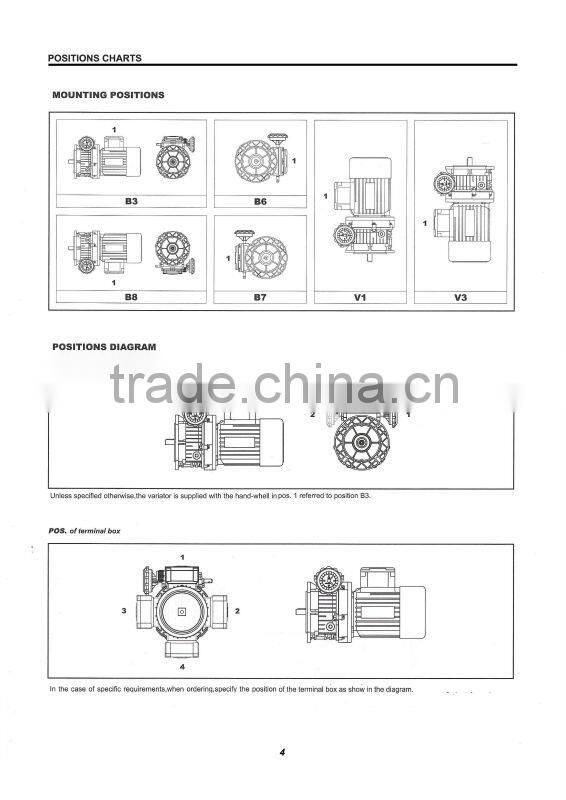

- Structure: base-mounted, input shaft, input flange, additional single or double output shafts
- High transmissible torque Good temperature change resistance
- High reliability and extremely noiseless operation.
- Wide range of application
Applications
- Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry that require to lower the speed driven by motors or other engines.
UDLseries stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, communications, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation, It is a good companion for your production.

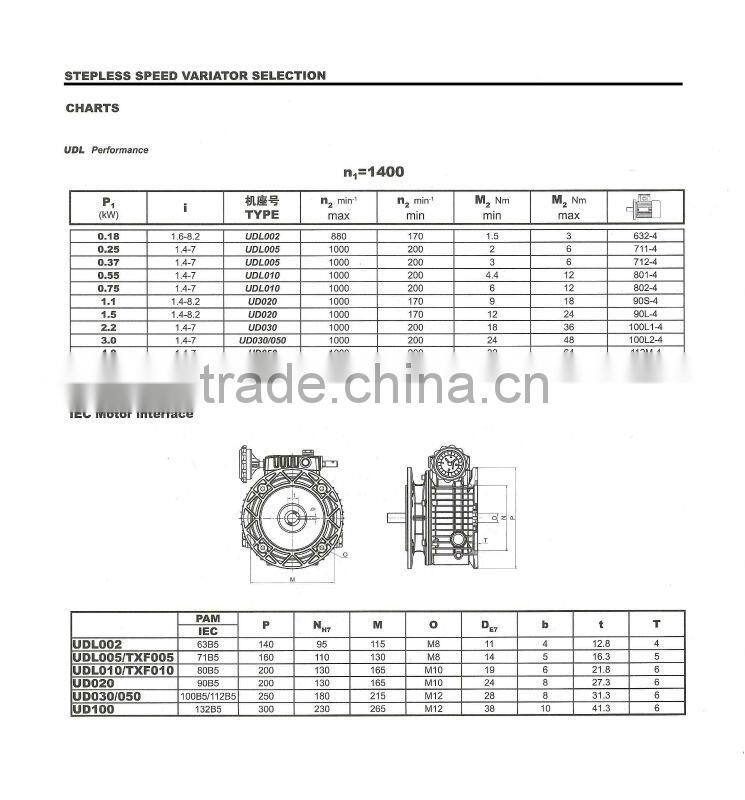

Technical data | ||
Gear unit reduction ratio | [i] | 1.4 to 7.0 |
Output torque | [Nm] | ≤118 |
Motor power range | [kW] | 0.18 to 7.5 |
