Home > Products > Reducer > IEC Input Helical Gearbox

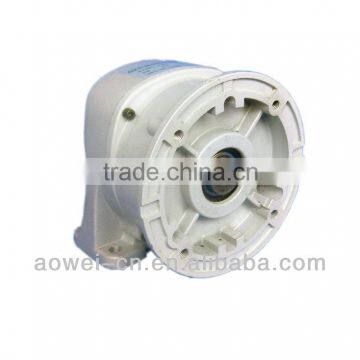

IEC Input Helical Gearbox

FOB Price

USD $50 - $200 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port NINGBO or SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gearing Arrangement	Helical	Output Torque	3.1-1476 N.m
Rated Power	0.1-3.7K.W	Input Speed	1400RPM
Output Speed	7-467RPM	Place of Origin	Zhejiang, China
Model Number	G3LM/G3FM	Brand Name	Aowei

Product Description

Aowei speed reducer- Gear Motor
----G3 series Helical gear motor

----Gear motor

Feature:

1. Beautiful and novel shape

2.Middle or low rotating speed with wide range of speed ratio from 3-200

3.Large torque

4. High Efficiency

5.Low noise

Mounting position

Parameter

100

T020

Model

Mounting & Type

Shaft diameter

Ratio

Motor Power

L: foot mounting
F: flange mounting

M: normal motor
B: with brake system

18mm
22mm
28mm
32mm
40mm
50mm

3:1

5:1
10:1
15:1
20:1
25:1
30:1
40:1
50:1
60:1
80:1
100:1
120:1
160:1
200:1

Three-phase:
T010: 0.1kW
T020: 0.2KW
T040: 0.4kW
T075: 0.75kW
T150: 1.5kW
T220: 2.2kW

T370:3.7KW

Single-phase:
S010: 0.1kW
S020: 0.2kW
S040: 0.4kW
S075: 0.75kW

atio	Output Torque (N.m.) \| 4 poles Electric motor @ 50Hz
	0.1Kw		0.2Kw		0.4Kw		0.75Kw		1.50Kw		2.2Kw
	Output Shaft	M2 (Nm)	Output Shaft	M2 (Nm)	Output Shaf	M2 (Nm)	Output Shaft	M2 (Nm)	Output Shaft	M2 (Nm)	Output Shaft	M2 (Nm)
5:1	18mm	3.1	18mm	6.2	22mm	12	28mm	22	32mm	45	40mm	67
10:1		6.2		12.4		24		45		91		133
15:1		9.1		18.2		36		68		135		200
20;1		12		24		48		90		181		266
25:1		14		28		56		112		226		332
30:1		18	22mm	36	28mm	72	32mm	135	40mm	272	50mm	399
40:1		22		44		93		175		351		515
50:1		28		56		116		219		439		644
60:1	22mm	34		68		139		262		527		773
80:1		48		96		184		355		703		1029
100:1		58	28mm	116	32mm	232	40mm	432	50mm	878		1230
120:1		69		138		277		457		1060	/	/
160:1		91		188		363		703		1230		/
200:1		116		232		432		764		1476		/

Application

It is an ideal reducer of light chemical industry, medicine, food, transportation and raising and dropping of goods etc.
