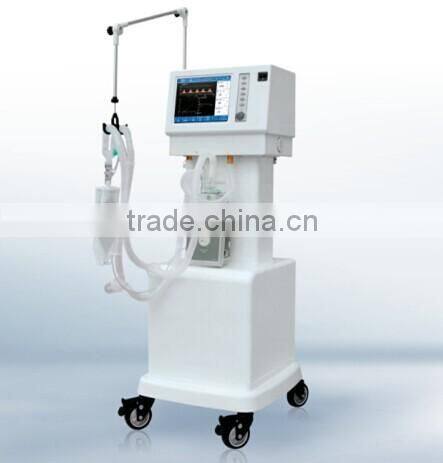

FM-7250B Hospital Ventilator Machine Price in Breathing Apparatus

FM-7250  Ventilator Machine is a multi-functional Ventilator adopting pneumatic, electronic

technology. Exported components are utilized to guarantee operational stability and reliability.

 With color screen (TEF) to display various measuring and configuration parameters, the device

is very suitable for respiratory treatment, applicable for medical, surgical and gynecological

departments, the department of pediatrics, first aid, and ICU departments of hospitals at different levels.

Main technical parameters

* Display mode: High-definition 10.4” TFT color LCD screen display

* Ventilation mode : IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, IMV, VCV, PCV

* Ventilation parameters

Tidal volume      20~2000 ml

Rate            1~120 bpm

SIMV rate        2~20 bpm

I:E             4:1~1:8

Pressure trigger sensitivity -1.0-2.0kPa

Flow trigger sensitivity  1-20L/min

PEEP           0~2.0Kpa

Pressure range    3~60cmH2O

Pressure support    3~60cmH2O

SIGH

1.5 times the  inspiratory  time(60-120 adjustable),

Inspiratory platform  0~50%

Oxygen concentration 21~100%

Pressure limitation   5~60cmH2O

Pressure slope      1~10gear

Flow rate setting    1~10gear

Expiratory trigger pressure -1.0~2.0Kpa

Time control    1~10s

*  Parameters for ventilation monitoring

tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E,

peak pressure of airway, average pressure, pressure - time waveform, flow rate -

time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform

(autonomous inspiratory rate, lung compliance, airway resistance, flow -volume

loop, pressure-volume loop)

* Monitoring of oxygen concentration: 21%~100%

* Security Alarm System

1. Oxygen Concentration alarm:

upper limit setting range 21%~100% low limit setting range   10%~80%

 2.Airway pressure alarm            upper limit setting range  0.3~6.0 kPa low limit setting range   0.2~5.0 kPa

3.Per-minute ventilation volume alarm       upper limit setting range  3.0~30L/min low limit setting range   1.0~10L/min

 4. Respiratory rate                 upper limit setting range  50~99bpm low limit setting range   0~50bpm

5. Tidal volume upper limit setting range  10~2000ml low limit setting range   0~1800ml

 6. Sustained high-pressure alarm it will give alarm when stress have consistently been higher than 2.5 kPa

7.Suffocation alarm              it will give sound and light alarm if there is no tidal volume input for 15 seconds

8. Power alarm

9. Gas shortage alarm

10. Intubation off alarm * Power AC 220V±10%     50Hz±1Hz UPS, Storage battery

* Mechanical Arms

*(Air compressor)

*Items within brackets are optional.
