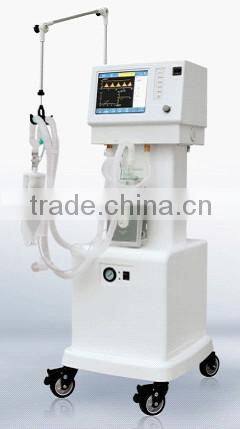

FM-7250C High Quality Pediatric Ventilator for Hospital

Specifications

Full Medical Co., Ltd

   FM-7250C High Quality Pediatric Ventilator for hospital  Main technical parameters

• Display mode  :High-definition 10.4” TFT color LCD screen display
• Ventilation mode : IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH,IMV, VCV, PCV
• Ventilation parameters

  Tidal volume	20~1500 ml
  Rate	1~99 bpm
  SIMV rate	1~20 bpm
  I:E	4:1~1:8
  PEEP	0~2.0Kpa
  Pressure range	1.0~6.0Kpa
  SIGH	1.5 times the inspiratory time(70-150 adjustable)
  Inspiratory platform	0~50%



• Parameters for ventilation monitoring   : Tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance, flow -volume loop, pressure-volume loop)
• Monitoring of oxygen concentration : 21%~100%
• Security Alarm System

  Oxygen Concentration alarm	upper limit setting range 21%~100% low limit setting range   10%~80%
  Airway pressure alarm	upper limit setting range  0.3~6.0 kPa low limit setting range   0.2~5.0 kPa
  Per-minute ventilation volume alarm	upper limit setting range  3.0~30L/min low limit setting range   1.0~10L/min
  Sustained high-pressure alarm	it will give alarm when stress have consistently been higher than 2.5 kPa
  Suffocation alarm	it will give sound and light alarm if there is no tidal volume input for 15 seconds
  Power alarm



• Power  :AC 220V±10%     50Hz±1Hz UPS, Storage battery
• Mechanical Arms
• Air compressor

I. Warranty service
We offer one year warranty & lifelong service.Some of products have two years warranty.

II. Extend Service
If you have any problem,we will response in 12hours by email,tel or fax.
We provide spare parts for ten years.
