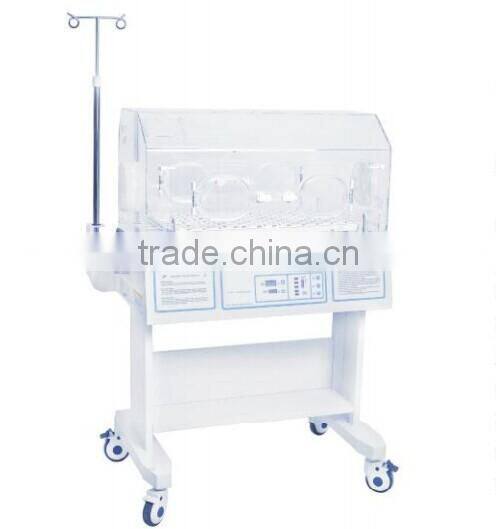

FM-7100S Hot Sale Hospital Infant Incubator

Function features

1. Microprocessor based servo controlled temperature system

2. Temperature displayed by LED

3. Alarm functions: Power failure; Over temperature; Temperature deviation; Temperature sensor

failure ; Fan failure;

4. >37 ℃ temperature setting

5. A keypad lock prevent inadvertent changes the setting

6. A second thermal cut-off function for more safety

7. Humidity is adjustable in two grade

8. Heating power displayed on panel

9. The infant bed inclination angle is adjustable

10. Trough for pulling and pushing, which is convenient to add water and wash

11. Fan with low noise and long life-span

12. Temperature deviation and over temperature could be amended in front panel directly

13. Slience / reset button for alarms

14. Six operating windows, two sides access operating windows can be swiveled

15. Support bracket

16. Heater is electrically cut-out if air temperature inside incubator exceed 40 ℃.

Standard configuration

Main body (including the transparent hood, control system, infant bed, water trough), I. V. Pole, mattress,

support bracket, castors

Optional parts

Phototherapy up side unit;

Phototherapy from up and down sides;

RS232 (485) connector; Tray/pole;

Infant bed pulled from side door;

Technical data

1. Power supply: AC110/220V 60/50Hz

2. Power input: ≤ 420VA

3. Operating conditions:

Environment temperature: 20~30℃

 Environment relative humidity: 30%~75%RH

Environment air velocity of flow: <0.3m/s

4. Air Temperature control range: 25~38℃

5. Temperature fluctuation: +/-0.5℃

6. Uniformity of mattress temperature: ≤ 0.8℃

7. Humidity accuracy: ≤ 10%RH

8. Warm-up time: ≤ 45min

9. Internal noise level: ≤ 55dB

10. Infant bed tilt angle: +/-10degree

11. Mattress size: 65cm (L)X 37cm(W)

12. Trough capacity: 1200ml

13. Air filter: 0.5um

Package

Each unit is packed in one wooden crate

Size: 110X 78X 96CM

N. W.: 80KG   G. W.: 100KG

Transport and storage

Environment Temp: -40--+55℃

Environment Relative Humidity: ≤ 95%

Atmospheric Pressure: 500~1060Hpa

Packaging

The Infant Incubator was strong export package & suitable for deliver by air, express or sea

Shipping

1. Express: Ship Infant Incubator by UPS/ DHL/ FEDEX/ TXT express which is door to door, you just receive Infant Incubator at office (3~5 days)

2. Air: Ship Infant Incubator by air cargo which you need go to air port to take Infant Incubator (2~7 days)

3. Sea: if goods are large quantity and you are not in hurry, we can ship Infant Incubator by sea to save freigth cost (about one month)

Delivery time: within 3 to 7 days upon receipt of payment

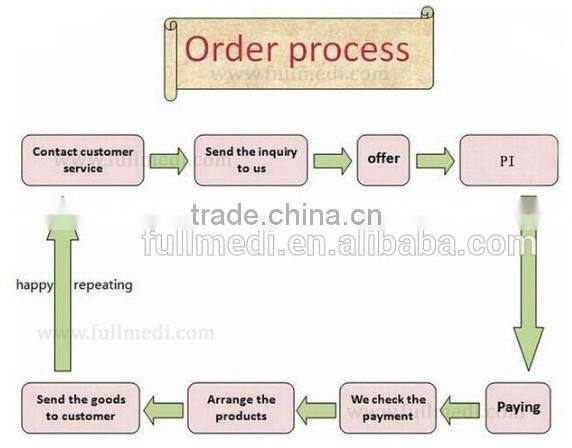

I. How to order?
