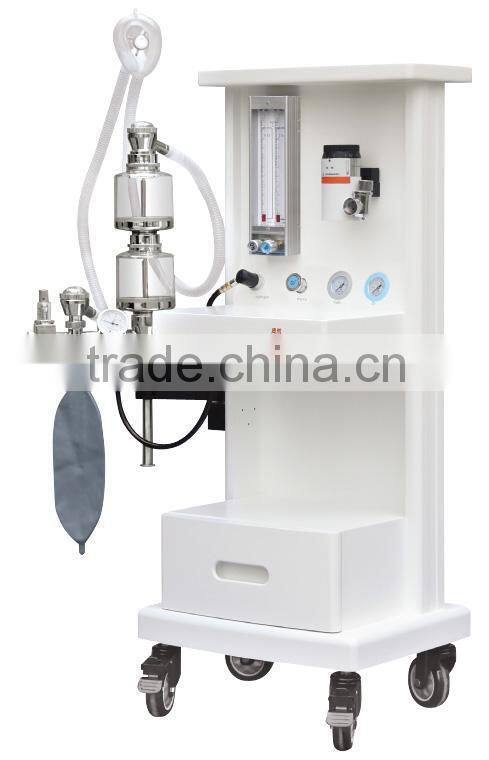

FM-7151 Best-selling Anesthesia Ventilator for Medical

Specifications

Full Medical Co., Ltd

    FM-7151 Best-selling Anesthesia Ventilator for medical

FM-7152 Anesthesia Machine, designed with state-of-the-art technologies, is one of high utility with excellent performance and complete functions. Both outstanding and inexpensive, it has the best cost performance that can satisfy any customer.

• The Ventilator adopts microcomputer control with high-definition 5.7” LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.
• The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
• Reliable pneumatic transmission system.
• Economic and proper configuration of technologies, optional as required by the Customer.
• Modularized design and upgrading. Upgrading is available as required by the Customer.

TECHNICAL PARAMETERS
Part of Anesthesia Machine

• Main body   : High-strength engineering plastic rack, light, beautiful and corrosion resistant
• Scope of application : adult, child
• Gas source   O2: 0.27~0.55MPa  N2O: 0.27~0.55MPa
• Flow meter     O2: 0.1~10L/min    N2O: 0.1~10L/min
• O2, N2O linkage and N2O Stopper
   When using nitrous oxide, oxygen concentration>25%;
   When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off.
• Flow rate of rapid oxygen supply  25~75L/min
• Low oxygen pressure alarm     There will be sound alarm when the oxygen pressure < 0.2MPa
• Vaporizer    it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.
• Respiratory circuit    working mode: all-close, semi-close, semi-open
                               releasing pressure: 0.5~7 kPa
• Respiratory bellows    bellows for adults, bellows for children
• tidal volume range:0~1,500 ml

Part of Ventilator
• Display mode: High-definition 5.7” LCD screen display
• Ventilation mode : IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, IMV, VCV, PCV
• Ventilation parameters:

• Parameters for ventilation monitoring:

tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure

• Monitoring of oxygen concentration: 21%~100%
• Security Alarm System:

*Items within brackets are optional.
