Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | HD-2800A | Power | Electronic | |
| Usage | Process Testing Machine |
Product Description

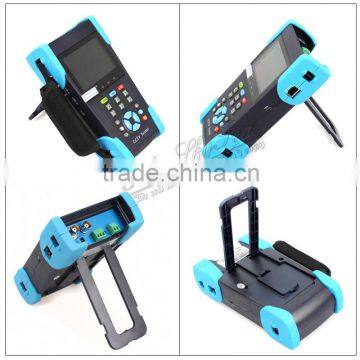

3.5" LCD Screen 1080P HD-AHD Coaxial Camera test PTZ control 12v-Output
The new HD coaxial tester is developed for the On-Site installation and maintenance of coaxial camera,it also combine other functions analog camera test, UTP test; Its portability, user-friendly design and many other functions make the tester an essential tool for all installers or technicians.
— Dome camera and all in one camera testing
— Video transmission channel testing
2) Low power consumption, working time lasts 7-11 hours
6) LED Flashlight.
7) HD coaxial control, PTZ control, color bar generator shortcut key.
8) F1, F2 user-defined key
9) Visual fault locator, to test fiber’s bending and breakage * (Optional)
10) Digital Multi-meter, DC and AC voltage measurement, Resistance measurement Continuity test, Diode measurements, Capacitance measurement * (Optional)
11) TDR cable test, TDR break-point and short-circuit measurement. * (Optional)
12) PTZ control and PTZ protocol analysis
13) Cable test, Test LAN cable or telephone cable, UTP cable etc, cable type and the sequence of wires will be displayed
14) Support more than 30 protocols, such as Pelco-D, Pelco-P, SAMSUNG.
15) Support RS485,rate 600 ~ 115200bps adjustable
16) Built in Lithium Ion Polymer Battery(3.7V DC 3000mAh )
17) Image display and data control integration
18) Handheld HD coaxial tester, easy to carry and operation.
19) Optical power meter, test fiber loss and value * (Optional)
1. Video signal test
The new HD coaxial tester ,built-in high definition 3.5”LCD-TFT 480(RGB)x320 resolution, view the image, easy and directly displays the camera image , support PAL/NTSCLCD screen brightness/Contrast/Color Saturation adjustable. Suitable for field construction and maintenance work
2. HD coaxial signal test
AHD coaxial signal test, support 720p 25/30fps/ 1080p 25/30fps, the tester will display camera image, coaxial PTZ control and call up the camera OSD menu.
3. Video signal level test (Not for TVI CVI AHD test)
4. PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.
5. Enhanced color bar generator
6. DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
7. Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
8. Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the HD coaxial tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.
9. PTZ controller
Search the Control protocol code from Multifunction keyboard or DVR by RS485 interface, test the PTZ control command data whether received anomaly and RS485 data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P:A0 00(Add) xx xxxxxx AF xx
PELCO-D:FF 01(Add)xx xxxxxxxx
10. PTZ address scanning
Search up the ID of PTZ camera. Help the engineer search the speed dome address quickly.
11. Cable scan (Optional) *
Send the specific signal, easy to find the connected cable from the mess cable
12. Visual fault locator * (Optional)Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
HD coaxial tester built in highly stable and reliable 33/4 digit (6600) digital multimeter. It is used for the DC and AC voltage measurement,AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking . It is easy operation and professionally accurate.
14. LED lamp
Press the LED On/Off button to use the LED flashlight.
15. HD coaxial, PTZ control and color bar generator shortcut key
HD coaxial, PTZ control and color bar generator shortcut key, easy to operate
16. F1, F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.
17. TDR cable test *(Optional)
TDR cable testing, accurately measure BNC cable, network cable, controls cable's open circuit and short-circuits location. It greatly improves working efficiency
18. Optical power meter, test fiber loss and value* (Optional)
The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 TFT-LCD High-definition screen display ,five wavelength calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss.
Note: With sign“*”means functions are optional, Optional function need pay additional cost if asked to add any one of them in the tester
| Model | HD coaxial tester HD-2800D series [*]models are Optional |
| Video Test | |
| Signal mode | NTSC/PAL (Auto adapt) |
| Display | 3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution |
| LCD adjustment | Brightness, Contrast, Saturation adjustable |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Video Level test | |
| Level test | Video signals measured in IRE or mV (not for TVI,CVI ,AHD) |
| Video level meter (Optional) | |
| Video Level meter | PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement |
| PTZ controller | |
| Communication | Support RS485 |
| PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
| Baud Rate | 600,1200,2400,4800,9600,19200,57600,115200bps< /span> |
| Video signal generation | |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP cable tester | |
| UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. |
| DC12V 1A power output | |
| DC12V power output | Output DC12V1A power for camera |
| Audio input test | |
| Audio input test | test the pickup and other audio equipments on the front-end |
| RS485 data analysis | |
| Data Monitor | Captures and analyzes the command data from controlling device |
| CVI test (optional) | |
| CVI video signal test | 1 channel CVI in(BNC interface)support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| TVI test (Optional) | |
| TVI video signal test | 1 channel TVI in(BNC interface) support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| AHD test(support) | |
| AHD video signal test | 1 channel AHD in (BNC interface)support AHD 2.0 version, 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable |
| Digital Multimeter (Optional) * | |
| AC/DC Voltage | 0-660V auto/manual range, the min resolution is 0.1mV |
| AC/DC current | 660.0uA , 6.600mA, 66.00mA , 660.0mA, 10.00A |
| Resistance | 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ |
| Capacitance | 6.6nf~66000uF, the min resolution is 1pf |
| Diode | 0~2V forward voltage, the min resolution is 1mV |
| Data hold | Hold and display the measured value |
| Relative measurement | Display the relative power value |
| Continuity testing | Built-in buzzer will sound, if resistance is lower than 50 Ω |
| Testing speed | 3 times/ seconds |
| Data range | -6600~+6600 |
| TDR Tester (Optional) * | |
| TDR Tester | breakpoint and short circuit measurement(BNC cable, telephone cable) |
| POWER | |
| Power Adapter | DC 5V(1.5A) |
| Battery | Built-in 3.7V Lithium polymer battery ,3000mAh |
| Rechargeable | After charging 3-4 hour, working time lasts 11 hours |
| Low Consumption | Energy saving technology, the battery icon real-time display |
| Parameter | |
| Operation setting | English/Chinese and other languages OSD menu |
| Auto off | 5-60 (mins) |
| Keytone | On/Off |
| General | |
| Working Temperature | -10℃ ~+50℃ |
| Working Humidity | 30%~ 90% |
| Dimension/Weight | 194mm x 112mm x 48mm / 540g |
