Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	Hudong	Model Number	QC11Y-6X3200-E18
Certification	CE,ISO9001	Warranty	12 months after saling
After-sales Service Provided	Overseas service center available	Voltage	optional

Product Description

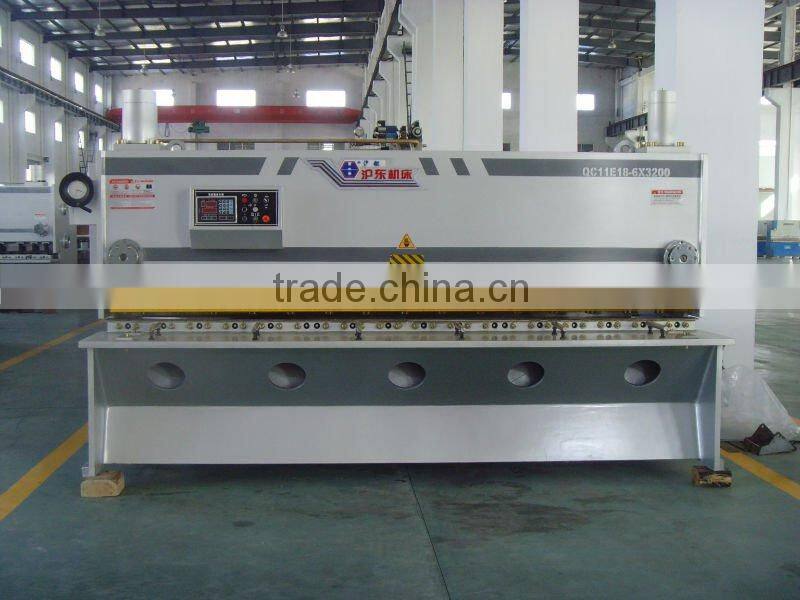

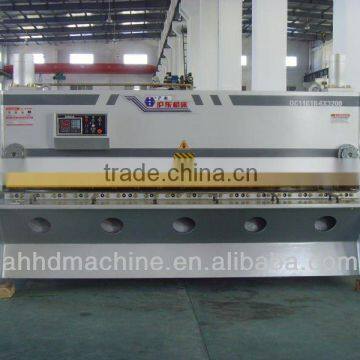

Hydraulic sheet metal guillotine cutting machine

Properties and characters:
1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.
3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.
10.Back stop is controlled with E18 numerical control system.

technical data:

Model	Thickness of sheared plate mm	Width of sheared plate mm	Strokes min -1	Scope of back stop mm	Cutting angle °	Throat depth mm	Motor power kw	Overall dimension mm(L×W×H)
4×2500	4	2500	25-45	600	0.5-1.5	100	5.5	3000×2000×1850
6×2500	6	2500	20-45	600	0.5-1.5	125	7.5	3030×2075×1920
6×3200	6	3200	16-45	600	0.5-1.5	125	7.5	3730×2075×1970
6×4000	6	4000	14-45	600	0.5-1.5	125	7.5	4530×2075×2080
6×5000	6	5000	11-40	800	0.5-1.5	125	7.5	5530×2075×2210
6×6000	6	6000	9-36	800	0.5-1.5	125	11	6530×2075×2520
7×7000	7	7000	7-28	800	0.5-1.5	125	11	7530×2075×2830
8×2500	8	2500	20-45	600	0.5-1.5	125	11	3040×2075×1920
8×3200	8	3200	16-45	600	0.5-1.5	125	11	3740×2075×1920
12×2500	12	2500	12-35	800	0.5-2	125	15	3110×2575×2210
12×3200	12	3200	7-35	800	0.5-2	125	15	3810×2575×2420
12×4000	12	4000	8-35	800	0.5-2	125	15	4610×2575×2530
16×2500	16	2500	16-40	800	0.5-2.5	125	22	3130×2655×2200
16×4000	16	4000	12-40	800	0.5-2.5	125	22	4630×2655×2570
20×2500	20	2500	16-40	800	0.5-2.5	125	30	3160×2855×2300
20×4000	20	4000	12-40	800	0.5-2.5	125	30	4660×2855×2720
25×2500	25	2500	8-15	800	0.5-3.5	120	37	3330×2000×2650
25×3200	25	3200	8-15	800	0.5-3.5	120	37	3970×2100×2865
25×4000	25	4000	6-12	1000	0.5-3.5	120	37	4780×2500×3150
32×2500	32	2500	6-12	1000	0.5-3.5	120	45	4100×2300×3200
32×3200	32	3200	8-12	1000	0.5-3.5	120	55	1900×2650×3450
40×2500	40	2500	4-10	1000	0.5-3.5	120	75	4100×2550×3500
40×3200	40	3200	4-10	1000	0.5-3.5	120	75	4900×2900×3750
