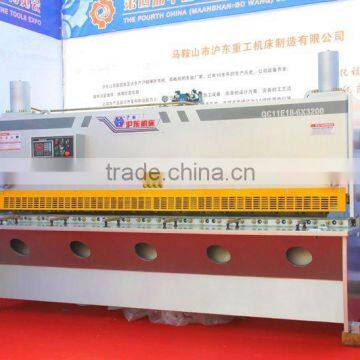

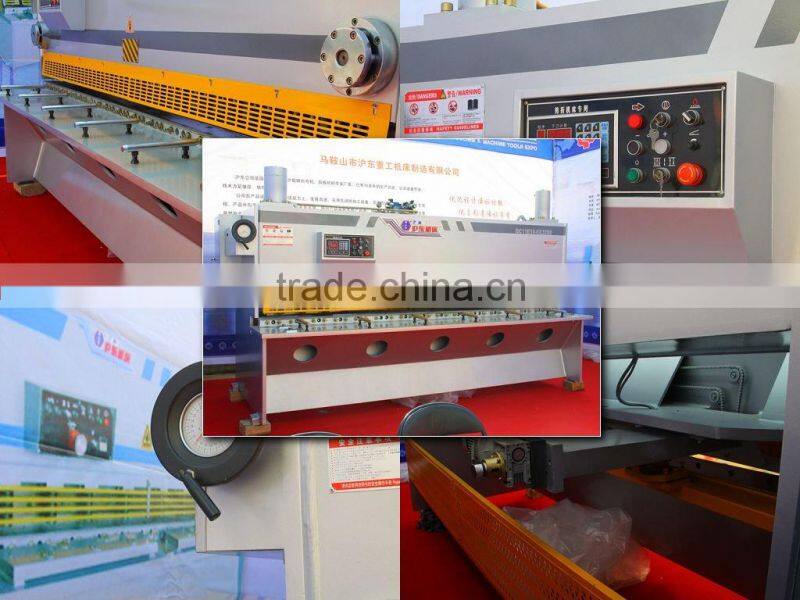

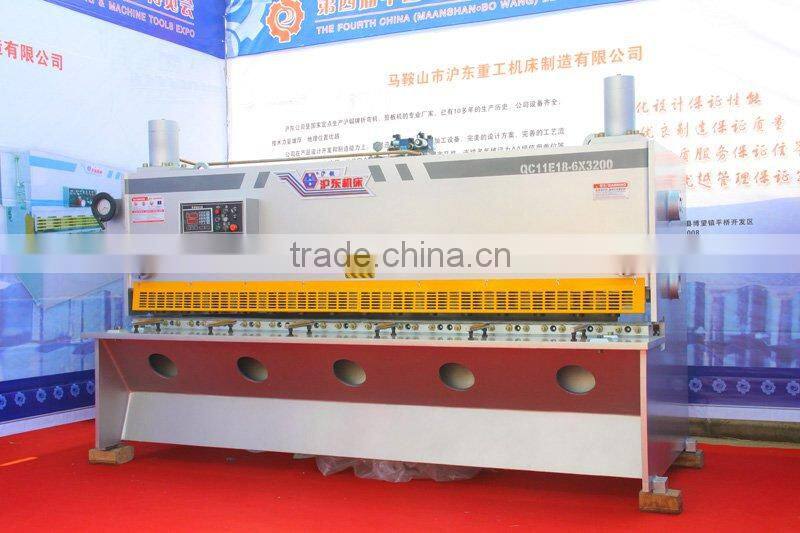

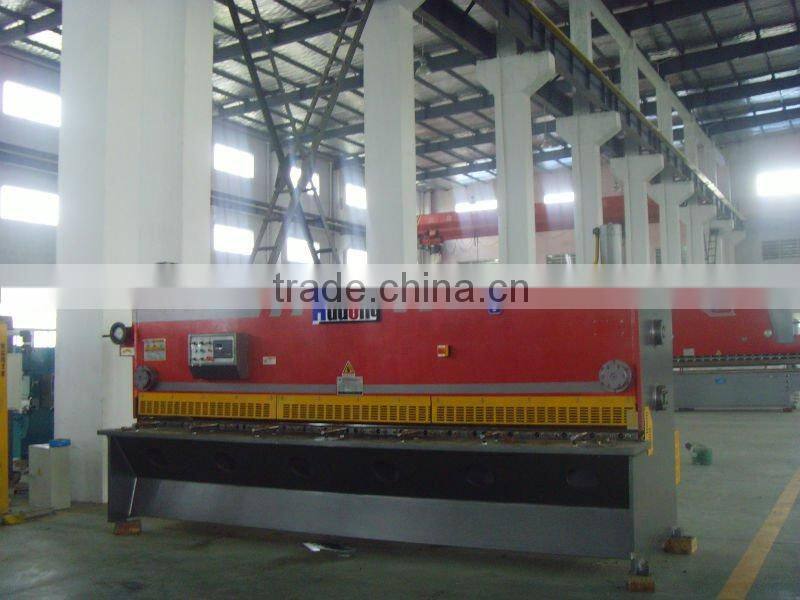

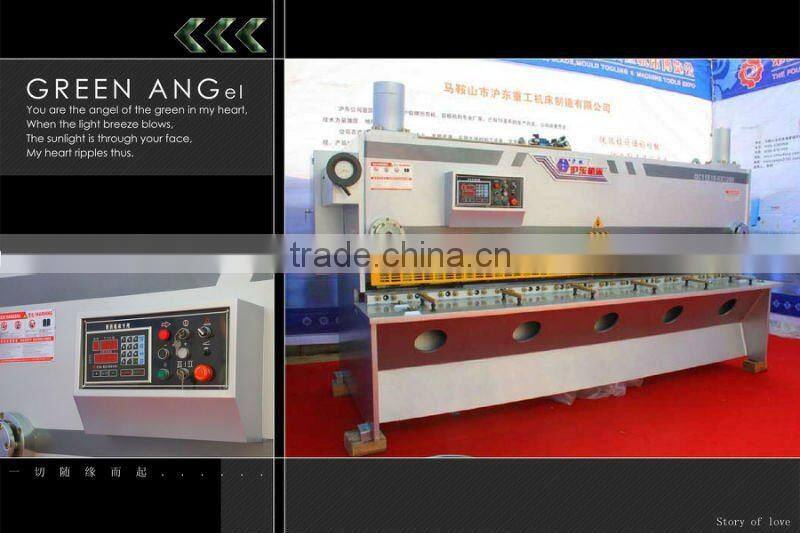

Hydraulic CNC Guillotine Shearing Machine6x3200

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	Hudong	Model Number	QC11-6*3200-E18
Certification	ISO9001:2000,CE	Warranty	24 months after saling
After-sales Service Provided	Engineers available to service machinery overseas	Voltage	optional

Product Description

hydraulic CNC Guillotine shearing machine(6mm*3200mm)

Technical characteristics

1. The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).

2. Blades has four sides, every side can be use.

3. E20 NC system control , it digital display , also can simple locate and control back gauge.

4.Hydraulic guillotine shearing machine is second generation shearing machine.

we can adjust shear angle and blade gap. hydraulic swing beam shearing machine just adjust blade gap.

Model	Thickness of sheared plate mm	Width of sheared plate mm	Strokes min -1	Scope of back stop mm	Cutting angle °	Throat depth mm	Motor power kw	Overall dimension mm(L×W×H)
4×2500	4	2500	25-45	600	0.5-1.5	100	5.5	3000×2000×1850
6×2500	6	2500	20-45	600	0.5-1.5	125	7.5	3030×2075×1920
6×3200	6	3200	16-45	600	0.5-1.5	125	7.5	3730×2075×1970
6×4000	6	4000	14-45	600	0.5-1.5	125	7.5	4530×2075×2080
6×5000	6	5000	11-40	800	0.5-1.5	125	7.5	5530×2075×2210
6×6000	6	6000	9-36	800	0.5-1.5	125	11	6530×2075×2520
7×7000	7	7000	7-28	800	0.5-1.5	125	11	7530×2075×2830
8×2500	8	2500	20-45	600	0.5-1.5	125	11	3040×2075×1920
8×3200	8	3200	16-45	600	0.5-1.5	125	11	3740×2075×1920
12×2500	12	2500	12-35	800	0.5-2	125	15	3110×2575×2210
12×3200	12	3200	7-35	800	0.5-2	125	15	3810×2575×2420
12×4000	12	4000	8-35	800	0.5-2	125	15	4610×2575×2530
16×2500	16	2500	16-40	800	0.5-2.5	125	22	3130×2655×2200
16×4000	16	4000	12-40	800	0.5-2.5	125	22	4630×2655×2570
20×2500	20	2500	16-40	800	0.5-2.5	125	30	3160×2855×2300
20×4000	20	4000	12-40	800	0.5-2.5	125	30	4660×2855×2720
25×2500	25	2500	8-15	800	0.5-3.5	120	37	3330×2000×2650
25×3200	25	3200	8-15	800	0.5-3.5	120	37	3970×2100×2865
25×4000	25	4000	6-12	1000	0.5-3.5	120	37	4780×2500×3150
32×2500	32	2500	6-12	1000	0.5-3.5	120	45	4100×2300×3200
32×3200	32	3200	8-12	1000	0.5-3.5	120	55	1900×2650×3450
40×2500	40	2500	4-10	1000	0.5-3.5	120	75	4100×2550×3500
40×3200	40	3200	4-10	1000	0.5-3.5	120	75	4900×2900×3750
