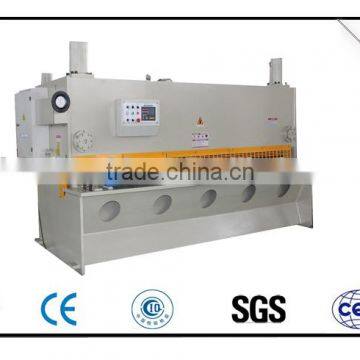

QC11Y-6*3200 CNC hydraulic guillotine shear machine

  QC11Y-6*3200 CNC hydraulic guillotine shear  machine

Properties and characters:

1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.
3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.
10.Back stop is controlled with E21 numerical control system.

Convenient working and person security protection(Optional):

1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.

2. The machine can be equipped with cutted lift out declined platform under the back gauge for convenient operation.

3.  Light curtain can be equipped also for security standard needs.

4.  Light function is equipped for convenient checking and care when cutting.

NC/CNC System and advance touch screen function :

The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20,ESTUN E21s and ESTUN E200 system,DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen). X/Y axis can be controlled and displayed. The backgauge distance can be controlled and calculated into 1000MM long.

The NC system will be ESTUN E21 mostly we use for high quality guarantee.

All of their instruction manual is available when applied to SIECC/SIECCTECH

Technical data:
