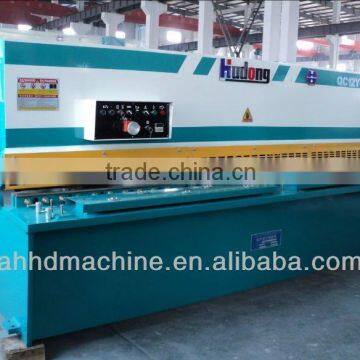

QC12Y Series Hydraulic swing beam shearing machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	Hudong	Model Number	QC12-6*3200-E18
Certification	ISO9001:2000	Warranty	24 months after saling
After-sales Service Provided	Engineers available to service machinery overseas	Voltage	optional

Product Description

QC12Y Series Hydraulic swing beam shearing machine

1.stepless control for the stroke,the gap between up blade and down blade is manually adjusted by handle for high uniformity.

tection fence and the electric interlock to ensure the operation safety.

3.the close loop control system that consists of CNC system and position

coder features fast response speed,high precision and exceptional stablity

and can ensure the accuracy of displacement of backgauge.

4.E18 CNC system has the accessory functions of compensation

and automatic check.

Technical data:

Model	Shearing size (T×W)(mm)	Shearing angle	Strokes (min^-1)	Adjusting scope of back stop (mm)	Motor power (KW)	Weight (Kg)	Overall dimension (L×W×H)(mm)
4×2500	4×2500	1°30’	≥16	20-600	5.5	3200	3040×1580×1600
4×3200	4×3200	1°30’	≥12	20-600	7.5	4600	3840×1610×1650
4×4000	4×4000	1°30’	≥10	20-600	7.5	5900	4640×1880×1700
6×2500	6×2500	1°30’	≥16	20-600	7.5	4800	3040×1610×1650
6×3200	6×3200	1°30’	≥12	20-600	7.5	5600	3840×1610×1650
6×4000	6×4000	1°30’	≥10	20-600	7.5	7150	4640×1880×1700
6×5000	6×5000	1°30’	≥8	20-600	11	11000	5786×2200×2160
6×6000	6×6000	1°30’	≥7	20-600	15	16000	6900×2570×2280
8×2500	8×2500	1°30’	≥12	20-600	17.5	5500	3040×1610×1650
8×3200	8×3200	1°30’	≥10	20-600	17.5	6700	3840×1610×1650
8×4000	8×4000	1°30’	≥8	20-600	11	8300	4680×1880×1700
8×5000	8×5000	1°30’	≥7	20-600	15	14000	5786×2200×2160
8×6000	8×6000	1°30’	≥5	20-600	18.5	19000	6900×2570×2280
10×2500	10×2500	2°	≥10	20-600	11	7200	3350×2050×1950
10×3200	10×3200	2°	≥9	20-600	11	8300	4050×2050×1950
10×4000	10×4000	2°	≥8	20-600	15	10700	4800×2200×2100
12×2500	12×2500	2°	≥10	20-800	15	8600	3225×2127×2235
12×3200	12×3200	2°	≥9	20-800	18.5	9800	4820×2350×2235
12×4000	12×4000	2°	≥8	20-800	18.5	11200	4820×2350×2300
16×2500	16×2500	2°	≥8	25-800	18.5	9860	3245×2127×2235
16×3200	16×3200	2°	≥7	25-800	18.5	10800	3945×2127×2235
16×4000	16×4000	2°	≥5	25-800	22	12600	4850×2350×2300
20×2500	20×2500	2°30’	≥6	30-800	22	15000	3440×2088×2570
20×3200	20×3200	2°30’	≥5	30-800	37	18000	4150×2088×2570
20×4000	20×4000	2°30’	≥5	30-800	37	23000	4920×2400×2730
25×2500	25×2500	3°	≥5	30-800	37	17000	3500×2400×2500
25×3200	25×3200	3°	≥4	30-800	37	20000	4200×2400×2500
25×4000	25×4000	3°	≥4	30-800	37	26000	4950×2500×2600
