Hydraulic CNC Controller Sheet Guillotine Shears (8*3200)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	Hudong	Model Number	QC11Y-8*3200
Certification	CE,ISO9001	Warranty	1 year after saling
After-sales Service Provided	Engineers available to service machinery overseas	Voltage	optional

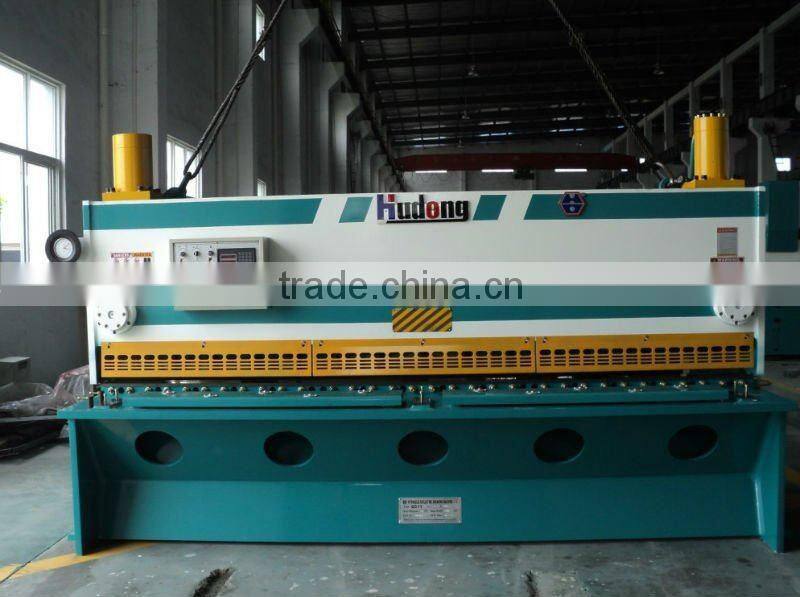

Hydraulic CNC controller sheet guillotine shears (8*3200)

1.stepless control for the stroke,the gap between up blade

and down blade is manually adjusted by handle for high uniformity.

tection fence and the electric interlock to ensure the operation safety.

3.the close loop control system that consists of CNC system and position

coder features fast response speed,high precision and exceptional stablity

and can ensure the accuracy of displacement of backgauge

Technical data

No.			value	unit	remark
1	Max cutting thickness		10	mm	σ_b≤450N/mm
2	Max cutting width		3200	mm
3	Throat depth		100	mm
4	Shearing angle		0.5-2	°
5	Strokes time		16-45	Min^-1
6	Max stroke volume of up knife		100	mm
7	Max shearing force		140	KN
8	Max compressive force feeding			kN	Change with the load
9	Max working force of system		12	MPa
10	Adjustment of back gauge		10-600	mm
11	Oil pump	model	25MCY14-1B
11	Oil pump	flow	32	ml/r
12	Master motor	model	Y132M-4
		power	11	kW
		Rotate speed	1440	r/min
13	dimension	length	3890	mm
		width	1600	mm	No including the former ruler
		height	2170	mm
