WF67K-200T3200 Hydraulic cnc plate bending machine (4+1 axis)

FOB Price

USD $10,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	HUDUAN	Model Number	WF67K-200T3200
Machine Type	Beading Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Cnc
Automation	Automatic	Extra Services	End Forming
Certification	Other, CE, CE and ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

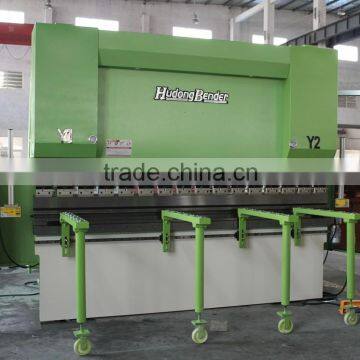

WF67K-200T3200 Hydraulic cnc plate bending machine (4+1 axis)
Automatic deflection compensation;
Rexroth hydraulic valve

WF67K-200T3200 Hydraulic cnc plate bending machine (4+1 axis)

Standard with Holland Delem DA65W ,
Germany Rexroth high-performance servo-hydraulic system control synchronization,
Both sides with Italy position feedback encoders detect synchronization,
back gauge with high performance servo motor and ball screw,
DNC system control using deflection compensation,
Standard press brake tooling,
Front support.

Technical parameter

Model	WF67K-200T/3200
Bending length	3200 mm
Nominal force	1250 KN
Poles distance	2800 mm
Throat depth	320 mm
Slider travel	150 mm
Dies height	460mm
Main motor	18.5 KW
Number of control axes	4+1 axis
Dimension L×W×H(mm)	3200X16500×2700
Machine Weight	14000kg
Machine accuracy
Slider repeat accuracy	≤±0.02mm
Slider position accuracy	≤±0.02mm
Back gauge repeat position accuracy	≤±0.02mm
Straightness of workpiece	0.3mm / m
Bending angle deviation	<±30′
Grating resolution	0.005mm
