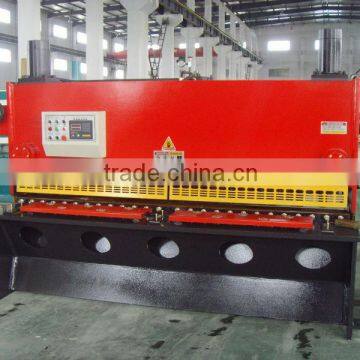

Manual Shear Machine(Q11-4*2500)/Q11 Series Shear Machine/Shearing Machine

Manual Shear Machine(Q11-4*2500)/Q11 Series Shear Machine/Shearing Machine

Properties and characters:

1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.
3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.
10.Back stop is controlled with E21 numerical control system.

Main configurations:

Control system        Netherlands  DELEM

Electrical elements   France-Schneider

Hydraulic system    Germany-Bosch Rexroth

Motor   Siemens

Servo motor and drive   Taiwan

Gear pump    Rexroth

Linear guides, Ball screw     Taiwan HIWIN

Seal ring    Japan NOK+ VALQUA

Oil tube union joint    Germany EMB+USA parker

Foot switch     South Korea Karcon

Fast clamping     Shanghai

Convenient working and person security protection(Optional)

1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.

2. The machine can be equipped with cutted lift out declined platform under the back gauge for convenient operation.

3.  Light curtain can be equipped also for security standard needs.

4.  Light function is equipped for convenient checking and care when cutting.

NC/CNC System and advance touch screen funtion

The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20,ESTUN E21 and ESTUN E200 system,DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen). X/Y axis can be controlled and displayed. The backgauge distance can be controlled and calculated into 1000MM long.

The NC system will be ESTUN E10 mostly we use for high quality guarantee.

All of their instruction manual is available when applied to SIECC/SIECCTECH

 The introduction of E21s control system:

Hudong company provides oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

However,donto worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy cath us if any assistance needed.
Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

1. We have a R&D team who have average35 years experience in designing and producing stage lighting, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !

2. We have a lot of customers from overseas as well as domestic. A lot of our customers has established long term business relationship with us.

3. All the products have 1 year warranty. All products are conducted strick QC and inspection before shipping.

4. If you have any problem or suggestion about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfied reply.
