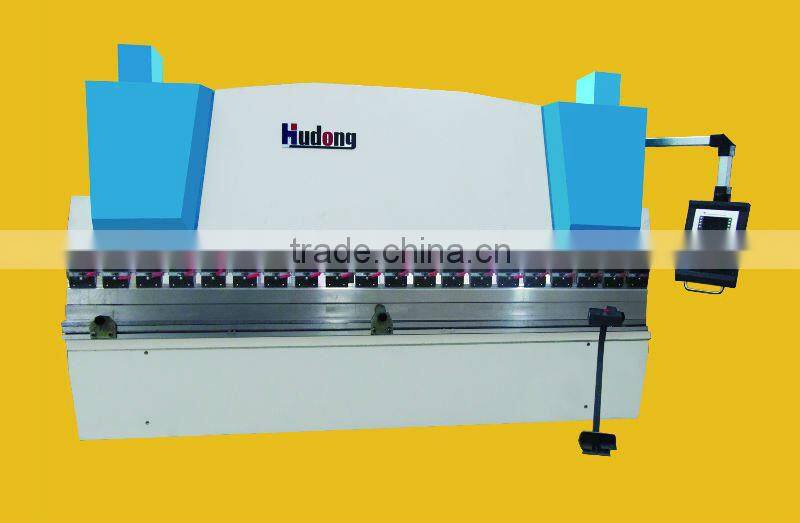

Hydraulic Servo Cnc Steel Plate Press Brake
- Shanghai port
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | Hudong | Model Number | WF67K-200T/4000-DA52 | |
| Machine Type | Press Brake | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | End Forming | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
hydraulic CNC metal sheet press brake
1:S530 CNC system

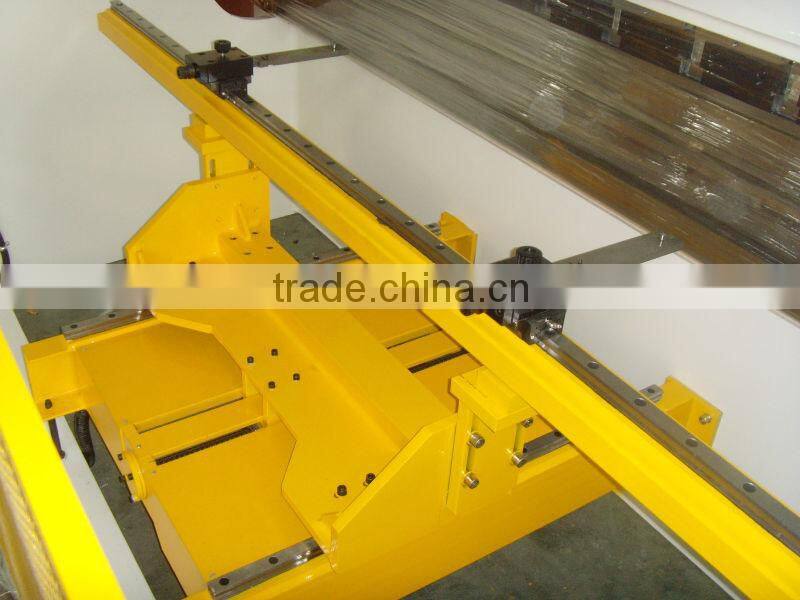

2:Ball screw & Rextroth valve

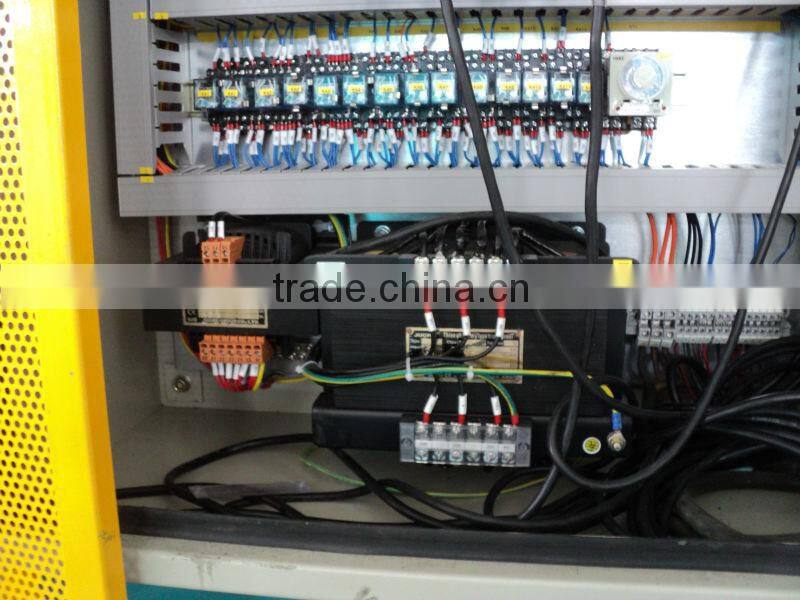

4:Schneider and Omron electrics

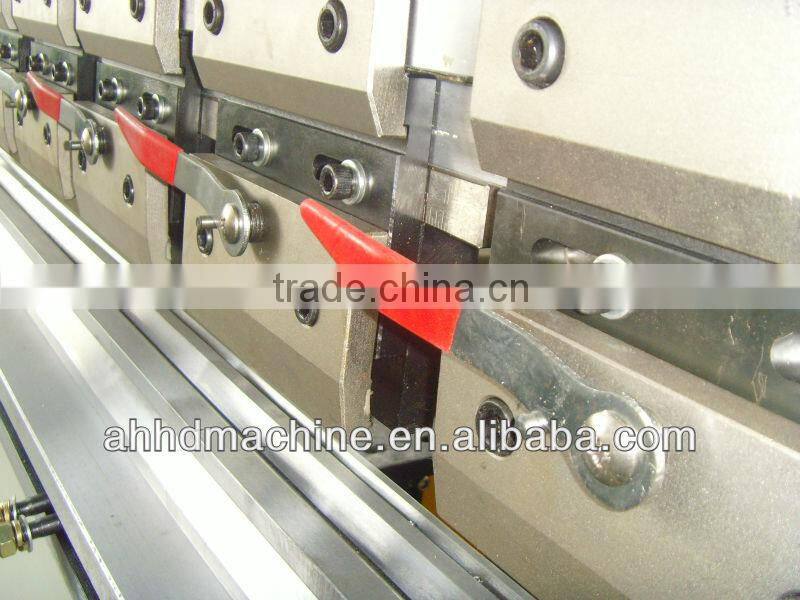

5:Fast clamper
No. | Name | Brand | Location |
1 | Motor | Dangpeng | Zhenjiang, China |
2 | Electrics | Schneider/OMROM | Eruopean brand |
3 | Oil Cylinder | Wuyang | Maanshan, China |
4 | Seal ring
| NOK | Japan |

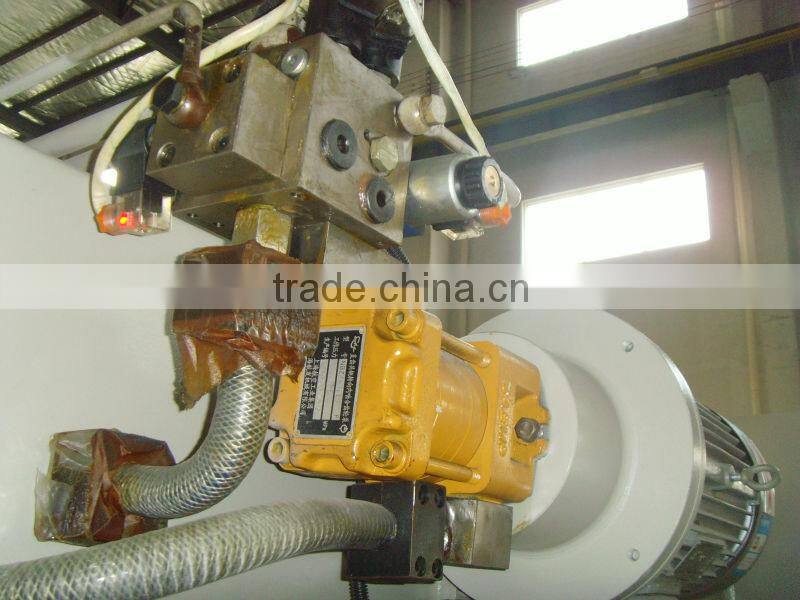

5 | Pump | Hangfa | Shanghai, China |
6 | Hydraulic system | Rextroth | Rexroth ,Germany |
7 | Two axes Controller | E200 | Estun,China |
8 | Punch and Die | Xinming / Lianmeng | Maanshan, China |
9 | Pipe connector | EMB | Germany |
10 | Foot Switch | Karcon | South Korea |
11 | Ball lead screw | HIWIN | Taiwan |
12 | Straight-line guide | HIWIN | Taiwan |
Model: WF100T/3200 | |||
No
| Name | Amount | Unit |
1 | Nominal pressure | 1 000 | KN |
2 | Poles distance | 2 600 | mm |
3 | Throat depth | 320 | mm |
4 | Slipper stroke | 120 | mm |
5 | Max. opening height | 380 | mm |
6 | Slipper stroke adjustment | 100 | mm |
7 | Diameter of cylinder | 180 | mm |
8 | Main motor power | 7.5 | kw |
9 | Oil pump power | 25 | ml/r |
10 | System pressure | 22 | Mpa |
11 | Wallboard thickness | 40 | mm |
12 | Slipper thickness | 50 | mm |
13 | Machine weight | 6 600 | Kg |
14 | Work bench length | 3 200 | mm |
15 | Dimension (LxWxH) | 3 300x1 750x2 420 | mm |
