Home > Products > LED Panel Light > 620*620 mm 40W LED Panel light PL-0606-4503 (TUV,RoHS,CB,SAA, C-Tick)

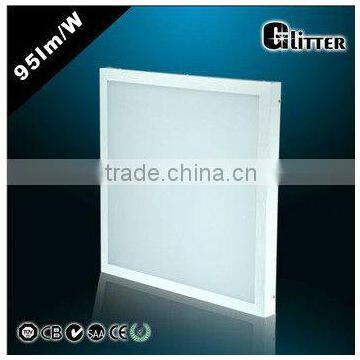

620*620 mm 40W LED Panel light PL-0606-4503 (TUV,RoHS,CB,SAA, C-Tick)
Negotiable
/ Piece
1 Piece(Min.Order)
- 10 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
95lm/W 620x620,62x62 LED Panel light with TUV, GS,CB Certificate
-
TUV 620x620 LED Panel light for Germany and Austria Market (TUV,RoHS,CB,SAA, C-Tick)
-
62*62 cm Square LED Panel light for office lighting(TUV,RoHS,CB,SAA, C-Tick)
-
Ressed 595*595mm 40W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)
-
Surface mounted 595*595mm 40W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)
-
DALI dimmable 595*595mm 40W LED Panel light (TUV,RoHS,SAA, C-Tick)
Product Details
| LED Light Source | SMD 3014 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 85-265 | Lamp Power(W) | 40 | |
| Lamp Luminous Flux(lm) | 3400-4000 | Lamp Luminous Efficiency(lm/w) | 95 | |
| Color Temperature(CCT) | Other, 2800-6500K | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP 40 | Certification | CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | Glitter | |
| Model Number | PL-0606-4503 |
Product Description
Specifications
TUV 620*620 mm 40W led panel lightHigh efficiency 95lm/W
Dimmable and Emergency (3 hours)
Own designed Driver(GS,SAA,GS)
TUV PL-0606-4503: 620*620*48mm 40W
1- Features and Advantages
• Back-lit, perfect heat dissipation, well protected the chips
• High light efficiency up to 100lm/W by SMD 3014
• Own designed LED Driver (GS,CB,SAA approved), better compatibility and stability
• Intelligent design: Emergency (3 hours)/ Dimmable series (DALI/ 0-10V/ PWM)/ Light +Motion sensor
• No such hazard. No RF or electronic magnetic interference
• 3 yrs warranty
2- Technical Specifications
No. | Parameter | Unit | Description | |
1 | Power supply | V | AC85-265 | |
2 | Current frequency | Hz | 50/60 | |
3 | Working voltage | V | DC24 | |
4 | Power consumption | W | 40 | |
5 | Color temperature | Warm white | K | 2800-3500 |
Neutral white | 3800-4500 | |||
Cool white | 5500-6500 | |||
6 | Lumen | Warm white | lm | >3400 |
Neutral white | >3600 | |||
Cool white | >3800 | |||
7 | Material |
| PMMA, Steel coating | |
8 | Operating temperature | °C | -10~+40 | |
9 | Humidity |
| 10-80% | |
10 | certificate | CE( TUV, ), RoHS, SAA, C-Tick | ||
11 | Luminaires Class | Ⅲ | ||
3- Dimension
4- Installing
5- Application
• Offices
• Kitchens
• Bathrooms
• Library
• Department Store & Boutiques
• Restaurant & Cafeteria
• Conference Rooms
• Hospital & Laboratory
6- Production view
SMT Machine and Welding soldering machine
Test machine: Temp test, Integrating Sphere, Photometer:
7- Package
Package | QTY/CTN | Carton Size | G.W. | Volume Weight |
2pcs | 640*140*640mm | 11.00kgs | 10.76kgs |
