Product Details
| LED Light Source | SMD3014 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 50 | |
| Lamp Luminous Flux(lm) | 4800 | Lamp Luminous Efficiency(lm/w) | 95 | |
| Working Temperature(℃) | -20, 40 | Working Lifetime(Hour) | 80000 | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP44 | |
| Certification | EMC, FCC, GS, LVD, SAA | Place of Origin | Guangdong, China | |
| Brand Name | Glitter | Model Number | PL0312-5003 |
Product Description
Specifications

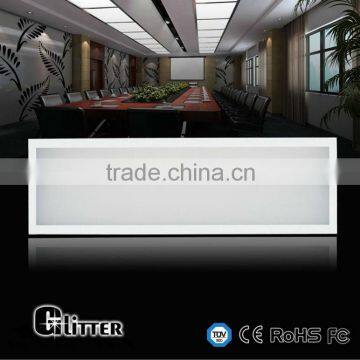

300x1200 LED panel lampBack-lit LED panel
TUV,CE,SAA,CB,GS approved LED panel lamp
300x1200 LED Panel lamp --PL-0312-5003
1. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products
2. High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan
3. High Lighting Efficiency: over 100lm/W by Epistar SMD 3014 LED
4. GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)
1). Technical parameter
Item No. | PL-0312- 5003 | |
Dimension | 300x1198x48mm | |
Voltage | AC85V-265V 50/60HZ | |
Power | 50W | |
LED Type | SMD3014 | |
LED Quantity | 440pcs | |
Luminous Flux | Warm white | 4000lm |
| Neutral white | 4300lm | |
| Pure white | 4800lm | |
Color Temperature (CCT) | Warm white | 2800-3500K |
| Neutral white | 3800-4500K | |
| Pure white | 5500- 6500K | |
Beam Angle | 120° | |
Color Rendering Index (CRI) | >80 | |
Power Supply Efficiency | >90% | |
Luminous Efficiency | Up to 100lm/W | |
Power Factor (PF) | >0.95 | |
Total Harmonic Distortion (THD) | ≤15% | |
IP Rank | IP 44 | |
Net Weight | 5.20 Kgs | |
Certificate | CE, RoHS, SAA, TUV, CB,GS | |
Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory
Dimension (Unit: mm)
Installation :
Warning: Before installation, please make sure the power is turned off .
A: Recessed Type
B: Suspended Type :
Packing information :
Material | QTY/CTN | Carton Size | G.W. | Net Weight |
Carton | 2pcs | 320*1220*190mm | 11kgs | 10.04 kgs |
Equipment :
