Home > Products > LED Panel Light > Back-lit 60*60cm 45W led ceiling panel(SAA, C-Tick, TUV,RoHS,GS,CB,KC,GOST)

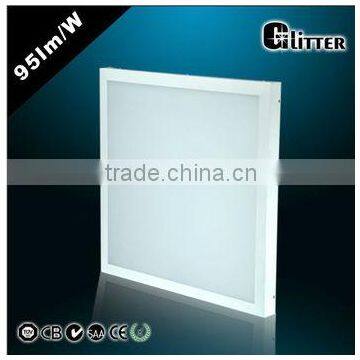

Back-lit 60*60cm 45W led ceiling panel(SAA, C-Tick, TUV,RoHS,GS,CB,KC,GOST)
Negotiable
/ Piece
1 Piece(Min.Order)
- Shenzhen
- T/T Credit Card
You May Like
-
SAA CB GS certified back lighting led panel 600 600 , ceiling light 600x600, 40w,100lm/w,5 years warranty
-
energy saving 60x60 led panel light (SAA, TUV,RoHS, GS,CB)
-
Ressed 60*60cm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)
-
Aluminum 600x600 45W LED Panel light (95lm/W)TUV,CE,GS,CB,SAA
-
24v led panel light 60x60cm(95lm/W, Dimmable/Emergency)TUV,CE,RoHS,GS,CB,SAA,C-Tick
-
suspended 60*60cm 40W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)
Product Details
| LED Light Source | SMD 3014 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 85-265 | Lamp Power(W) | 45 | |
| Lamp Luminous Flux(lm) | 3800-4500 | Lamp Luminous Efficiency(lm/w) | 95 | |
| Color Temperature(CCT) | Other, 2800-6500K | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP 40 | Certification | CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | Glitter | |
| Model Number | PL-0606-4503 |
Product Description
Specifications
Back-lit, 95-100 lm/WDimmable and Emergency (3 hours)
SAA, C-Tick, TUV,RoHS,GS,CB,KC,GOST
Back-lit LED Ceiling Panel : 60*60cm
1- Features and Advantages
• Back-lit, perfect heat dissipation, well protected the chips
• High light efficiency up to 100lm/W by SMD 3014
• Own designed LED Driver (GS,CB,SAA approved), better compatibility and stability
• Intelligent design: Emergency (3 hours)/ Dimmable series (DALI/ 0-10V/ PWM)/ Light +Motion sensor
• No such hazard. No RF or electronic magnetic interference
• 3 yrs warranty
2- Technical Specifications
No. | Parameter | Unit | Description | |
1 | Power supply | V | AC85-265 | |
2 | Current frequency | Hz | 50/60 | |
3 | Working voltage | V | DC24 | |
4 | Power consumption | W | 45 | |
5 | Color temperature | Warm white | K | 2800-3500 |
Neutral white | 3800-4500 | |||
Cool white | 5500-6500 | |||
6 | Lumen | Warm white | lm | >3800 |
Neutral white | >4000 | |||
Cool white | >4300 | |||
7 | Material |
| PMMA, Steel coating | |
8 | Operating temperature | °C | -10~+40 | |
9 | Humidity |
| 10-80% | |
10 | certificate | CE( TUV, ), RoHS, SAA, C-Tick | ||
11 | Luminaires Class | Ⅲ | ||
3- Dimension
4- Installing
5- Application
• Offices
• Kitchens
• Bathrooms
• Library
• Department Store & Boutiques
• Restaurant & Cafeteria
• Conference Rooms
• Hospital & Laboratory
6- Production view
SMT Machine and Welding soldering machine
Test machine: Temp test, Integrating Sphere, Photometer:
7- Package
Package | QTY/CTN | Carton Size | G.W. | Volume Weight |
2pcs | 620*140*620mm | 11.00kgs | 10.76kgs |
