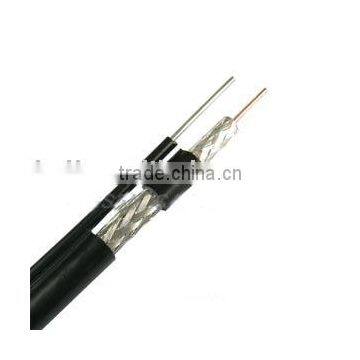

RG11 Coaxial cable with and without messenger(RG11 Cable) used for TV, CATV and SAT TV networks

Specifications

Key Specifications :

                      Center conductor: 1.55mm CCS(21% conductvity)

                      Dielectric: 7.11mm P/FPE/P

                      Shielding foil: Al/pet

                      Outer conductor: 112x 0.12mm AL-Mg

                      Jacket: 10.1mm PVC (black)

                      Messenger:1.83mm(steel messenger)

                      BC: bare copper

                      Al: aluminum

                      PVC: polyvinylchlorid

                      AL/pet: aluminum/polyester tape foil

                      P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin Impedance:     75 ±3 ohms

Notes:

                     Center conductor: TC, BC, CCA and CCS are available

                     Insulation: FPE and HDPE

                     Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available

                     Braiding wire: TC, BC, CCA and Al-MG are available

                     Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available

                     Braiding net: 48, 64, 72, 80, 96, 112, 128, 144, 160, 176 and 192 available

                     Braiding coverage: between 30 to 100% available

                     PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available

Certificates:    ISO9001, CE and RoHS
